ShoreLand'r SRV59TBBAL - Manual (Page 7)

Midwest Industries, Inc. Ida Grove, IA 51445 800.859.3028 www.shorelandr.com
0003249
Page 7 Rev G 04/10/2009
Dealer / Distributor:
Remove all parts banded or taped to the frame assembly.

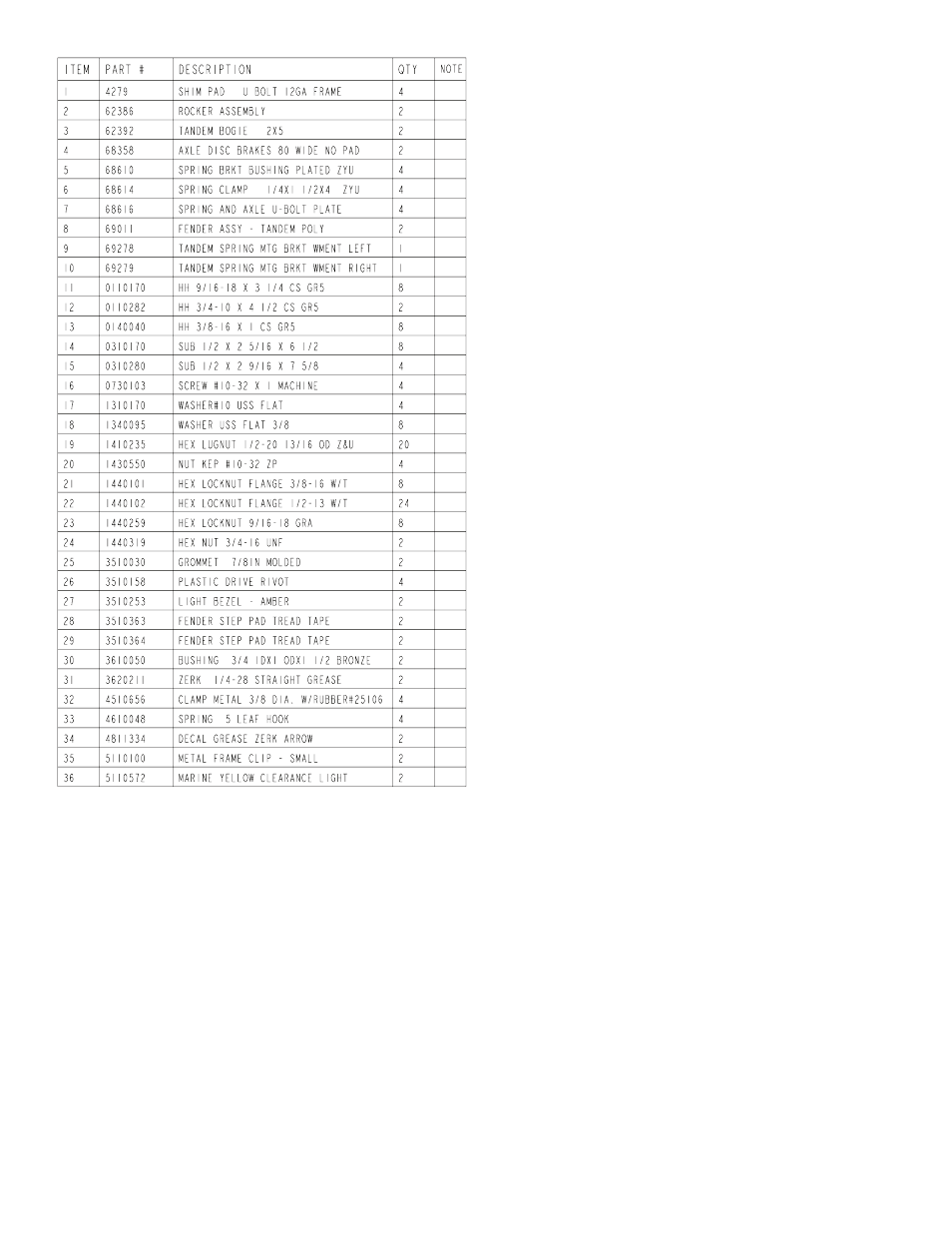

Locate the bulk hardware and sort according to size.
Tongue:
Slide tongue into the tongue cap on the front of the
trailer, align holes and insert ½” x 4” hex bolt through
the tongue cap and secure with ½” flange lock nut.
Pull wires from the rear of tongue and feed them thru the tongue
cover, slide the tongue cover over the brake line tube that ex-
tends from the rear of tongue. Align the hole in the tongue cov-
er, the tongue, and the frame cap insert a ½” x 1-½” hex bolt and
secure with a ½” flat washer and a ½” flange lock nut.
Plug harnesses from the tongue into the matching color har-
ness that extends from each side frame; slide the excess
wire back into the tongue. Very carefully form the brake lines
that extends from the tongue and right side frame until they
are aligned. Remove the plug and cap and screw the two
together. Tighten line securely.
Safety Chains:
Take a ½” x 5” hex bolt slide on a ½” flat washer and one
(1) of the safety chains; insert the bolt into the hole on the
actuator housing through tongue and out other side. Place
the second safety chain on the bolt followed with a ½” flat
washer and secure with a ½” flange lock nut.
Bunk Assembly:
Place the pre-assembled bunks on the preset bunk brackets
and secure with a 3/8” x 1” hex bolt and secure with a 3/8”
flange lock nut. Repeat at each bunk bracket location.
Rockers:
Remove all parts from bag, insert the bushings into the hole
and slide the rocker into the center bracket on the spring
bracket, making sure that the grease zerk points toward the
ground, insert a ¾” x 4 ½” hex bolt from the outside in. Se-
cure with a ¾” lock nut. Repeat process on other side.
Springs/axles:
Mount springs on axle by aligning the stub bolt on the leaf
springs with the hole in the center of the spring pad on
the axle, place a spring clamp on top of the leaf spring.
Slide two (2) ½” x 2-5/16” x 6-½” square u-bolts over the
springs and spring clamp, slide a spring/axle u-bolt pad
over the threaded ends of the u-bolts and secure with ½”
flange lock nuts. Repeat on other side of axle and on other
axle.
Place axle with the brakes to the rear of the trailer, slide a
spring bushing into the rear loop on the spring bracket and
insert a 9/16” x 3-¼” hex bolt from the outside in and secure
with a 9/16” lock nut. Repeat on other side of trailer. Slide
the hook end of the spring over the bushing and swing the
axle up so the hole in the front of the leaf spring aligns with
the rear hole in the rocker, insert 9/16” x 3-¼” hex bolt and
