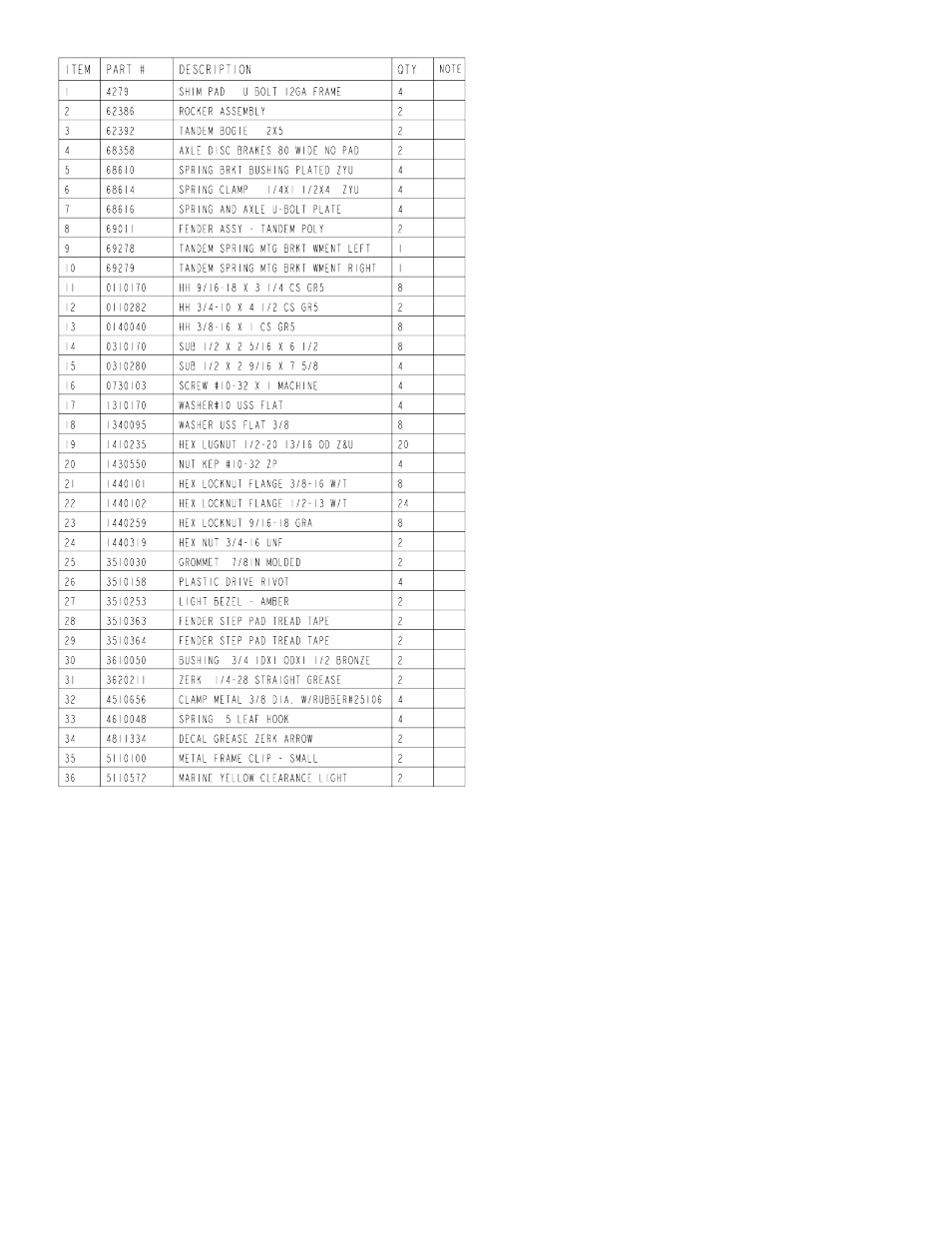

Remove all parts banded or taped to the frame
assembly. Locate the bulk hardware and sort ac-
cording to size.
Tongue:
Slide tongue into the tongue cap on the front of the
trailer, align holes and insert ½” x 4” hex bolt through
the through tongue cap and secure with ½” flange
lock nut.
Pull wires from the rear of tongue and feed them thru
the tongue cover, slide the tongue cover over the
brake line tube that extends from the rear of tongue.
Align the hole in the tongue cover, the tongue, and
the frame cap insert a ½” x 1-½” hex bolt and secure
with a ½” flat washer and a ½” flange lock nut.
Plug harnesses from the tongue into the matching
color harness that extends from each side frame;
slide the excess wire back into the tongue. Very
carefully form the brake lines that extends from the
tongue and right side frame until they are aligned
remove the plug and cap and screw the two to-
gether. Tighten line securely.
Safety Chains:
Take a ½” x 5” hex bolt slide on a ½” flat washer
and one (1) of the safety chains; insert the bolt into
the hole on the actuator housing through tongue
and out other side. Place the second safety chain
on the bolt followed with a ½” flat washer and se-
cure with a ½” flange lock nut.
Bunk Assembly:
Place the pre-assembled bunks on the preset bunk
brackets and secure with a 3/8” x 1” hex bolt and
secure with a 3/8” flange lock nut. Repeat at each
bunk bracket location.
Rockers:
Remove all parts from bag, insert the bushings
into the hole and slide the rocker into the center
bracket on the spring bracket, making sure that
the grease zerk points toward the ground, insert a
¾” x 4 ½” hex bolt from the outside in. Secure with
a ¾” lock nut. Repeat process on other side.
