Audio inputs, outputs, and mic power indicators, Remote control ports, Front panel configuration port – Extron Electronics MPX Plus 866 A Rev. A User Manual

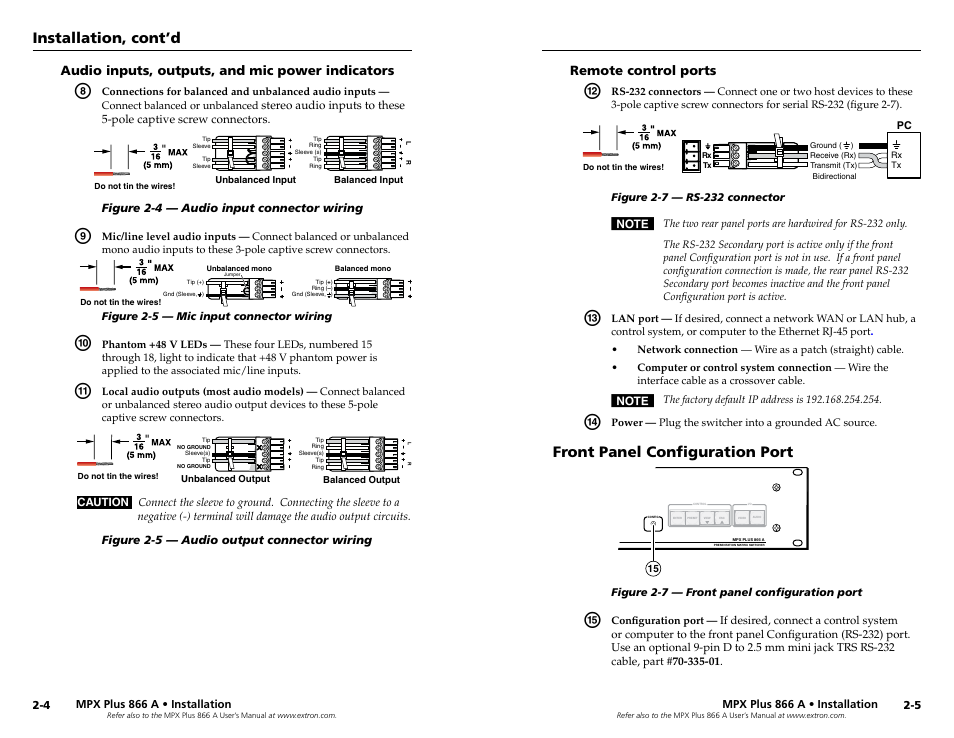

Page 9: Front panel configuration port, Installation, cont’d
