ShoreLand'r CL2022 - Manual (Page 4)

with two (2) pins and snap rings provided with the actuator.
Secure the actuator-housing unit to the front of the tongue
using the three (3) 1/2” X 4” hex bolts and 1/2” flange lock
nuts. Using a 1/2” X 5” hex bolt on the lower right mounting
hole on the tongue, secure the safety chain. Place a 1/2”
flat washer on the 1/2” X 5” hex bolt followed by one (1)
safety chain and insert into the actuator housing unit and
tongue. Place the second safety chain on the bolt followed
by a 1/2” flat washer and 1/2” flange lock nut. Tighten.
Brakes:
Refer to the brake manual for service and maintenance.
THIS TRAILER SHOULD NEVER BE OPERATED
WITHOUT THE LIFT TUBE STOP PROPERLY IN-
STALLED.
The purpose of the lift tube stop is to stop the forward
movement of the axle assembly once the trailer has
been completely raised. Due to the mechanical advan-
tage of the winch and cable system, high levels of
torque can be generated on the complete system.
Continuing to crank the winch beyond this point will
generate high levels of torque in the frame and may
cause severe damage and possible failure to the trailer
frame and will void all warranty.
NOTE: The law requires that the white ground wire on
both the tongue wire harness and vehicle harness be
properly grounded to the respective trailer and vehicle
frames. Assembly is complete.
Note that the taillights should be positioned behind the
pontoon tubes so that all functions of the light are
visible.

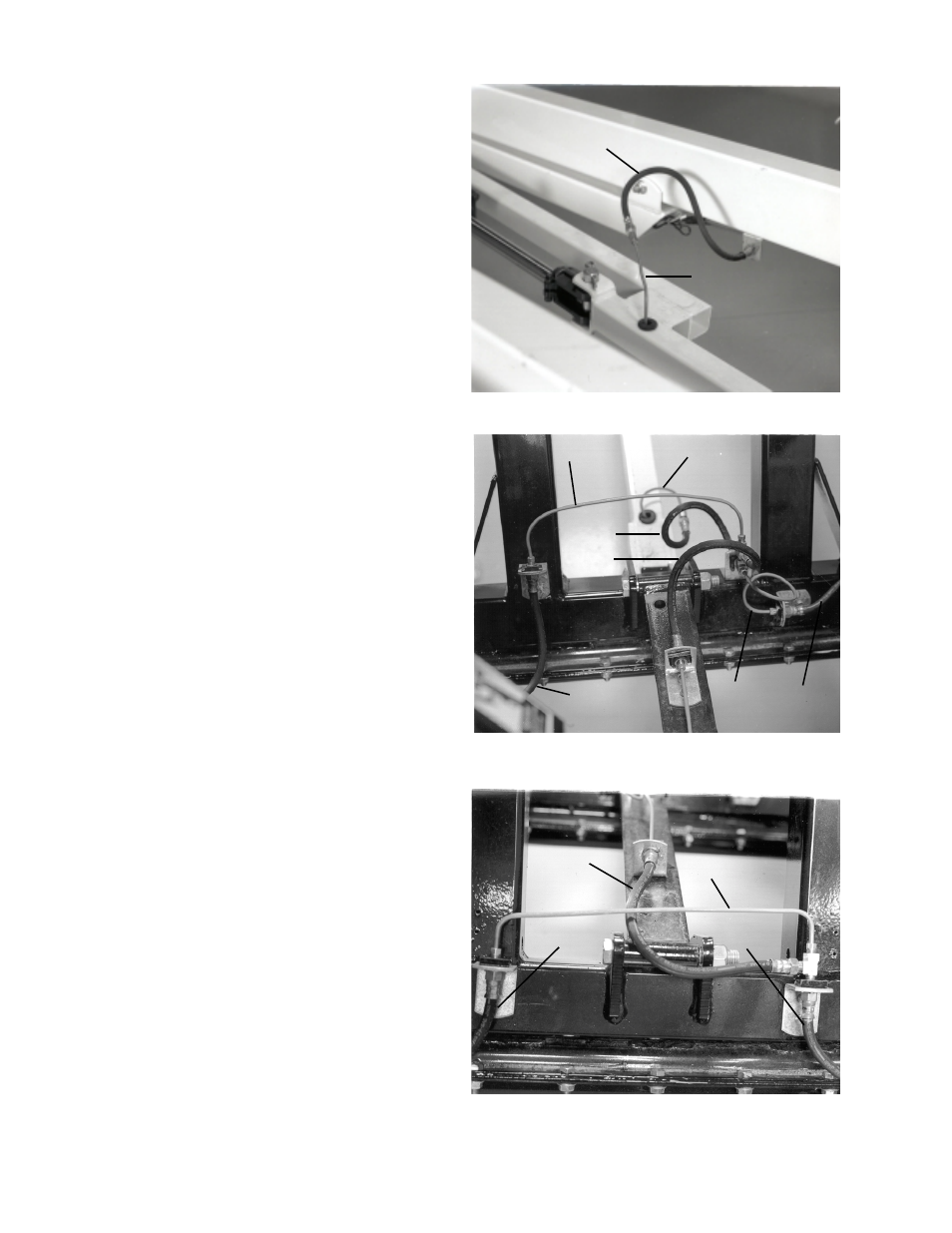

Brake Assemblies
A 4510511 18” Brakeline Hose
B 4510512 13” Brakeline Hose
C 61246 12” Brakeline Assembly
D 61238 15-1/2” Brakeline Assembly
E 61340 144” Brakeline Assembly
(Tongue Assembly)
61249 107” Brakeline Assembly
Made in the USA Midwest Industries, Inc. Ida Grove, IA 51445 (800)859-3028 0002594
www.shorelandr.com REV A 8/29/00
Lift Tube to Tongue Assembly
Front Axle
Rear Axle
A
E
E D
B
B
B
C
B
B
D
B
B
