DVI DA2 and DVI DA4 • Introduction
Introduction
1-2
About This Manual
This manual describes the installation, operation, and
specifications of the Extron DVI DA2 and DVI DA4 Distribution
Amplifiers.
Unless stated otherwise, all references to the "distribution
amplifier" or "the unit" in this manual refer to the features or
operation of both models.
About the DVI DA2 and DVI DA4
The Digital Visual Interface (DVI) Distribution Amplifiers (DAs)
have one input and either two (DVI DA2) or four
(DVI DA4) outputs.
Both distribution amplifiers accept one single link DVI-D input
and drive two (DVI DA2) or four (DVI DA4) single link DVI-D
output signals.
In both models, Output 1, is used for Digital Display Channel
(DDC) reference.

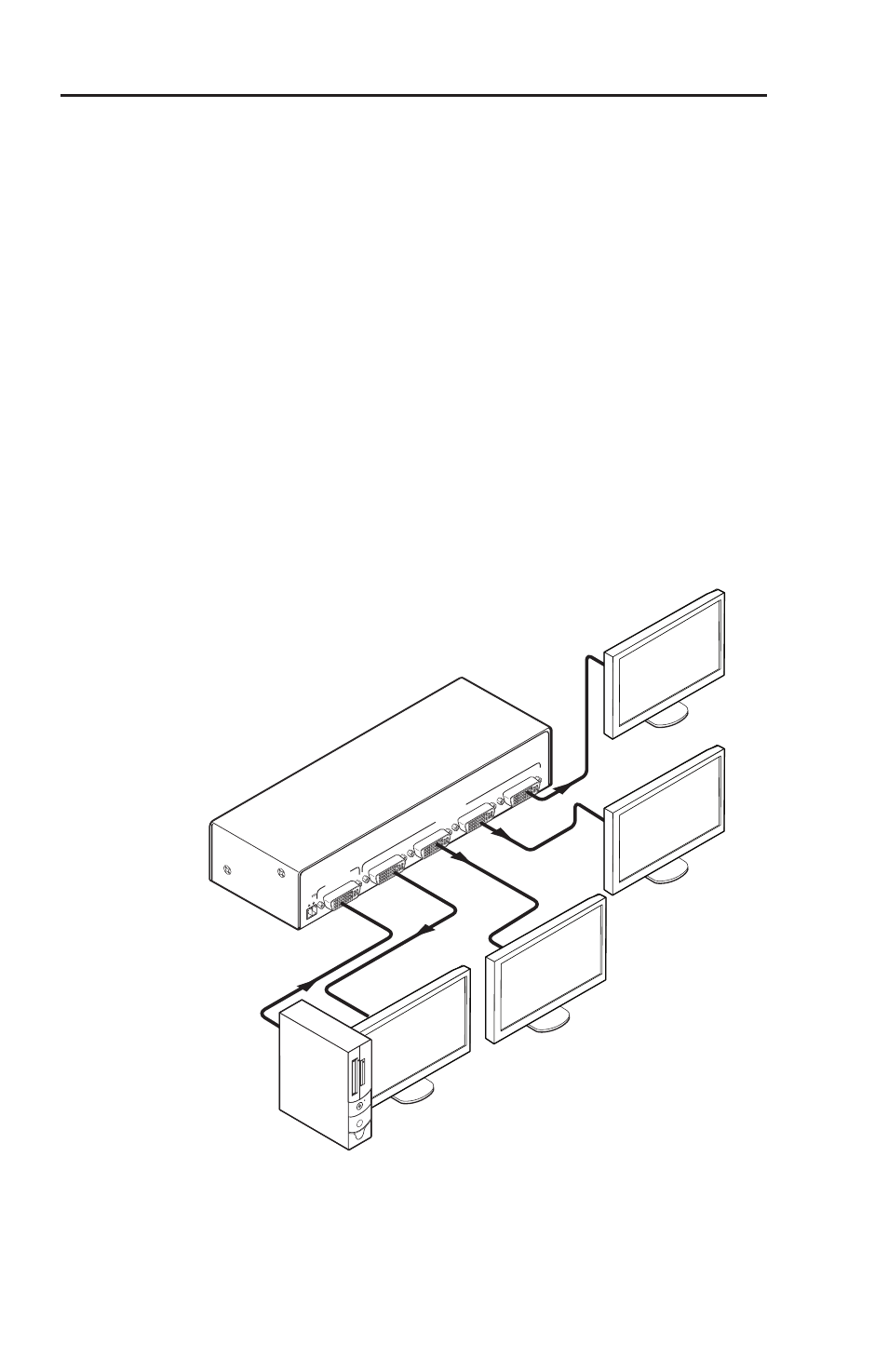

12V
0.4
A M
AX
PO
WE
R
DV
I-D
IN
PU
T
DV
I-D
OU
TP
UT
1
2
3
4
DV
I D
A4
PC
“Local Output”
Monitor
LCD
Flat Panel
Displays
Extron
DVI DA4
DVI Distribution
Amplifier
