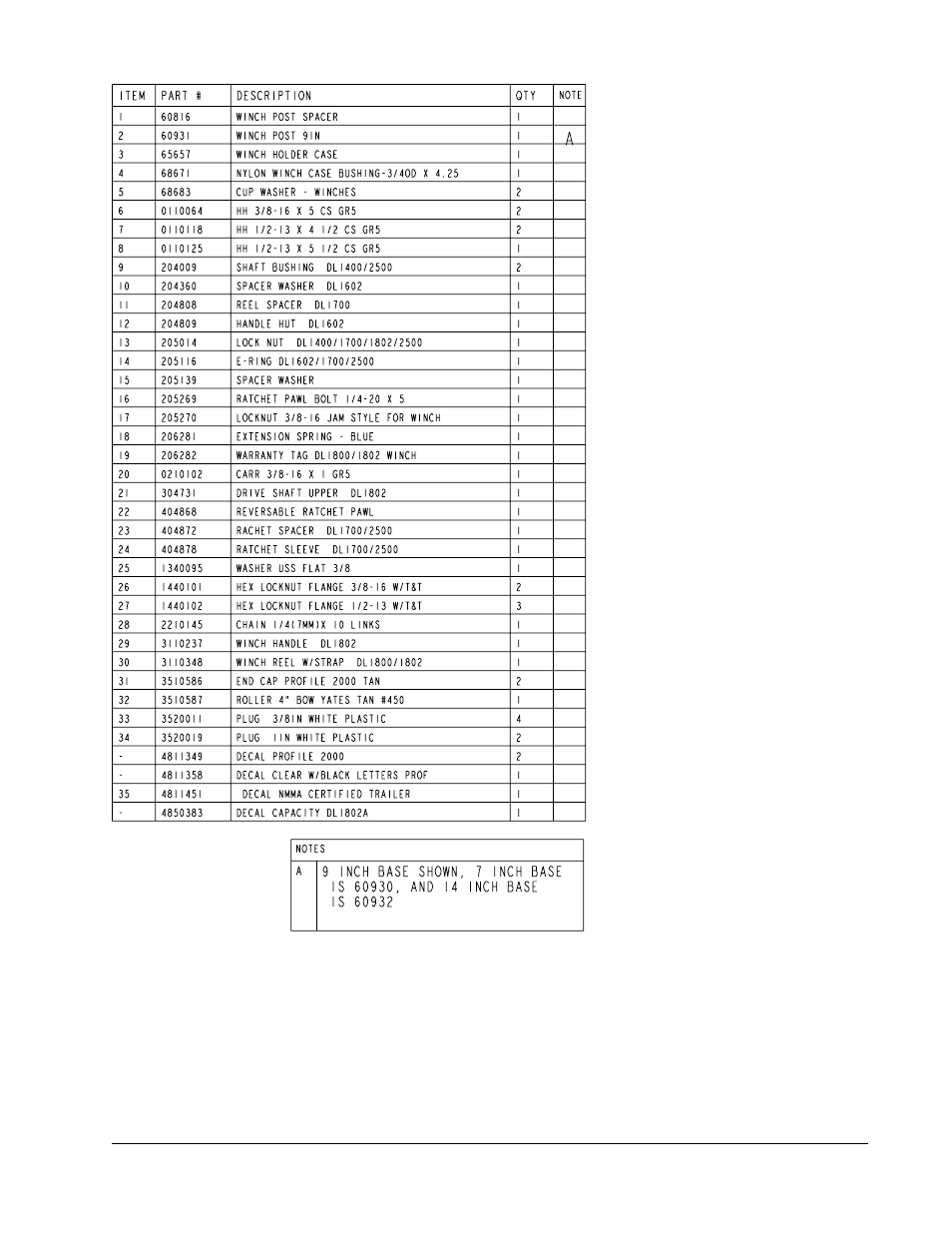

WINCH POST ASSEMBLY
The height that the bow eye is placed
in your boat will determine the length
winch post required. Once this is de-
termined, attach the winch base to
the tongue with three 1/2” x 4-1/2”
carriage bolts and lock nuts.
Align the holes in the Profile 2000
mounting channel with the holes in the
top of the winch base. Attach the front
of the winch head mounting channel
to the base by placing a 1/2” x 4-1/2”
hex bolt through the hole closest to
the front of the winch base. Secure
with a lock nut. Do not tighten.
Note that the winch head can now
be rotated either up or down. Iden-
tify the correct hole combination to
use to position the bow eye roller
just above the bow eye of your boat.
When determined, secure in this posi-
tion by placing the bushing as shown
in Diagram C inside the winch base
so it aligns with the hole just identi-
fied for the proper adjustment. Insert
another 1/2” x 4-1/2” hex bolt through
the determined mounting hole in the
mounting channel and winch base
making sure the bolt passes through
the bushing as well. Secure with a
1/2” lock nut. Tighten all bolts.
