Midwest Industries, Inc.

Ida Grove, IA 51445

800.859.3028

www.shorelandr.com

0003461

Page 3

FINAL ASSEMBLY INSTRUCTIONS

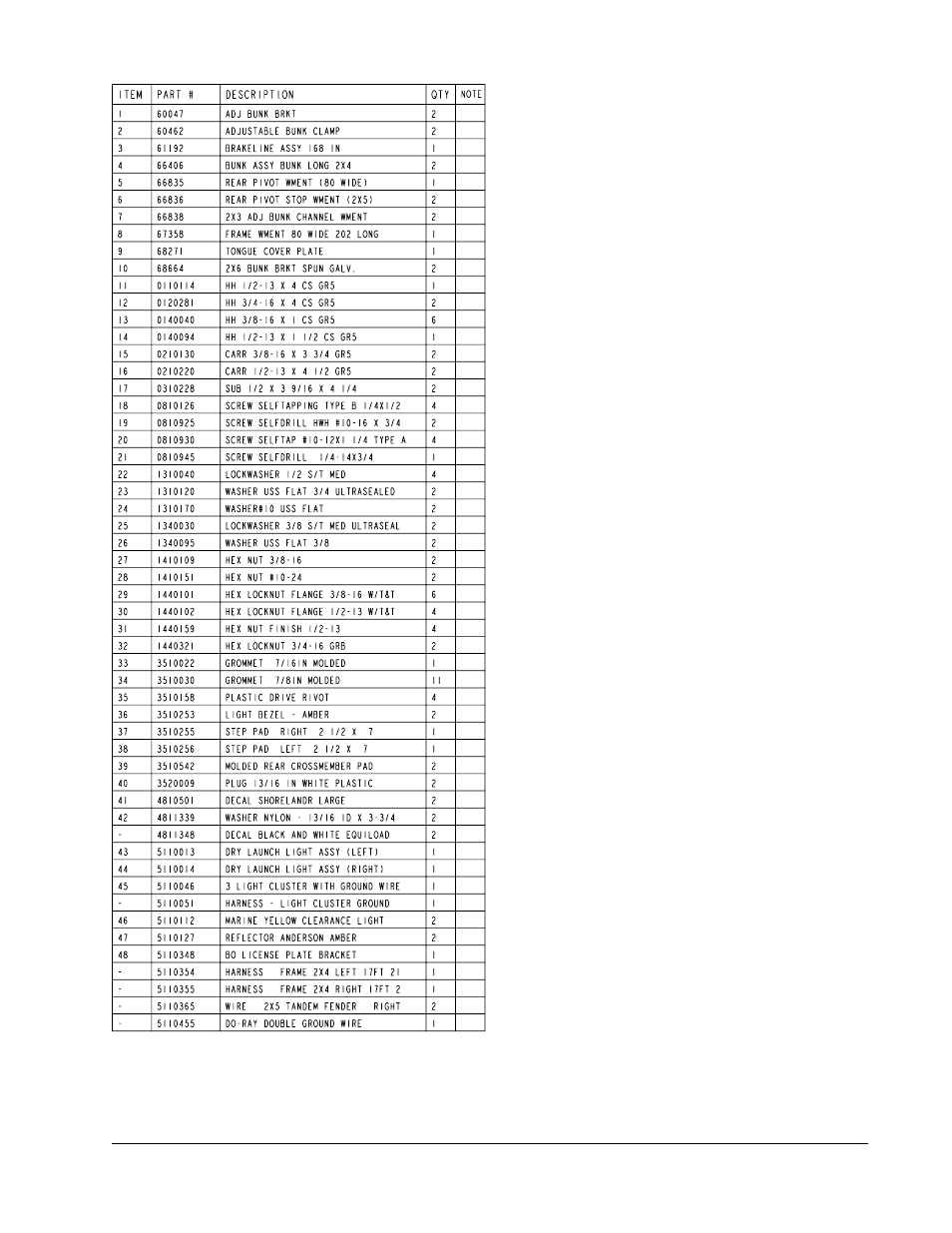

Remove the hardware bag from the frame, remove

parts and sort by size.

B-SERIES BUNK ASSEMBLY

Locate the two 2 x 6 bunk assemblies. Note that the

bunk mounting brackets are assembled to the bunks

at the factory. Place the end with the two brackets to-

wards the rear of the trailer. Place the assembly on the

equiload bunk arm and secure by placing a 3/8” x 1”

hex bolt through the bracket on the bunk and the ear

on the end of the equiload arm.

Secure in place using a 3/8” lock nut. Repeat on the

other end of the arm. (See Diagram A).

Place the other end of the bunk in the bracket installed

on the front cross member. Note that this bracket is

not attached to the bunk because the trailer can be ad-

justed to two different lengths. Once the proper posi-

tion for the rear crossmember is determined, the front

of the bunk can now be attached to the bracket using

two- No. 10 x 1-1/4” self tapping screws as shown in

Detail B.

The 3/8” x 1” bolts attaching the bunks to the equiload

arms and front bunk bracket can be tightened but not

over tightened.

The bunks must be allowed to rotate slightly to con-

form to the boat bottom once the boat is set on the

trailer.
