Chapter 3
71

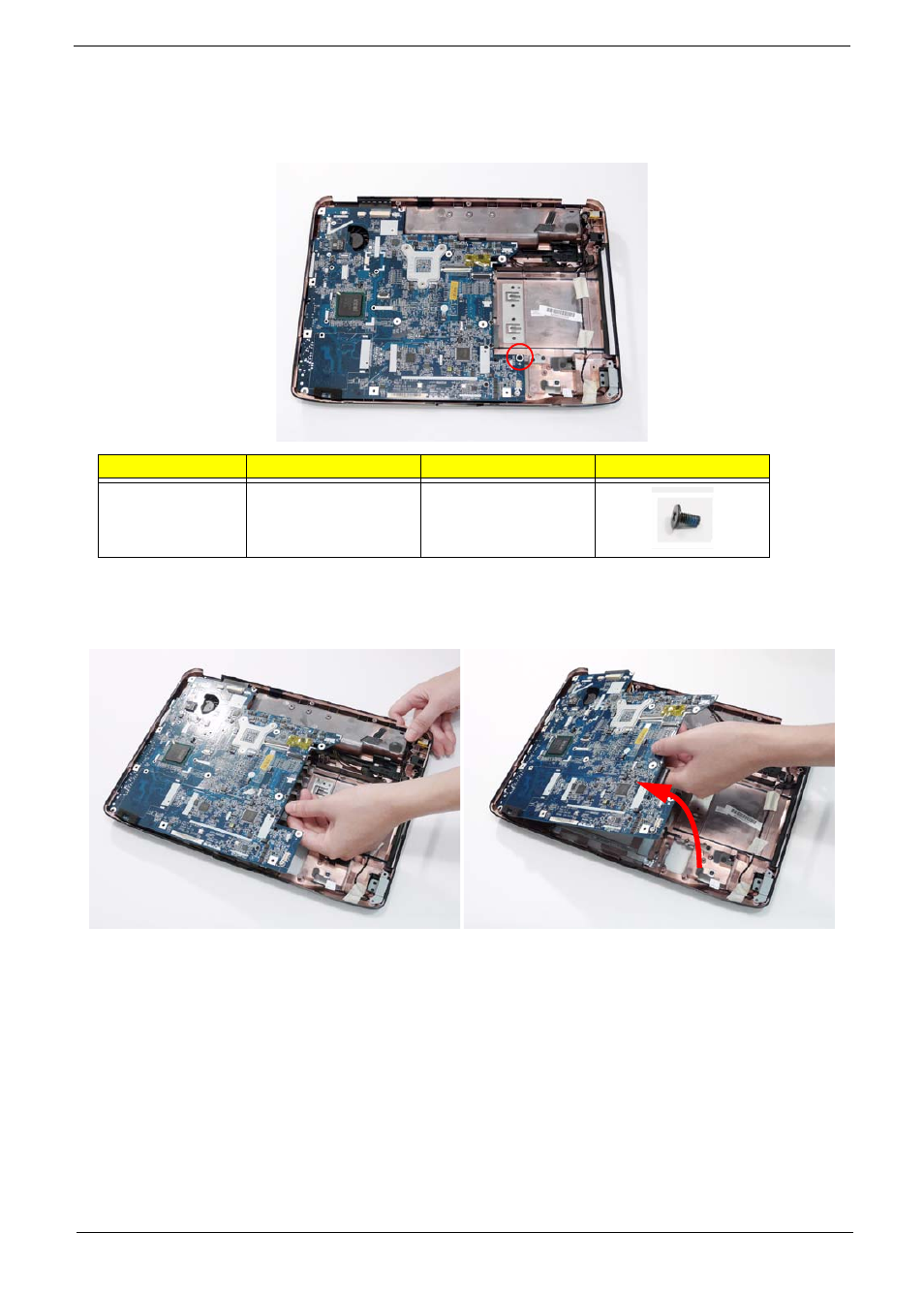

Removing the Main Board
1. See “Removing the Upper Cover” on page 62.
2. Remove the securing screw from the Mainboard.
3. Remove the main board, rightside first, as shown.
IMPORTANT:The DC IN cable is still attached to the mainboard at this stage. Do not remove the mainboard
from the chassis completely.
4. Turn the Mainboard over to expose the DC IN connector.
Step
Size
Quantity
Screw Type
Mainboard
M2.5*5
1
