Chapter 6

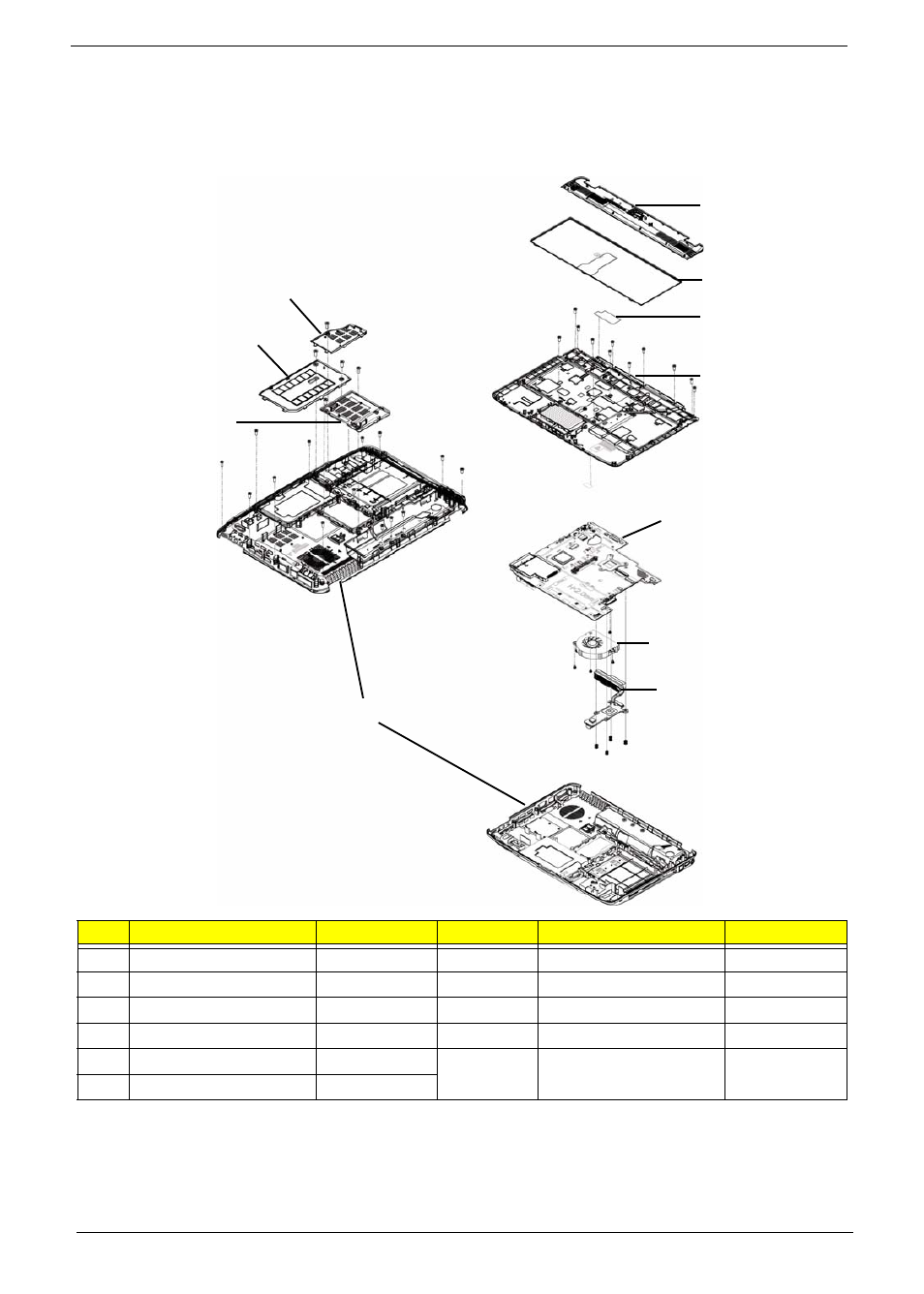

eMachines D720/D520 Exploded Diagrams
Main Assembly
No.
Description
Acer P/N
No.
Description
Acer P/N
1
Mini Door
7
Power Board
2
HDD Door
8
Upper Case
3
Ram Door
9
Mainboard
4
Lower Case
10
CPU Fan
5
Middle Cover
11
Heatsink
6
Keyboard
1
2
3
4
5
6
7
8
9
10
11
