Cable Cubby ® Products • Packaging for Shipment
Packaging for Shipment, cont’d
Cable Cubby ® Products • Packaging for Shipment B-4 B-5

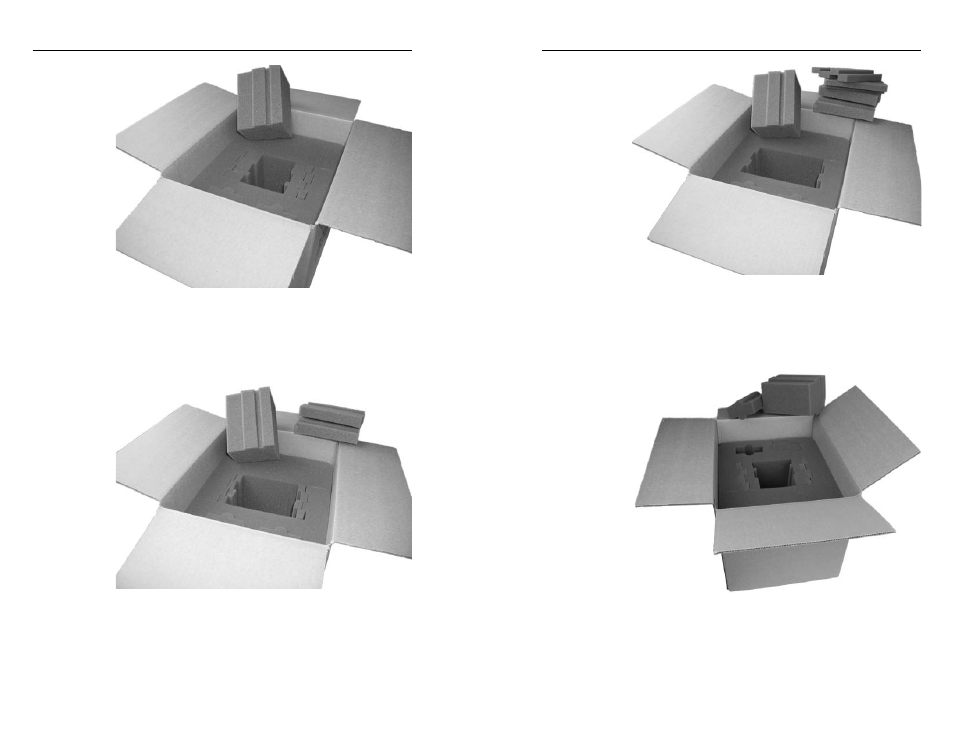

Figure B-3 — Removing center foam
6 . CC 600, 800 only — Remove and discard the inner side
foam sections of the cushion in the carton (fi gure B-4). If
you are returning a Cable Cubby 600 model
, this is the
correct fi t. Proceed to step 8.
Figure B-4 — Removing inner side foams
7 . CC 800 only — Remove and discard the outer side foam
sections of the cushion in the carton (fi gure B-5). This is
the correct fi t for a Cable Cubby 800 model.
Proceed to
step 8.
Figure B-5 — Removing outer side foams
8 . If you will not install a replacement Cable Cubby in this
location
, remove and retain one of the small foam sections
to the front or rear of the cubby opening in the cushion in
the carton (fi gure B-6).
Figure B-6 — Removing screw clamp area foam
9 . CC 300, 600, 800 only — Place the two screw clamps from
step 2 into the screw clamp opening in the foam cushion in
the carton.
