Headlamp Adjustment
The headlamp should shine straight ahead of the
motorcycle. The top of headlamp high beam
should be just below the center of the lamp at a
distance of 25 feet (7.62 m). The low beam pattern
spreads farther right of center than the high beam
(U.S. & Canada).
1. Check and adjust the tire pressure (page 119)
2. Verify rear suspension ride height
measurement is at specification (see page 95)
before adjusting headlight.
3. Straddle the motorcycle in an upright position
and sit in the operator’s seat.
4. Set the ignition switch to the ON position and set the headlamp to
High beam. Check the headlamp for correct aim.
5. To adjust the headlamp vertically, loosen pivot nut (1) while holding
bolt. Aim headlight and hold in position while tightening nut.
Torque: 35 ft-lbs (47.5 Nm)
6. To adjust the lamp horizontally, loosen the nut (2), aim headlight and
hold in position while tightening nut.
Torque: 28 ft-lbs (38 Nm)
7. Verify proper headlamp adjustment and re-adjust if necessary.

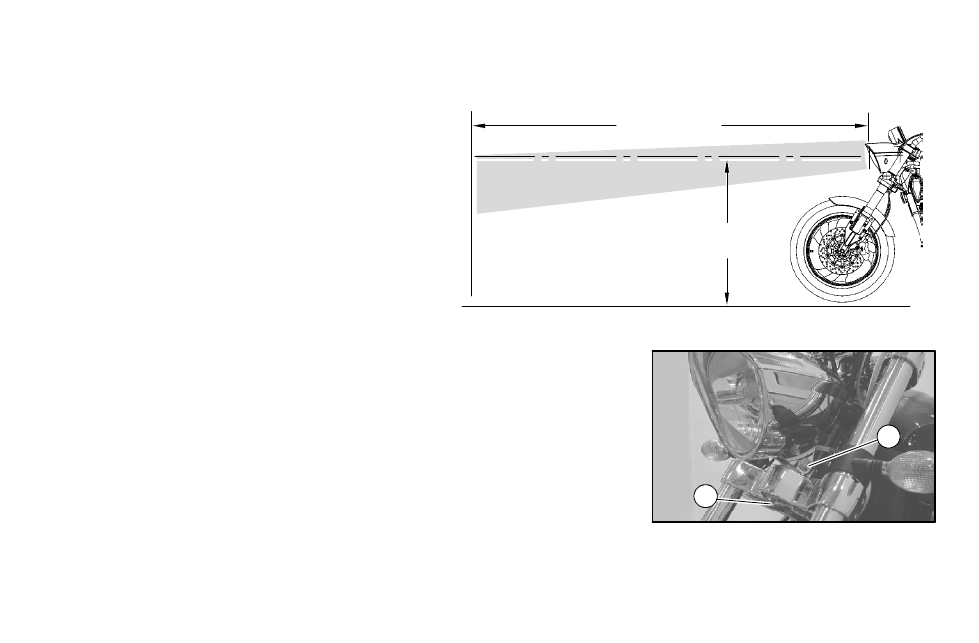

25 feet (7.62 m)
Center of Headlamp
High Beam
1
2
