118
MAINTENANCE
Lights

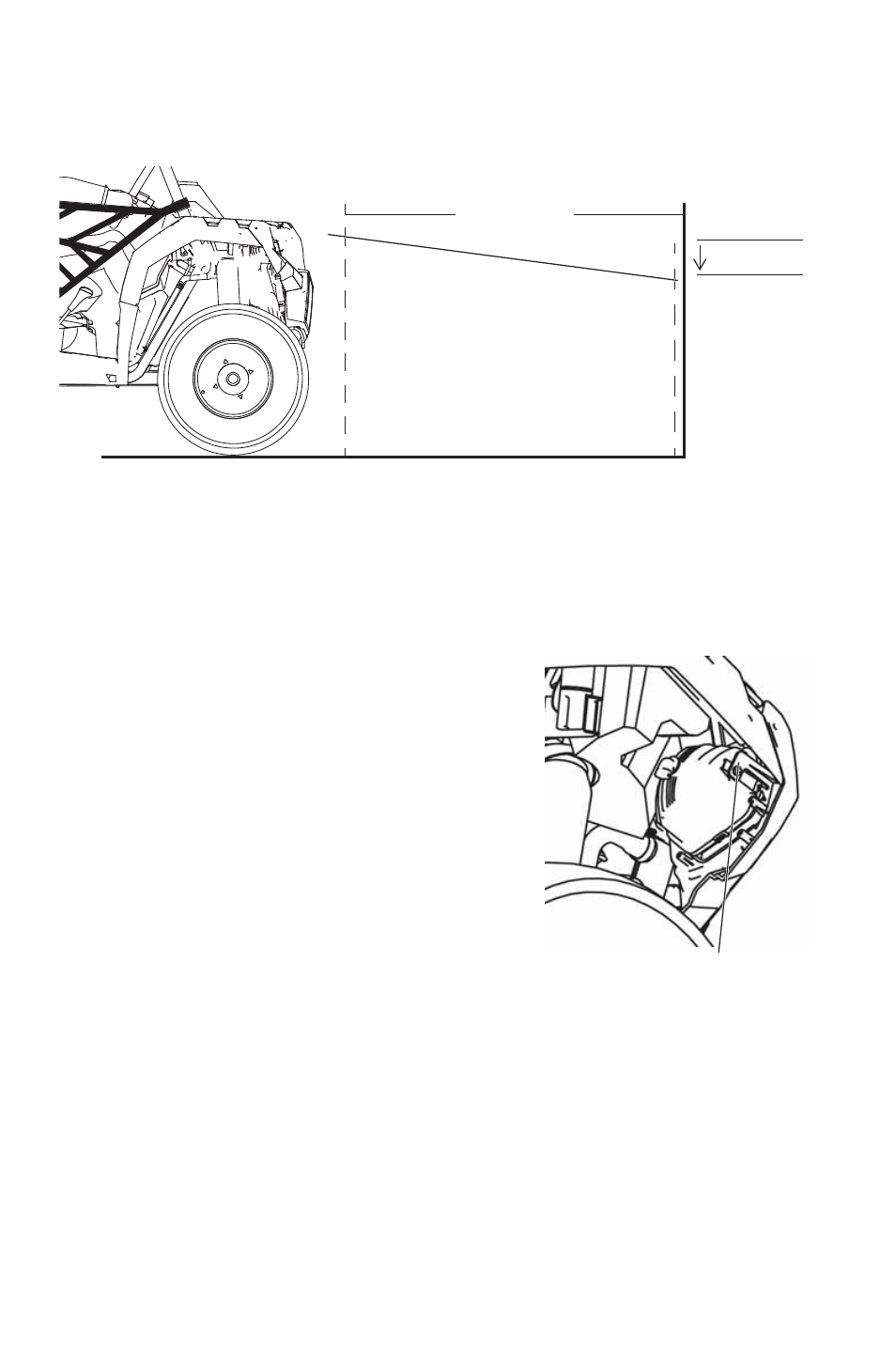

Headlight Beam Adjustment
1. Place the vehicle on a level surface with the headlight
approximately 25 ft. (7.6 m) from a wall. Place the transmission in
PARK.
2. Measure the distance from the floor to the center of the headlight
and make a mark on the wall at the same height.
3. Apply the brakes. Turn the ignition
switch to the LIGHTS ON position.
4. Observe the headlight aim. The most
intense part of the headlight beam
should be aimed 8" (20 cm) below the
mark placed on the wall in step 2.
Include the weight of a rider on the seat
while performing this step.
5. If adjustment is necessary, turn the
headlight adjustment screw to adjust the
beam.
6. Repeat steps 4-5 until the beam is
properly adjusted.
25 ft.
(7.6 m)
8" (20 cm)
X X
Adjustment
Screw
