HDS-1616 Rev. 0
7
o Universal Control Panel to control all devices above, with user configurable default level.

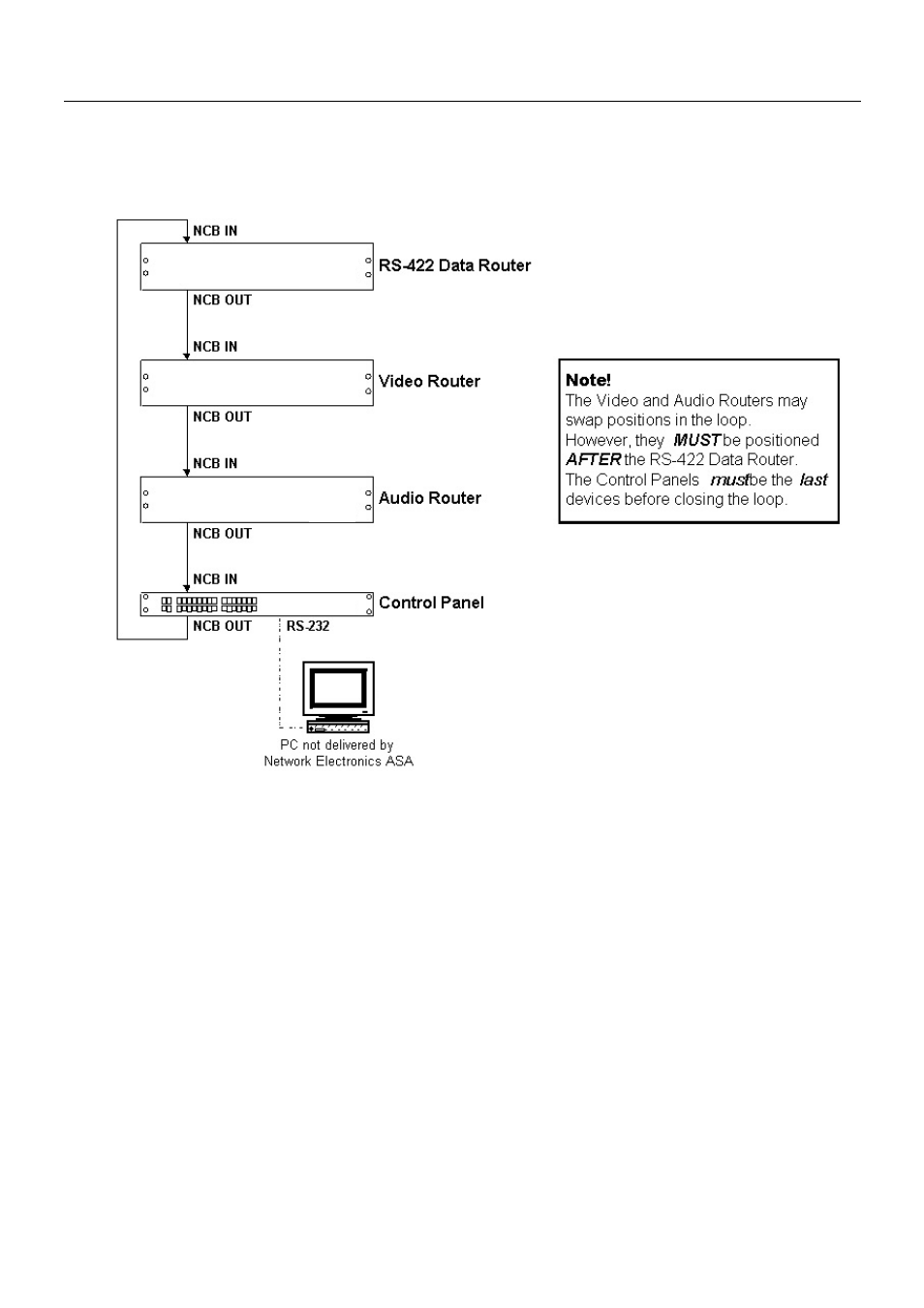

• Pay attention to the figure below, in order to achieve full controllability of all devices in the loop.
Triton - RCS
• Complete the Control loop, by connecting all Control bus connections to all Triton devices, before
powering up any Triton device.
