HDS-1616 Rev. 0
2

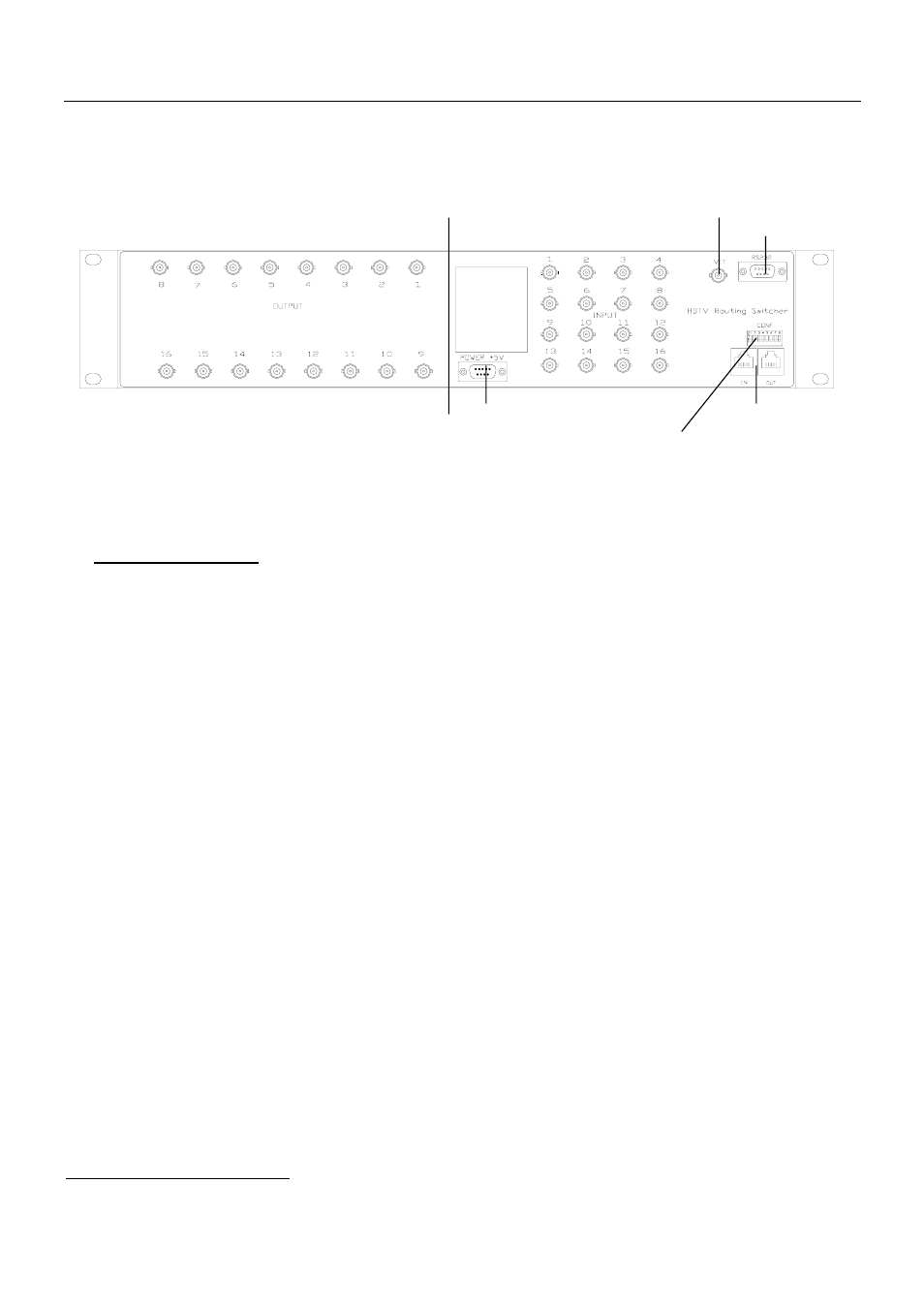

1.2 Connection drawing
Vertical interval trigger
Video output section Video input section RS-232 port
Power connector NCB 1
Configuration Switch
2 Power connection
Do not connect mains to the desktop power supply before connecting the power supply to the
router.
Connect the DB9 female connector from the desktop power supply to the main unit. Tighten the screws to
assure a proper contact. To connect mains to the desktop power supply you need a mains cord with IEC
320 connector.
The HDS-1616 is normally delivered with the desktop power model AC ±5V / 30W. Upon customer
request, HDS-1616 can also be delivered with DC ±5V / 30W, which may be fed by a 36 – 72 VDC
mains power source. A Frame mounted power supply solution is also available.
Please refer to the latest Triton Product Catalogue for power supply types, or call Thomson Grass Valley
for this information.
If any third party power supply is used the HDS-1616 router requires +5V DC with a minimum current of
3.0A. The following pin-out is used on the DB9 male power connector:
Pin 1 and 9 0V
Pin 2 and 5 +5V
1 Network Control Bus. The protocol of this bus is equal, and compatible to the MIDI bus protocol.
