Pin-out and cable type, Rj45 connectors, Pin din connectors – Grass Valley TTN-HDS-1616 User Manual
Page 13: 1 rj45, Connectors
Text mode
Original mode

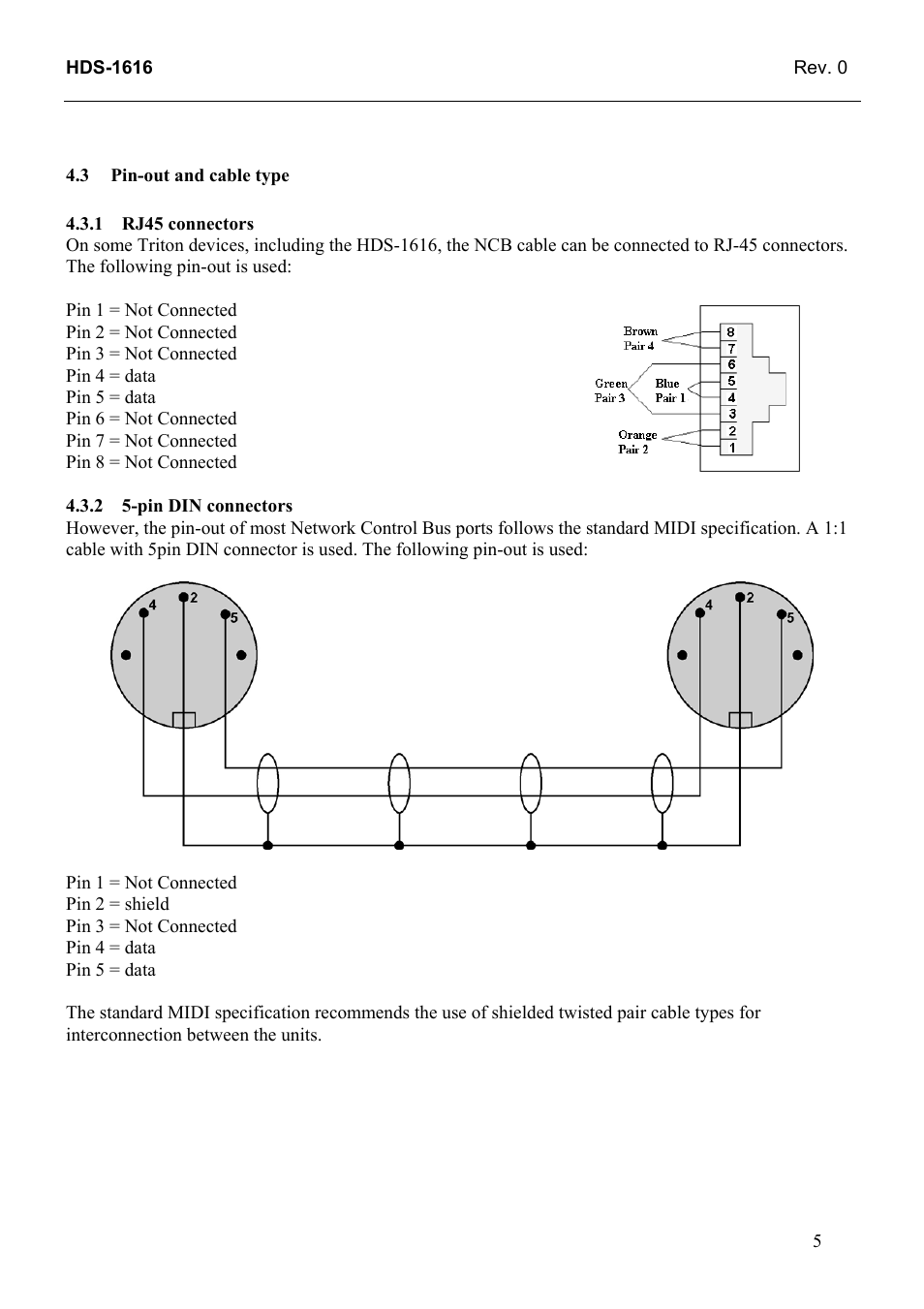

Pin-out and cable type, Rj45 connectors, Pin din connectors | 1 rj45, Connectors | Grass Valley TTN-HDS-1616 User Manual | Page 13 / 24
