Fiber ADAP Power Supplies
The TelePort 3G requires a power supply providing 12-18 volts at 1.5 Amps. The power
supply recommended for the unit is the ADAP-AC-04-X (X: the specific geography
required). You can use any power supply meeting the required specification and providing
power through an XLR-4 Female connector. Please contact Grass Valley (see
Contact Us on
page 33) or your Grass Valley dealer for more information.
You can also use direct wire power connections from a customer provided power source
with the Terminal Block power connections on the back panel.

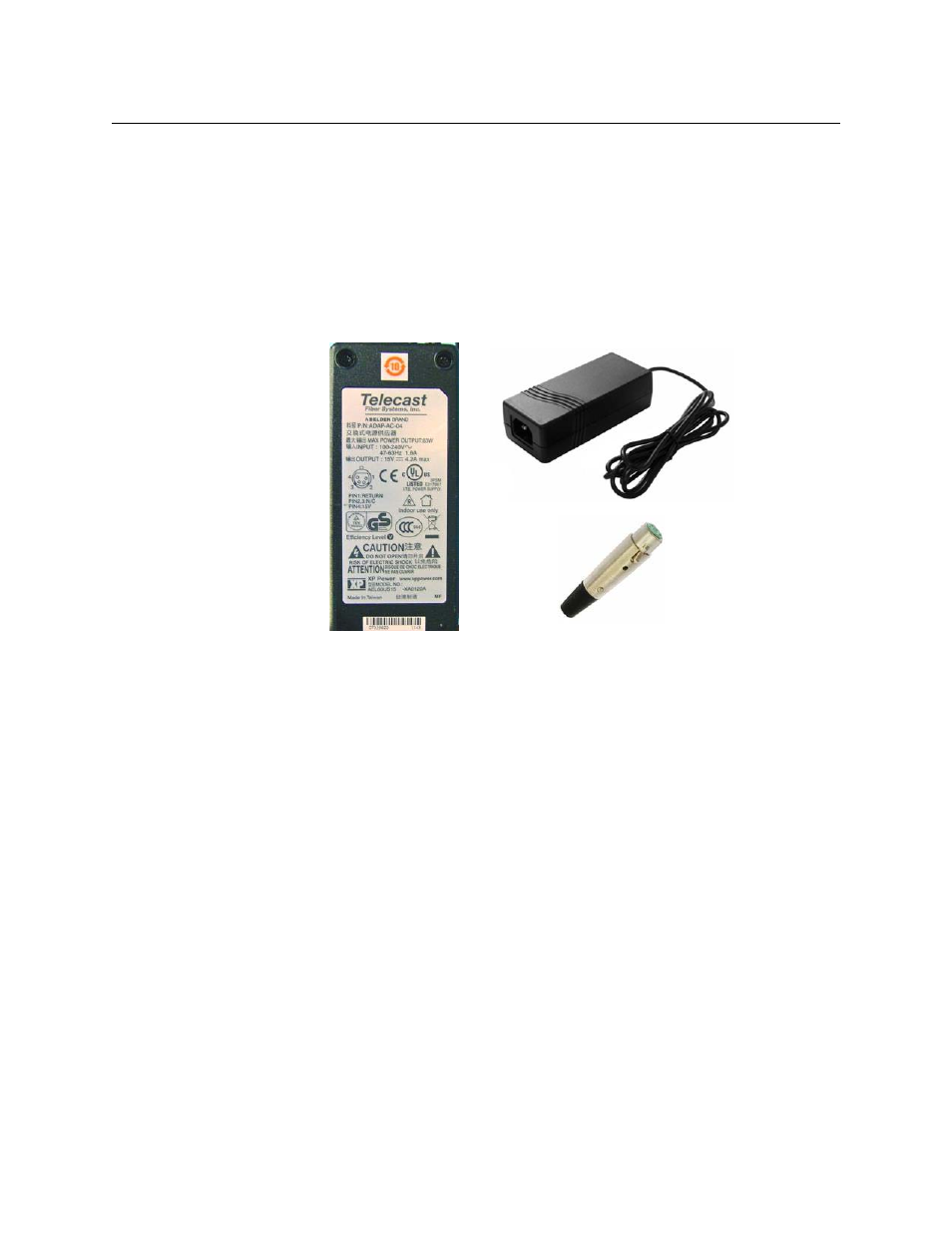

Fig. 3-13: Power Supply
Supplied with 4PIN XLR/A4F connector for the power plug on the TelePort 3G unit ( ADAP-
AC-04).
