SHED-C
User Guide
SHED-BS
Description
The new SHED-BS is a universal model that can be configured manually, using four
switches, to support the following cameras:
• SONY
• HITACHI
• IKEGAGMI
• PANASONIC 931B
• PANASONIC 3500
• PANASONIC 3800

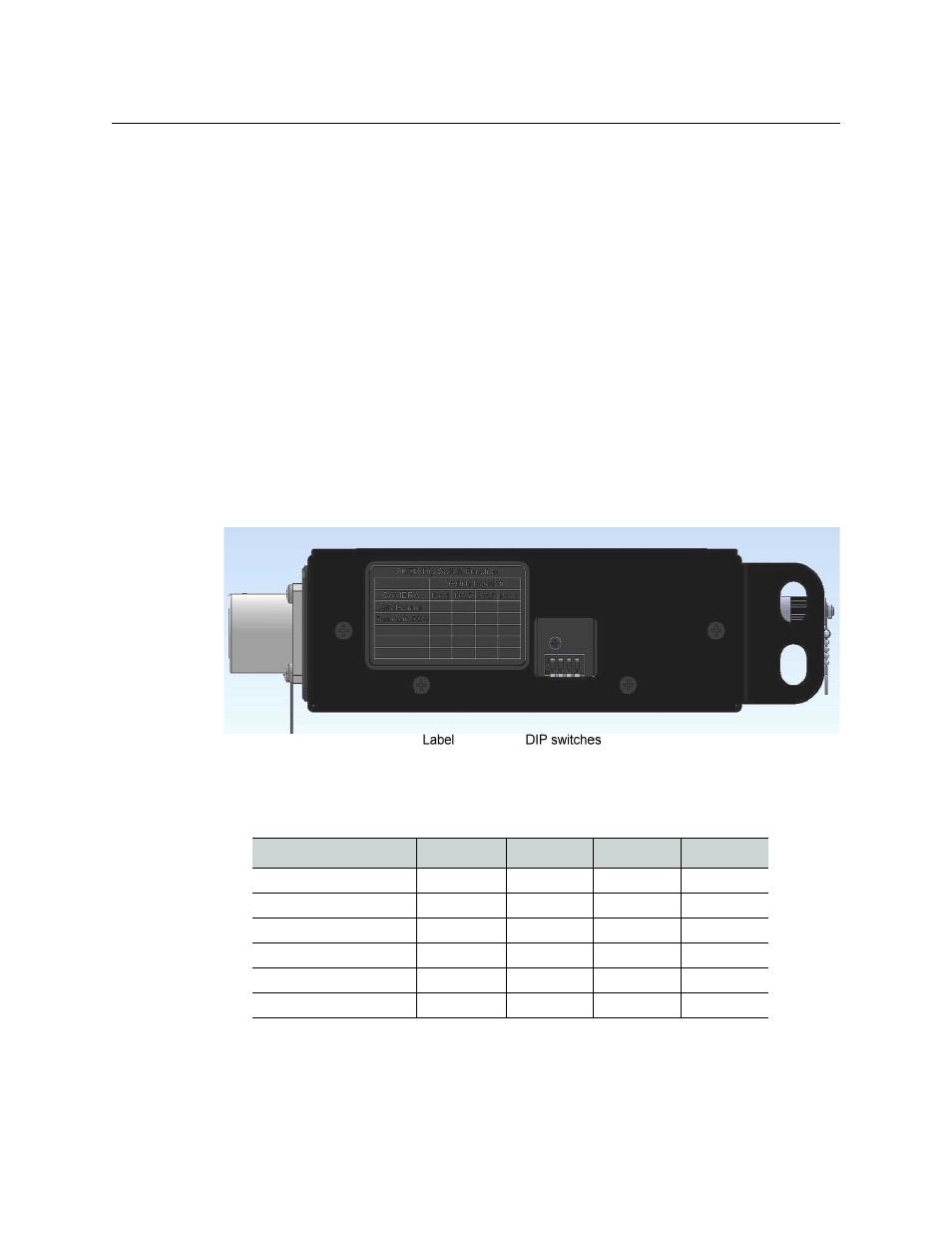

The four DIP switches, and a label showing the switch positions for the various supported
cameras, are located on the side of the SHED-BS case, as shown in the figure.
• PANASONIC 3800
The camera selection switches, along with a label showing switch positions for the various
supported cameras, are located on the case as shown in the figure.
The DIP switch positions for the cameras, as shown on the label, are as follows:
Camera
Sw 1
Sw 2
Sw 3
Sw 4
Sony
ON
ON
ON
OFF
Hitachi HD5000
OFF
ON
ON
OFF
Ikegami
ON
OFF
ON
OFF
Panasonic 3500
OFF
OFF
ON
OFF
Panasonic 931B
ON
ON
OFF
OFF
Panasonic 3800
OFF
ON
OFF
OFF
