Installation Instructions

Analog Composite Output Installation

5

2. Remove the circuit board panel (bracket) that covers the rear panel slot (J11

or J12) that you selected for this application.

3. Slide the circuit board down into the selected position (J11 or J12). Some

resistance will be exerted by the contact pressure of the connectors. Take
care not to exert extreme force to seat the circuit board.

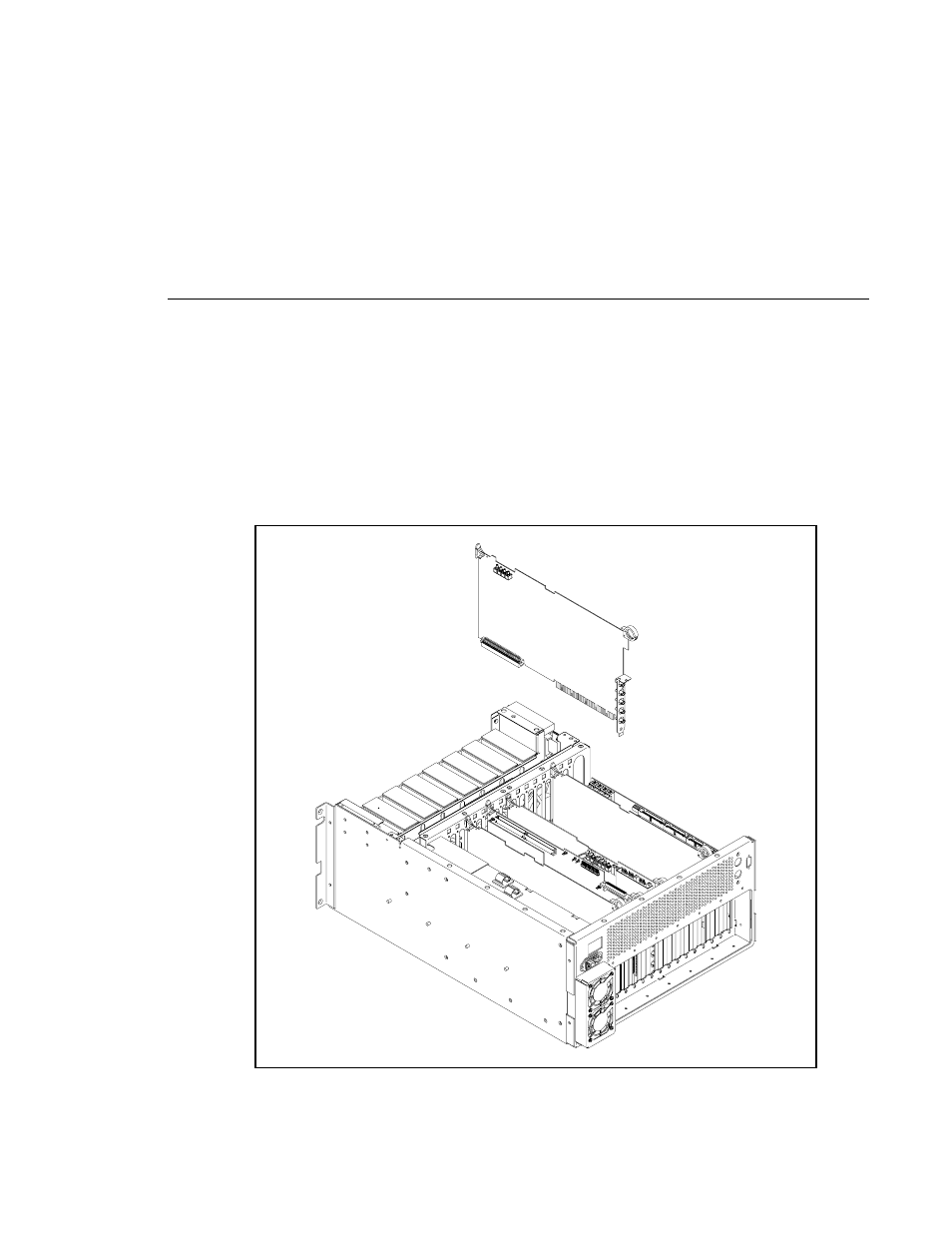

Figure 4. Partial PDR 100 Showing the Analog Composite Output Circuit Board

9500-1
