NV9575-VF Tally Interface • User’s Guide 9
1. NV9575-VF
Initial Setup

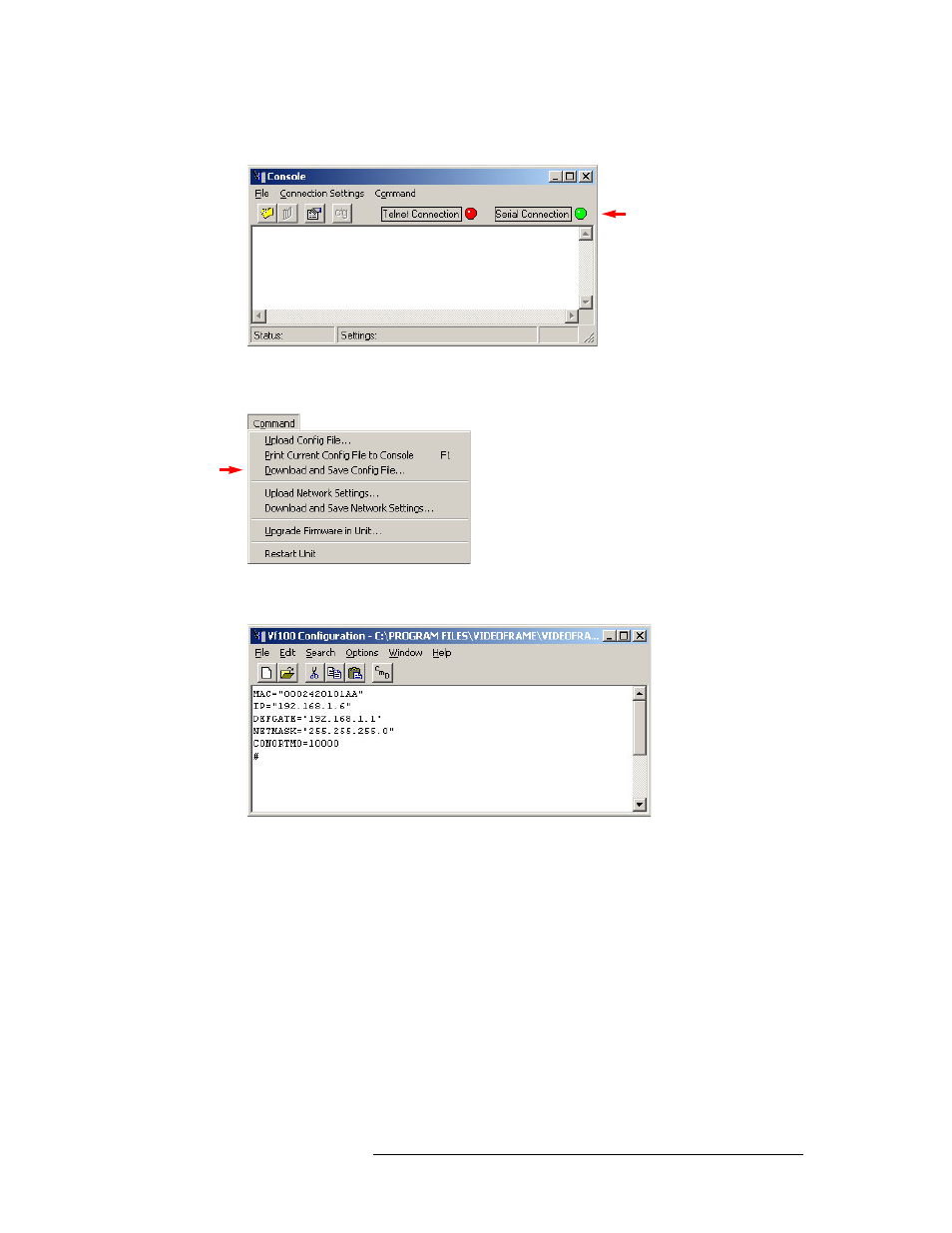

4 Choose ‘Console (CMD)’ from the ‘Window’ menu to open the “console”:
Click the ‘Serial Connection’ button to make it turn green. This activates serial communication.
5 Choose ‘Download and Save Config File...’ from the Command menu:
This command copies the configuration from the NV9575-VF to a file in your PC. The file con-
tents appears in the Videoframe Configuration window.
Modify the configuration, in this window, as required. In particular, specify the IP address of
the NV9575-VF and ensure that “CONORTMO”
— connection override timeout, in millisec-
onds — is 10,000 or more.
You may ignore “DEFGATE.” The “NETMASK” must be 255.255.255.0.
Choose ‘Save’ from the ‘File’ menu to save the configuration file.
Click
