NV9575-VF Tally Interface • User’s Guide 1
NV9575-VF
This guide is a compilation of information taken from the NV9000-SE Utilities help pages. It is
with NV9000-SE Utilities that you must configure the NV9575-VF.
Refer to the NV9000-SE Utilities User’s Guide (UG0007) for additional information.
Introduction

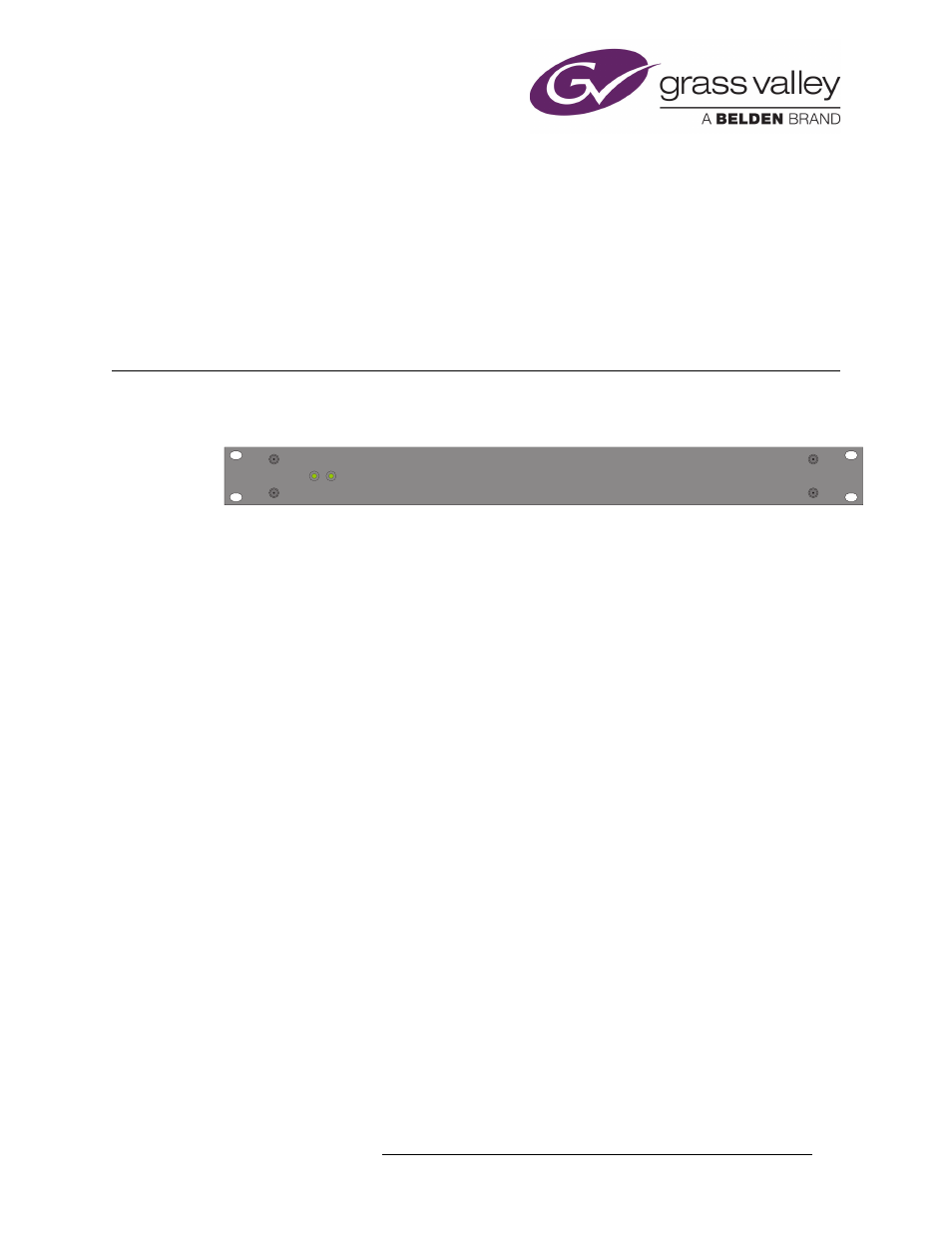

The NV575-VF is a tally interface:
This 1RU device (unlike router control panels) has no controls on its front panel. What it does have
are 64 relay outputs and 32 optically isolated inputs, typically used for tally functions.
The NV9575-VF has 6 DB25 connectors on its rear panel — J1 through J6. J1, J2, J4, and J5 pro-
vide connections for the 64 relay outputs, 16 per connector, with 8 pins common. J3 and J6 provide
connections for the 32 inputs, also 16 per connector with 8 pins common.
Each relay can be configured to switch on a number of conditions:
• One or more routes occurring on specific levels.
• Conditions involving output ports (destination, level).
• A transition on one or more of the NV9575-VF inputs.
Each input (also called a GPI) can be configured to trigger a salvo on a transition from off to on and
to trigger another salvo on a transition from on to off.
Video frame
TALLY EXPANDER POWER
A B
