24 KayakDD Installation Planning Guide

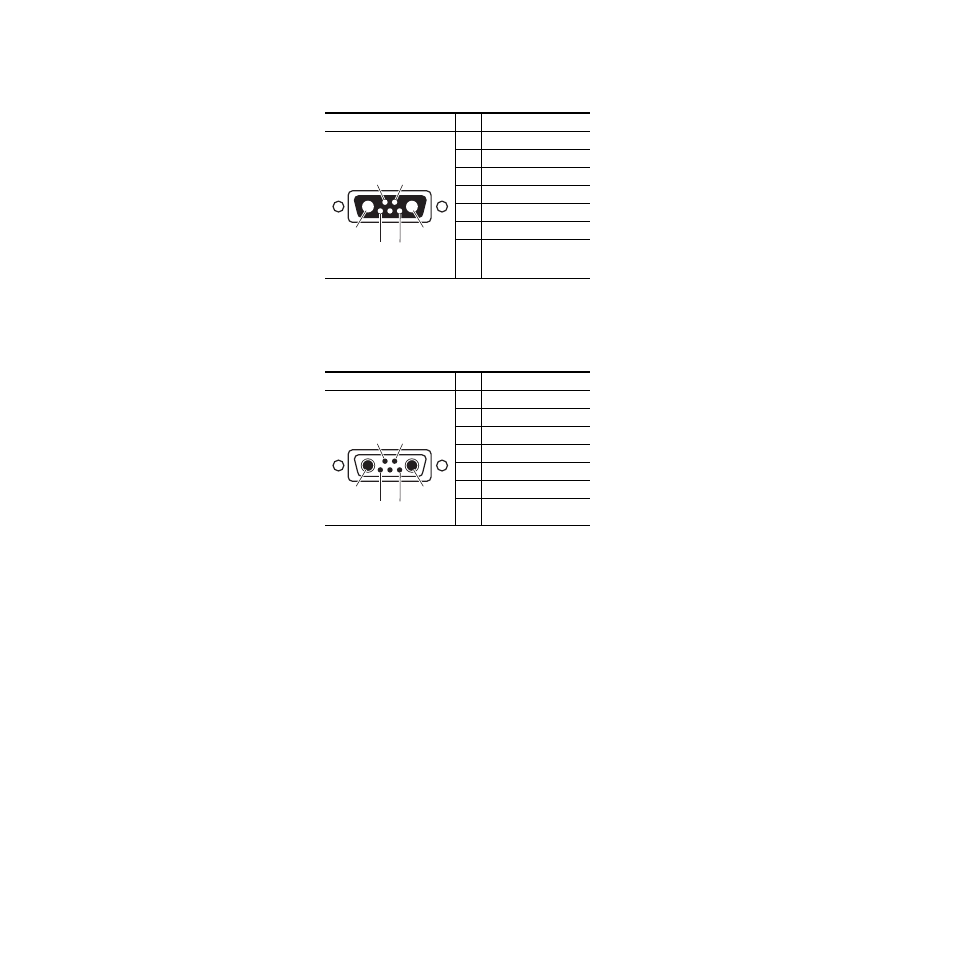

Pin Assignments
Frame DC Power In
Note Pins 2 and 5 must be connected in the plug of the external power supply unit.
Frame DC Power Out
Socket Pin Signal
A1 48 V (+)
A2 48 V (-)
1 Ground
2 Return Sense *
3 + 7 V (RAM Rec)
4 -
5
48V Return *
Table 2.
Socket Pin Signal
A1 48 V (+)
A2 48 V (-)
1 -
2 -
3 -
4 -
5
-
Pin A2
Pin 2 Pin 1
Pin A1
Pin 5 Pin 3
D-Sub Male
Pin A1
Pin 1 Pin 2
Pin A2
Pin 3 Pin 5
D-Sub Female
