KayakDD-1 Installation
Panel Mounting Options
Table Top
The panel can be placed on a table. Gummed feet prevent accidental move-
ment of the panel.
Surface Mount Cut Out Dimensions
Cut a 16.93 in. (430 mm) x 15.75 in. (400mm) hole in table top for surface
mounting.
CAUTION At least 2 inches (50mm) of open space at the rear of the panel below the
mounting surface is required for proper cable clearance and air flow.
Fastening to Table Top
Four M4 thread drillings are available for fastening the panel to a table top
(
Figure 5 ).

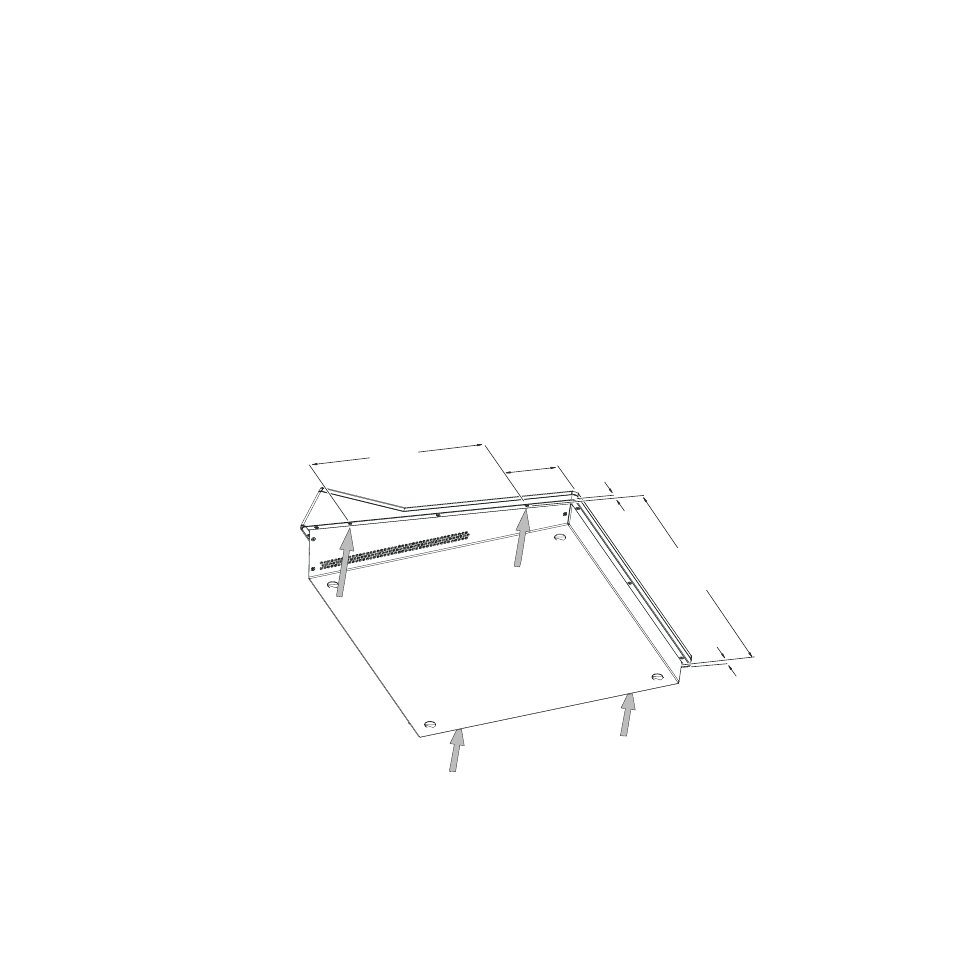

Figure 5. KayakDD-1 Panel Mounting Drillings
Four M4 thread drillings
for panel fastening
8324_03_r0
10.55 in.
268 mm
2.95 in.
75 mm
17.24 in.
438 mm
drilling centerline
0.2 in.
5 mm
edge to drilling
centerline
0.2 in.
5 mm
