Sentriant AG200 Hardware Installation Guide 7
1 About the Sentriant AG200 Appliance
This chapter includes the following sections:
● “Chassis Overview” on page 7
● “Front Panel Features” on page 7
● “Back Panel Features” on page 8
● “LED Operation” on page 8
● “LCD Panel” on page 9
Chassis Overview
The Sentriant AG200 appliance is a compact enclosure that is 1 RU (1.75 inches) high. It fits into a
standard 19-inch (48.26 cm) rack. The Sentriant AG appliance provides two 10/100/1000 Ethernet ports,
a serial console port, and a USB port. An LCD panel provides access for local system management.
Status LEDs provide information about port and system operation.
The Sentriant AG appliance is cooled by three fans. An AC power connector and power switch are
located on the back panel.
Front Panel Features

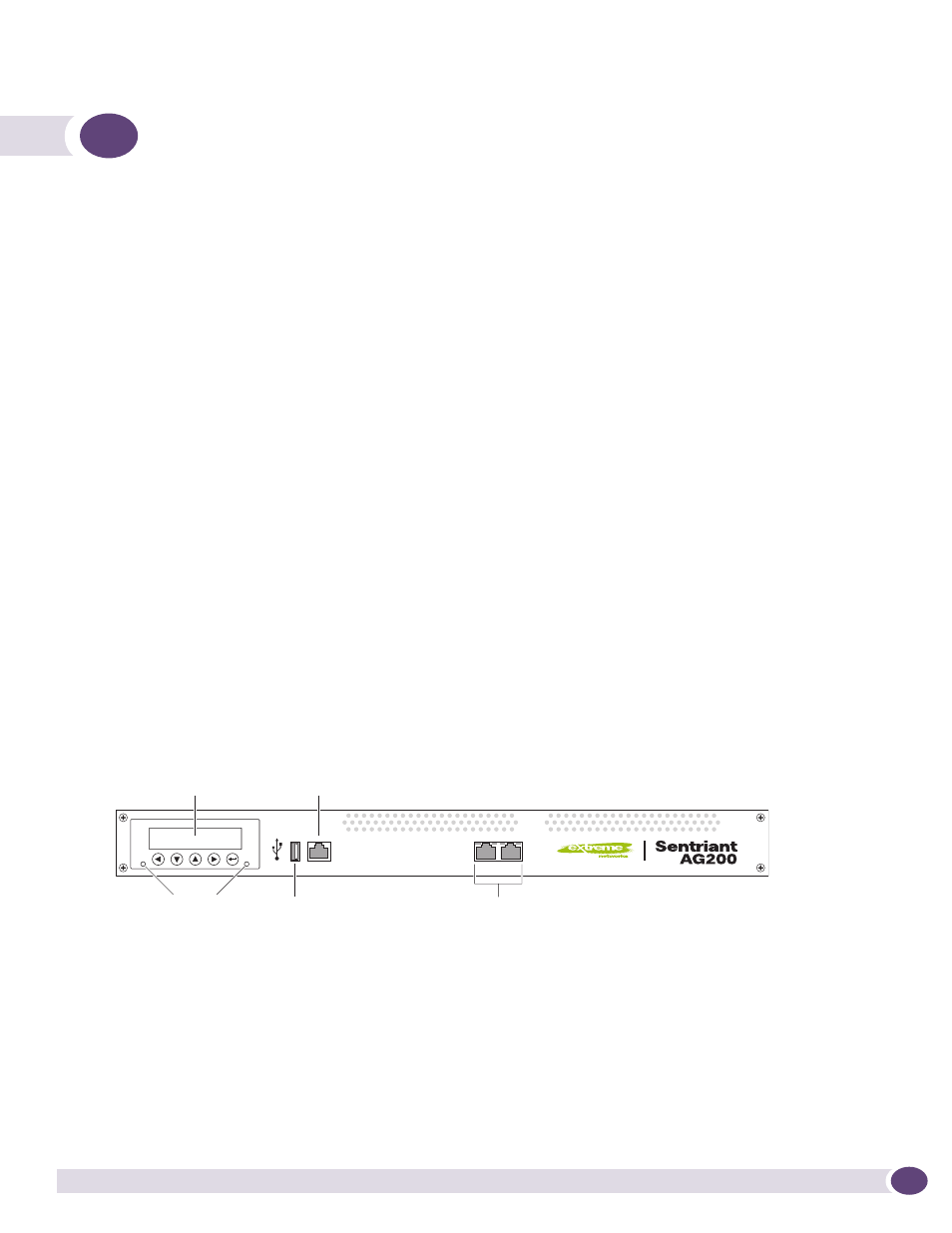

Figure 1 shows the front panel of the Sentriant AG appliance.
Figure 1: Front Panel of the Sentriant AG Appliance
The front panel of the Sentriant AG appliance has the following features:
● LCD panel for local configuration and diagnostics
● USB port for connecting a standard USB drive
● Serial console implemented as an RJ-45 connector
● Two 10/100/1000 Ethernet ports, labeled eth0 and eth1
SN_001
PWR HDD
CONSOLE eth0 eth1
LCD display Console port
Ethernet ports USB port System LEDs
