Gecko Frames Instruction Manual 49
Audio Frame
Audio Frame
Earlier versions of the 8900 Audio TX/TF/TFN frames have a backplane
configuration as shown in
Figure 22 . The earlier frames differ from the
current frames in one main area:
• There is no network configuration (IP address) storage capability on
these frames.
The Frame Alarm connection is on pins 8 and 9 of the RS-232 connector as
discussed in Frame Alarm Connector
on page 30 .

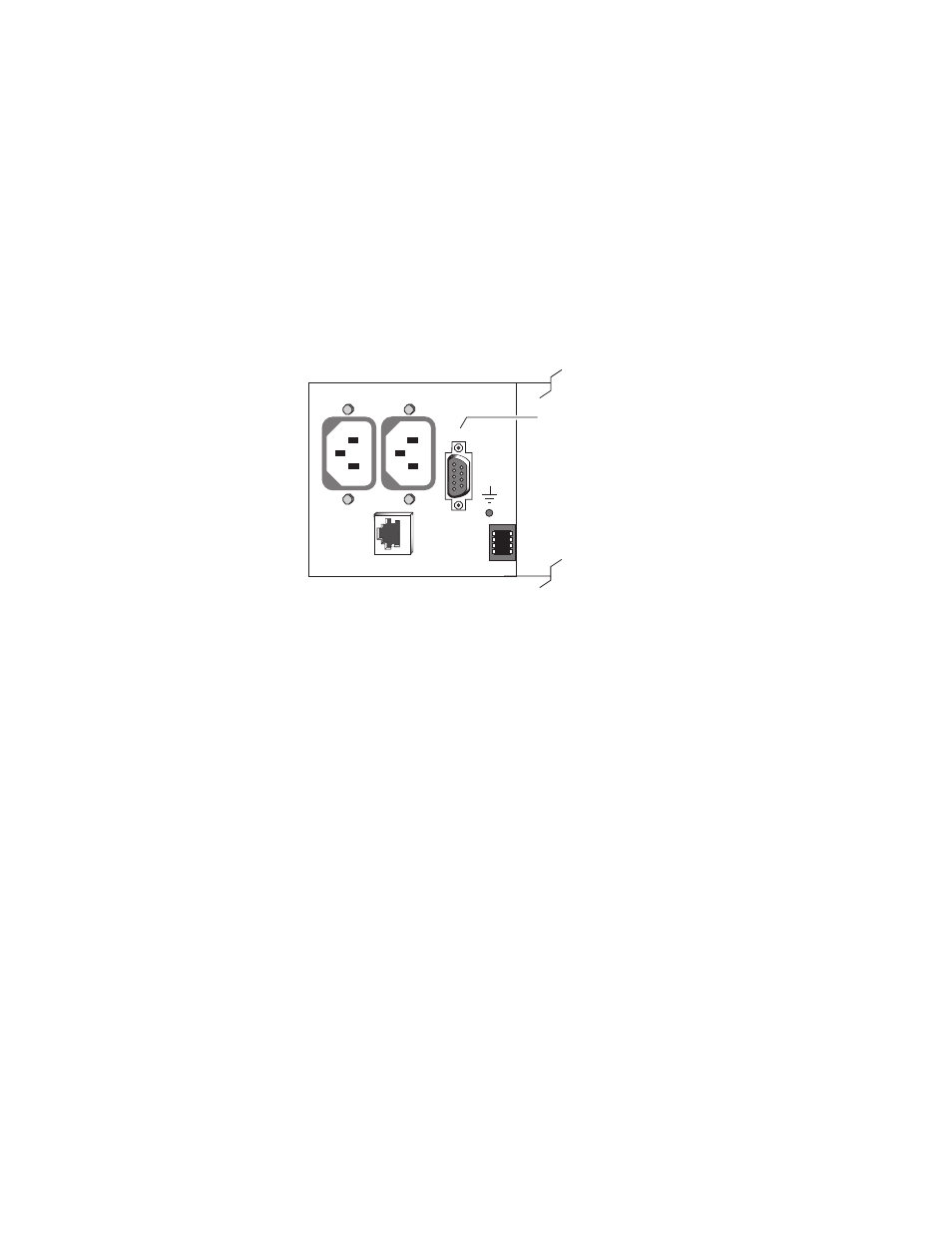

Figure 22. 8900 Audio Frames Backplane
J1 J2
RS232
ETHERNET
J10
U1
Frame Alarm
(pins 8 and 9)
0636 -11r1
