Gecko Frames Instruction Manual 29
Rear Connectors

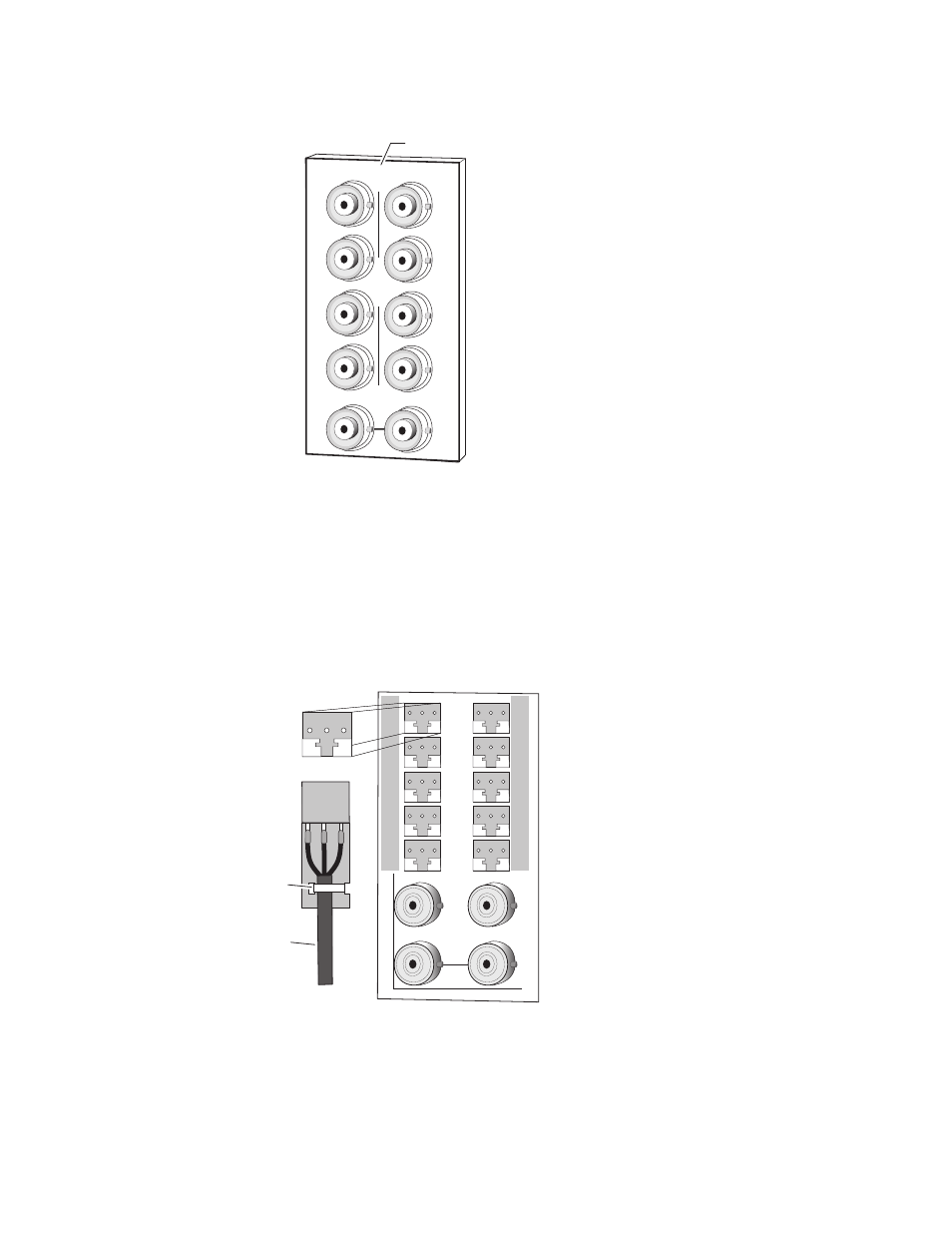

Figure 11. Video Frame Rear Input and Output Connector Labeling
The audio frame provides two direct input/output BNCs (J11 and J12), two
looping BNCs (J13 and J14), and ten three-terminal input/output connec-
tors (J1 – J10) shown in
Figure 12 . A pack of 100 audio connectors is pro-
vided with the frame for connecting audio cable to the rear connectors.
Refer to the specific audio module Instruction Manual for cabling informa-
tion. Pinout information for each module may also be silkscreened on the
module circuit board.
Figure 12. Audio Frame Rear Input and Output Connector Labeling
J2
J4
J6
J8
J9 J10
IN
10
O
U
T
J3
J5
J7
J2 J1
J4
J6
J8
Slot Number (1-10)
Video Frame
Connectors
0636-02r1
J2
J1
J3
J5
J7
J9
J2
J4
J6
J8
J10
J11
J13
J12
J14
IN
1
Wiring for
Audio Connector
(top view)
+ - G
0636_24
+ - G
Cable Tie
Audio
Cable
