CameraMan® 1-CCD Camera Control Keypad Operations Manual
Buttons And Controls
t Camera Select – Used
to select between multiple
cameras (see page 6).
t Zoom In/Out Buttons – Used
to control the tightness of the
camera view.
t IMAGE Buttons (Brightness/Darkness) –
Used to brighten and darken the picture.
• Push the sun to brighten the image.
• Push the moon to darken the image.
t autoIMAGE Button– Used
to enable camera to adjust
the brightness automatically
for each camera view.
t Enter – Used to
enter data or change
a camera location
preset.
t Location Preset Control Buttons (0–9)
– Used to store and recall up to 99
location presets.
t Pan/Tilt Arrows – Used to
control the camera’s up/down,
and left/right movement.
t Indicator Light –
Used for visual
feedback of certain
keypad functions.

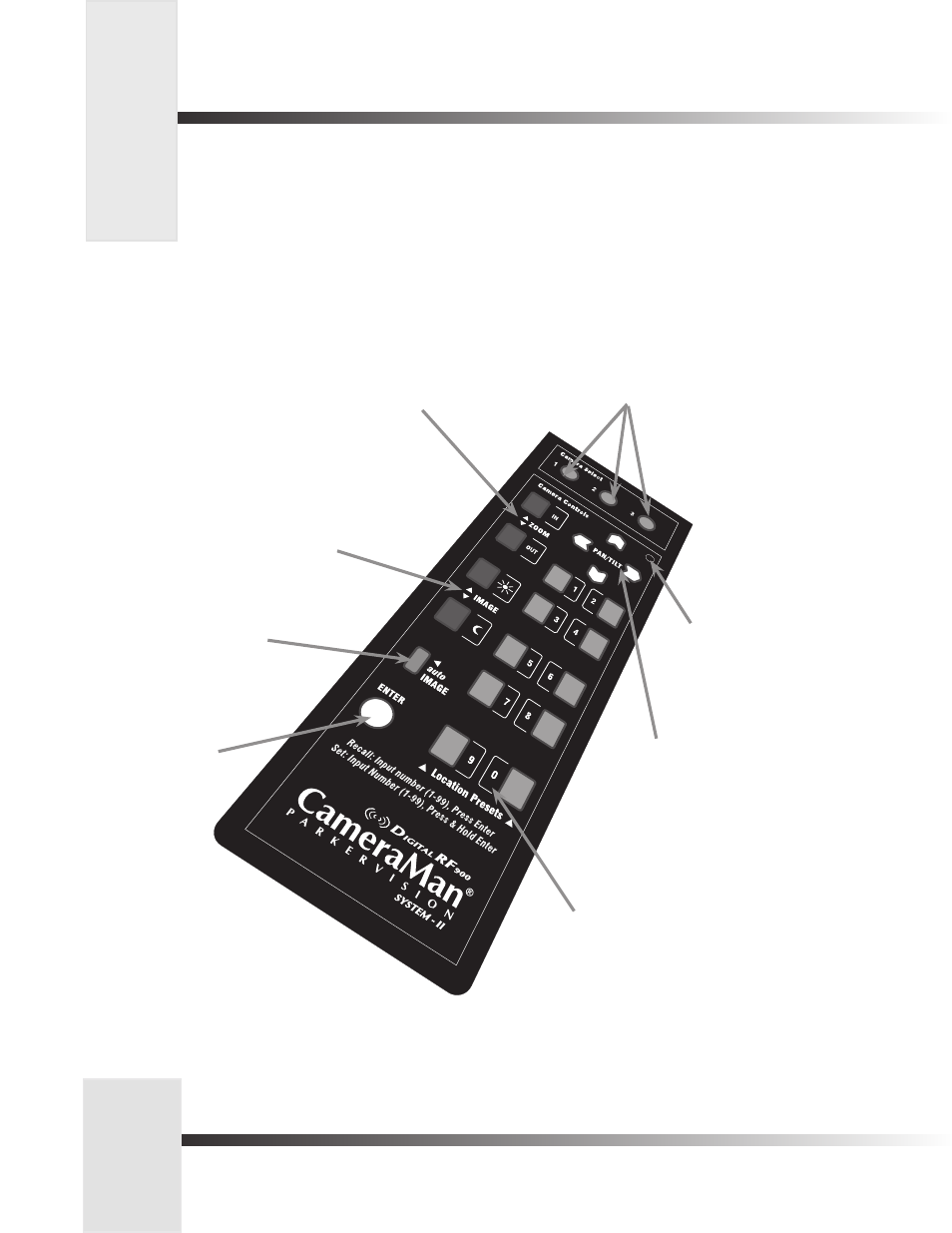

Look at the front of the Camera Control Keypad. Here, you will find all the buttons
required to control the pan, tilt, zoom, and IMAGE, and also the buttons required
to store up to 99 location presets.
