Electro-Voice ® EVID 12.1P User Manual
Product Description
The 12.1P is a self contained, powered 12" subwoofer providing over
300 watts continuous output to the speaker. The 12.1P makes the
addition of a subwoofer to a EVID system very easy and efficient. Since
the unit is self-powered, the full range satellite speakers can be powered
independently from the subwoofer and optimized for the installation.
The 12.1P features a high performance, variable, 12-dB/octave
crossover and a full range line level output along with a high pass line
level output on the rear panel. The unit can be mounted in a variety of
configurations with the bracket hardware supplied.
Product Feature Identification
The 12.1P subwoofer comes with a dual-mode mounting bracket that
enables the unit to be easily mounted at either a wall/wall (corner) or on
a wall/ceiling (midwall) junction. The included forged steel eyebolt
provides the installer a solid attachment point for a safety line. When
properly anchored and supported, the 12.1P subwoofer may also be
safely installed protruding just 2 3/4" down through a standard sus-
pended ceiling grid. See installation instructions.
1

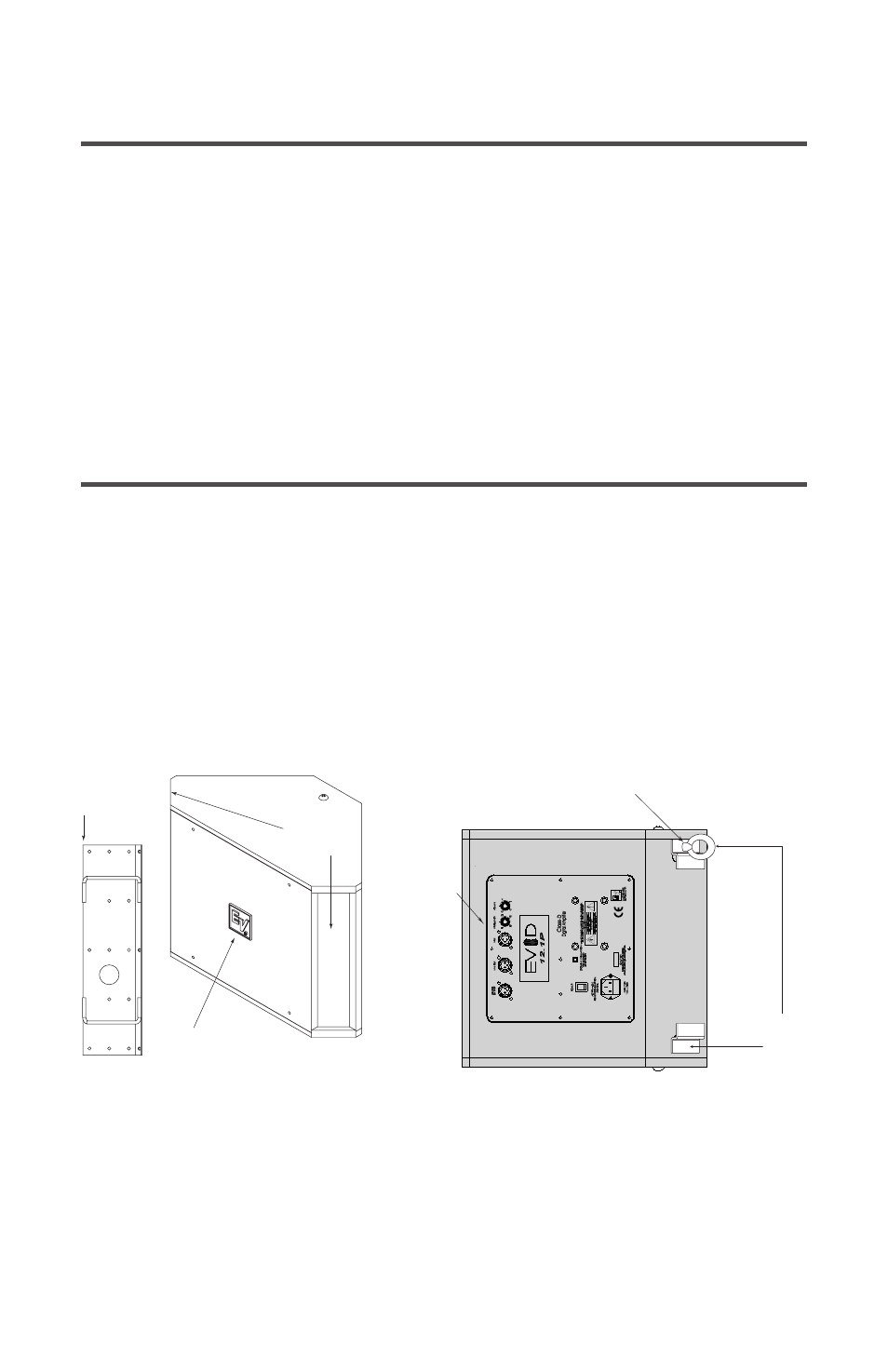

Figure 2: EVID TM 12.1P Features
(Rear)
Acoustic
ports
EV ®
logo
Dual-mode
mounting
bracket
Figure 1: EVID TM 12.1P Features
(Front)
Bracket clip
mounting
points
Safety line
attachment
eyebolt
Amplifier
panel
