8

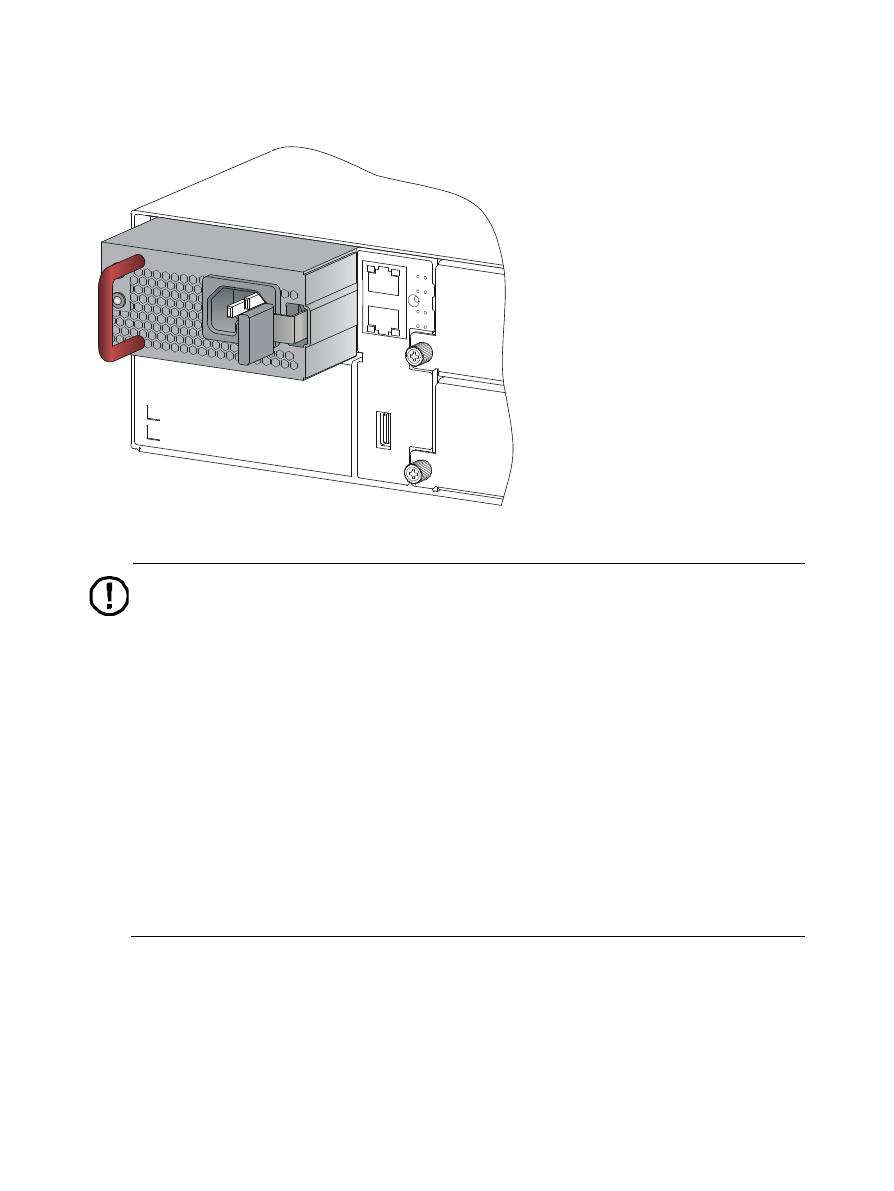

Figure 4 Appearance of the power module after installation
IMPORTANT:
•
To avoid damaging or bending the terminals of the power
module, if the insertion direction is incorrect during the
installation, you must pull the power module out, adjust the
direction, and insert it again.
• To remove the filler panel (if any) from the power module slot on
the device, insert a flat-blade screwdriver through the handle and
pull the filler panel outward along the guide rails, as shown
in
Figure 5 .
• Keep the filler panel and the packaging box and packaging bag
of the power module for future use.
