Operation, Front panel controls and indicators, Status indicators – Ensemble Designs BrightEye 71 HD/SD 8 Channel Analog Audio Embedder/Disembedder User Manual

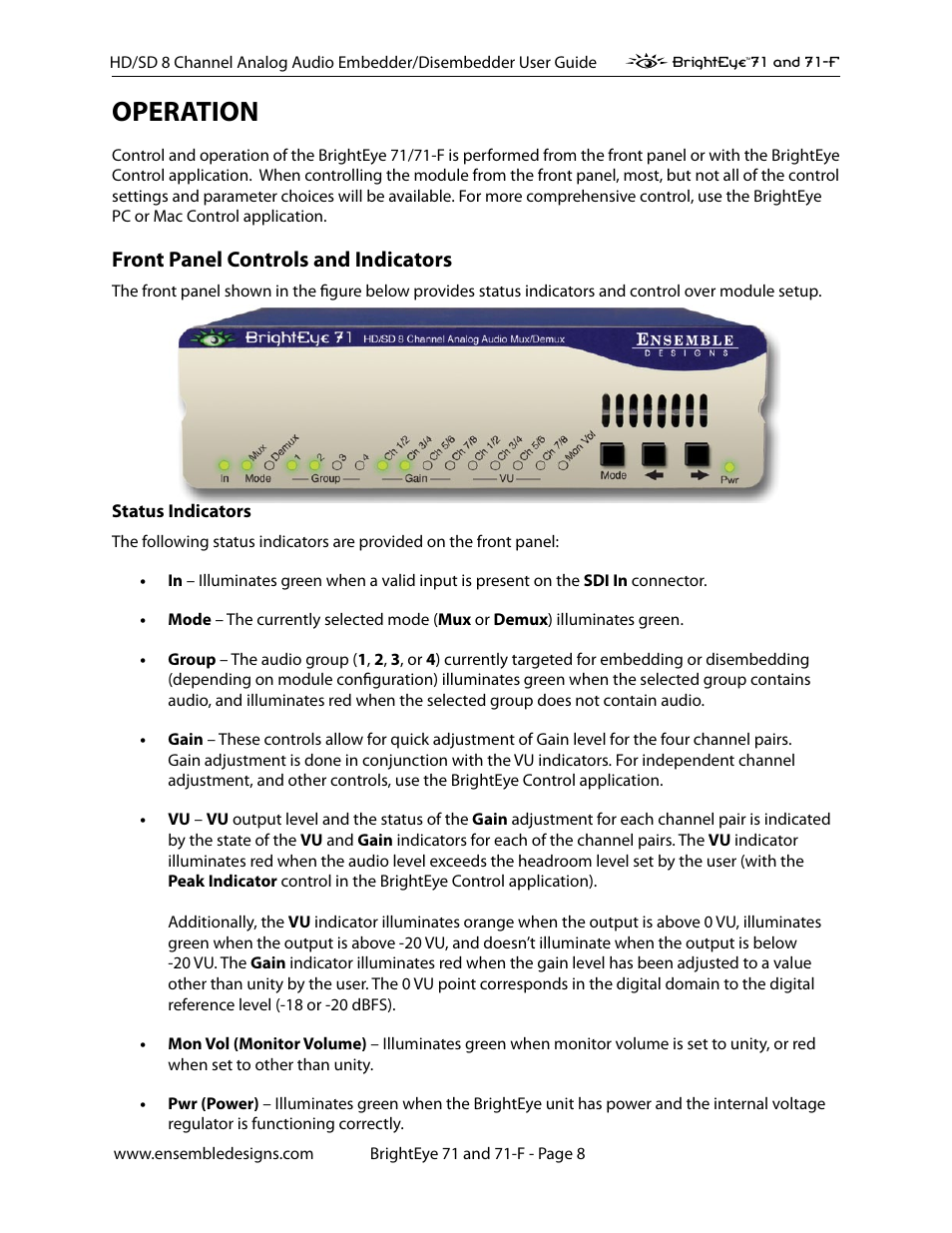

Page 8: Operation 7
