7550-5
INSTALLATION
8415 Submodule Installation
The optional 8415 Series submodule installs on the component side of the 7550 Video
Processing module circuit board. If the option is ordered with the 7550 module, it will
come already installed.

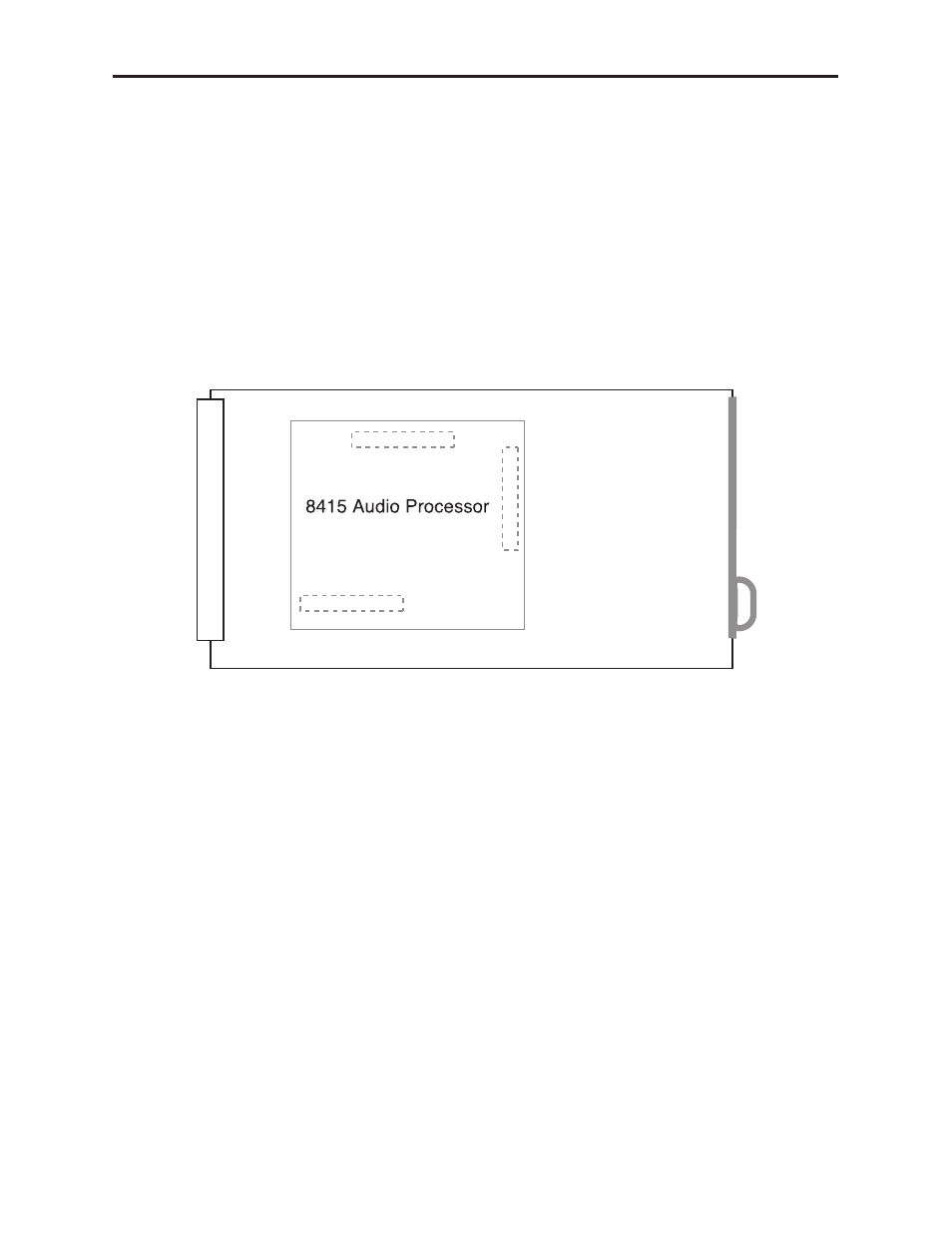

To install the 8415 audio submodule, locate the three connectors on the left side of the
circuit board as shown below and line the connectors up, checking the alignment. Press
carefully into place to seat the submodule.
Note: Operation of the 8415 Audio submodule requires that the Control module
(5030/5035) in the frame be running version 2.0.5 software or later.
7550 Video Processing Module
Plug the 7550 module into any one of the slots in the 1 RU or 3 RU frame and install the
plastic overlay provided onto the corresponding group of rear BNC connectors associated
with the module location. Note that the plastic overlay has an optional adhesive backing
for securing it to the frame. Use of the adhesive backing is only necessary if you would
like the location to be permanent and is not recommended if you need to change module
locations. This module may be hot-swapped (inserted or removed) without powering down
or disturbing performance of the other modules in the system.
Model 7550 HD Video Proc Frame Sync
8415 Submodule Installation
