Avenue Touch Screen Remote Configuration
The Avenue Touch Screen remote control status menu for this module is illustrated and
explained below. Refer to the 7550 Parameter Table for a summary of available parame-
ters that can be set remotely through the menus illustrated. The Configuration
Summary gives tips and general background information on setting the parameters. For
more information on using Avenue Touch Screen, refer to the Avenue System Overview.
Parameter fields that are grayed out can indicate one of the following conditions:
•
An option is not installed.
•
The function is not active.
•
The module is locked.
•
The User Level set with Avenue PC is not accessible from the current User Level.
7550 Avenue Touch Screen Menus

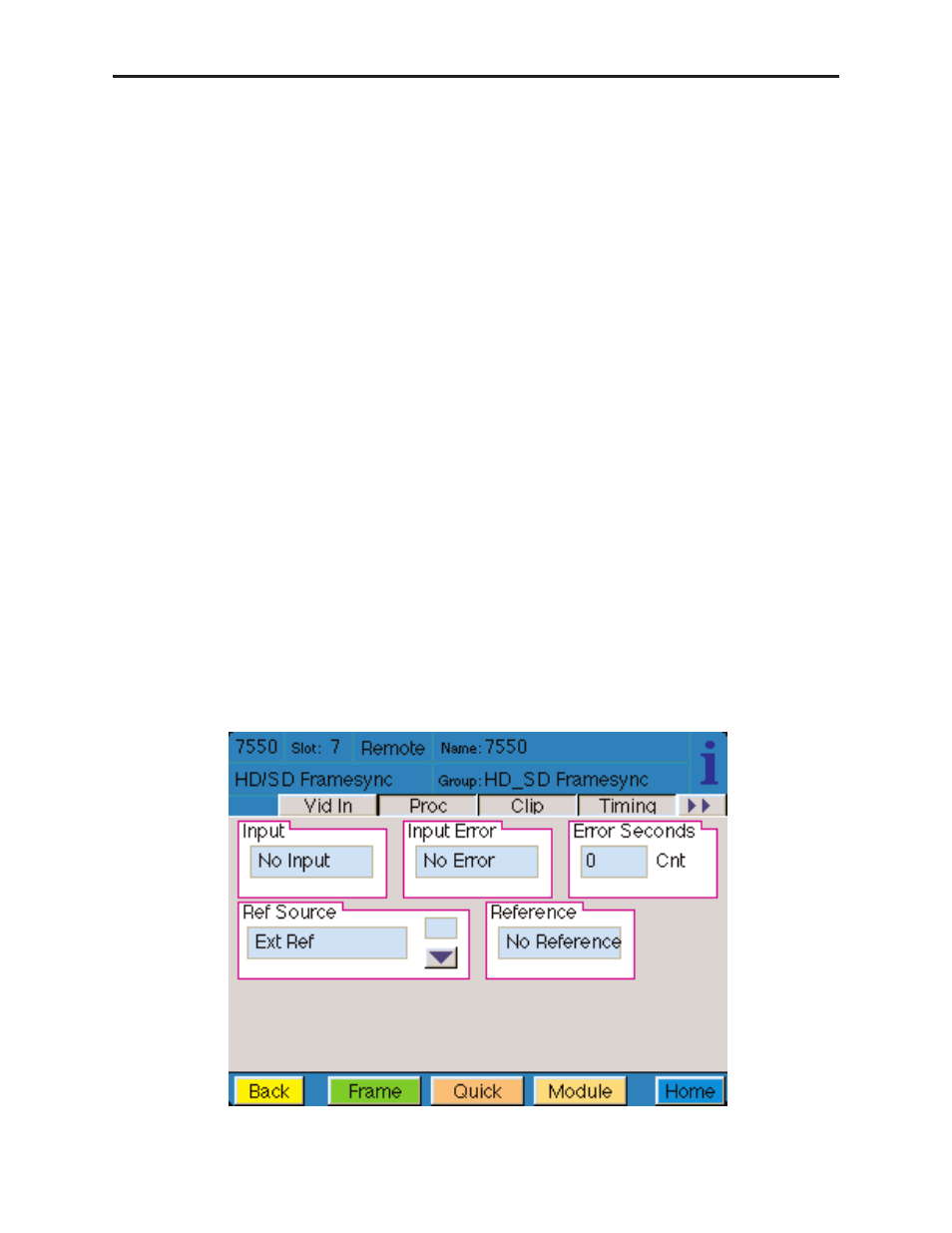

The Vid In menu shown below allows you to configure the following input sources:
•
Ref Source – use this control to set the reference input source.
Status reporting is provided for the following conditions:
•
Input – reports the input status as No Input, 720p/50, 720p/59.94, 720p/60,
1080i/50, 1080i/59.94, 1080i/60, 1080p/25, 1080p/23.98, 1080p/24, 1080sF/25,
1080sF/24, 1080sF/23.98, SD 625, SD 525, or Unknown Std.
•
Input Error – reports one of the following errors: No Error, No Input Lock,
EDH/CRC Error, and TRS Error.
•
Error Seconds – displays the number of seconds that a detected EDH error has
been present in the serial data stream.
•
Reference – reports the status of the reference input as either No Reference,
Ref Mismatch, Ref Unlocked, Ref 525 Lock, Ref 625 Lock, or TLS Lock.
