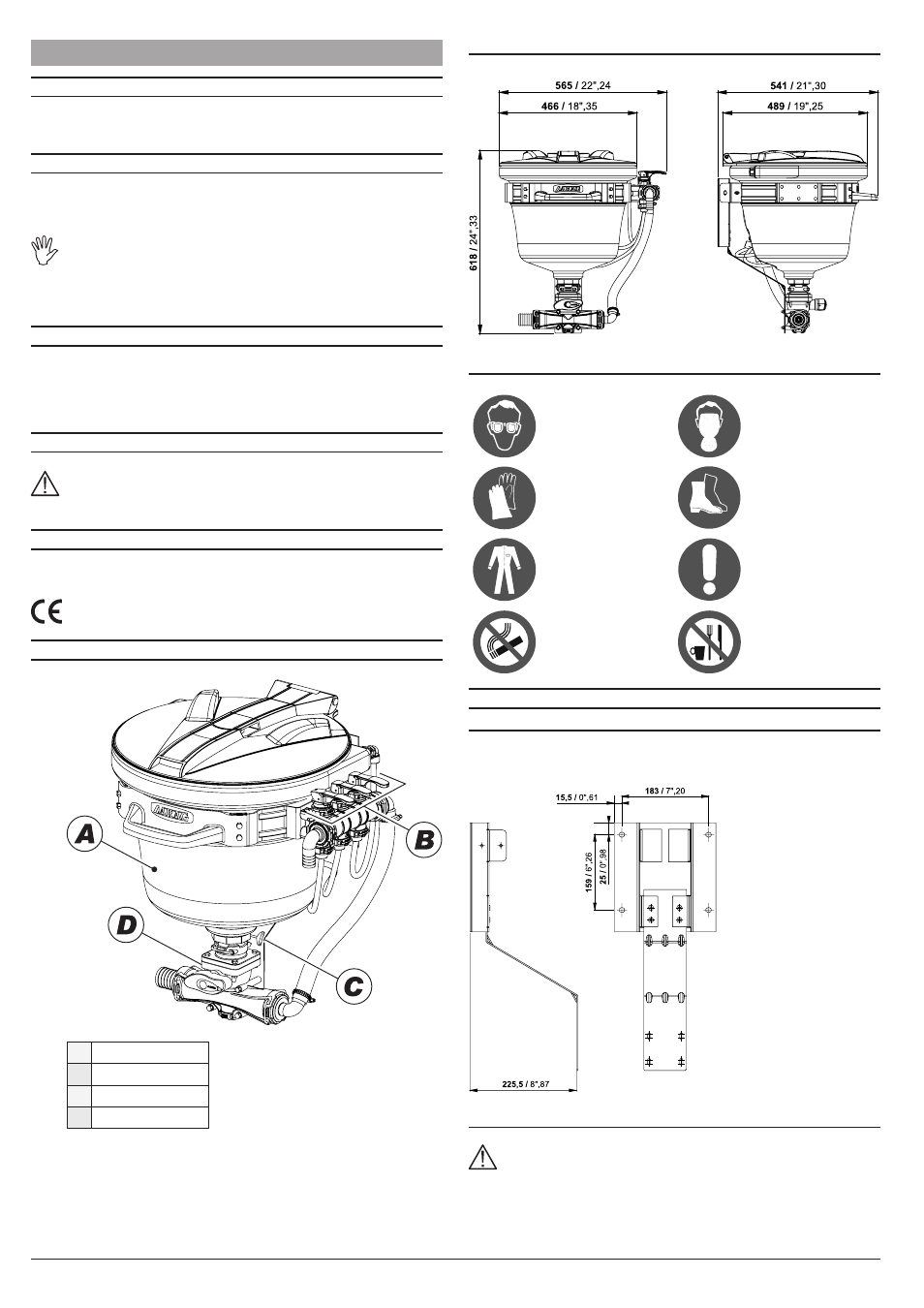

ARAG Mixer NIAGARA - Manual (Page 8)

8
ENGLISH
• FOREWORD AND USE OF THIS GUIDE
This manual provides instructions to assemble, connect and set the
Niagara ecological Mixer (Code 5033301).
• HOW TO USE THIS GUIDE
Installation section is reserved to qualified technicians. For this rea-
son it uses proper technical terms and does not include descriptions
needed by final users.
THE DEVICE SHOULD ONLY BE INSTALLED BY AUTHORI-
ZED AND QUALIFIED ENGINEERS.
ARAG IS NOT RESPONSIBLE FOR ANY USE OF THIS GUIDE
BY EITHER NON-AUTHORIZED OR NON-QUALIFIED PER-
SONNEL.
• LIABILITY
The installation engineer must perform all required installation ope-
rations according to the rules of the trade and ensure trouble-free
operation of the whole system to the final user, be it equipped
with ARAG parts only or foreign parts.
1 RISKS AND PROTECTIONS BEFORE DEVICE INSTALLATION
ONLY use clean water for tests or spraying simulations: the
use of chemicals for spraying simulations can seriously
damage objects and cause injuries to people nearby.
2 INTENDED USE
This Mixer allows chemical mixing during spraying if connected to the
hydraulic system of a farm machine.
The machine is designed and built in compliance with
2006/42/EC and 2009/127/EC Directives.
3 DESCRIPTION
A Tank
B Tap unit
C Chassis
D Mixer valve
3.1 Overall dimensions (mm / inches)
3.2 Pictogram description onto the mixer
use a suitable eye
protection
use a suitable protection
against fumes and toxic
vapors if necessary
use suitable protective
gloves use shoes or boots to
protect the feet
use a special coverall
to protect the body
comply with all the safety
precautions recommen-
ded by the manufacturer
of the used chemicals
do not smoke during
preparation and use of
chemical products do not eat and drink du-
ring preparation and use
of chemical products
4 INSTALLATION
4.1 Positioning the Mixer onto the farm machine
The Mixer has been designed to be installed onto a farm machine frame
through its holed flange (Fig. 3).
4.2 Connecting the Mixer to the hydraulic system
IMPORTANT!
Do not apply pressures above 8 bars to the mixer (see tables
2a ÷ 2c, Page 7).
Connect the pump using the fittings supplied with the Mixer. Different
fittings should be ordered separately.
Install the Mixer in a user
friendly position which is
practical enough when the
chemical product is added.
Pay special attention to the
following:
1) The cover should open
without any problems and
should not be in contact with
any machine parts;
2) The controls of the valves
next to the Mixer and the
main valve under the Mixer
should not be covered by
any machine parts;
3) The Mixer should be at
a practical height for the
operator.
Fig. 3
CONTINUES
Tab. 1
Fig. 1
Fig. 2
