SPECIFICATIONS
10.7V - 15.6V DC, 5A min
0A
2.4GHz
3V (1 x CR2430 battery)
12V DC, 350mA max
IP65
500 hours stable without degradation
General
Power Supply:
Current drain when OFF:
Remote Control Frequency:
Remote Control Battery:
External Trigger:
IP Rating (Digital Media Locker™):
UV Protection:
TECHNICAL SPECIFICATION
8uV
Dipole Antenna (not included)
Stereo
3
FM Radio
FM Radio Sensitivity:
FM Antenna:
FM Radio Reception:
Number of Radio Presets:
Amplifier
Distortion:
Frequency Response:
Amplifier Output:
<0.1% THD at 1kHz
20Hz - 20kHz
45W per channel at 4 Ohm load
72W per channel at 2 Ohm load
GETTING STARTED
A
Q
-D
M
-4
2
www.aquaticav.com

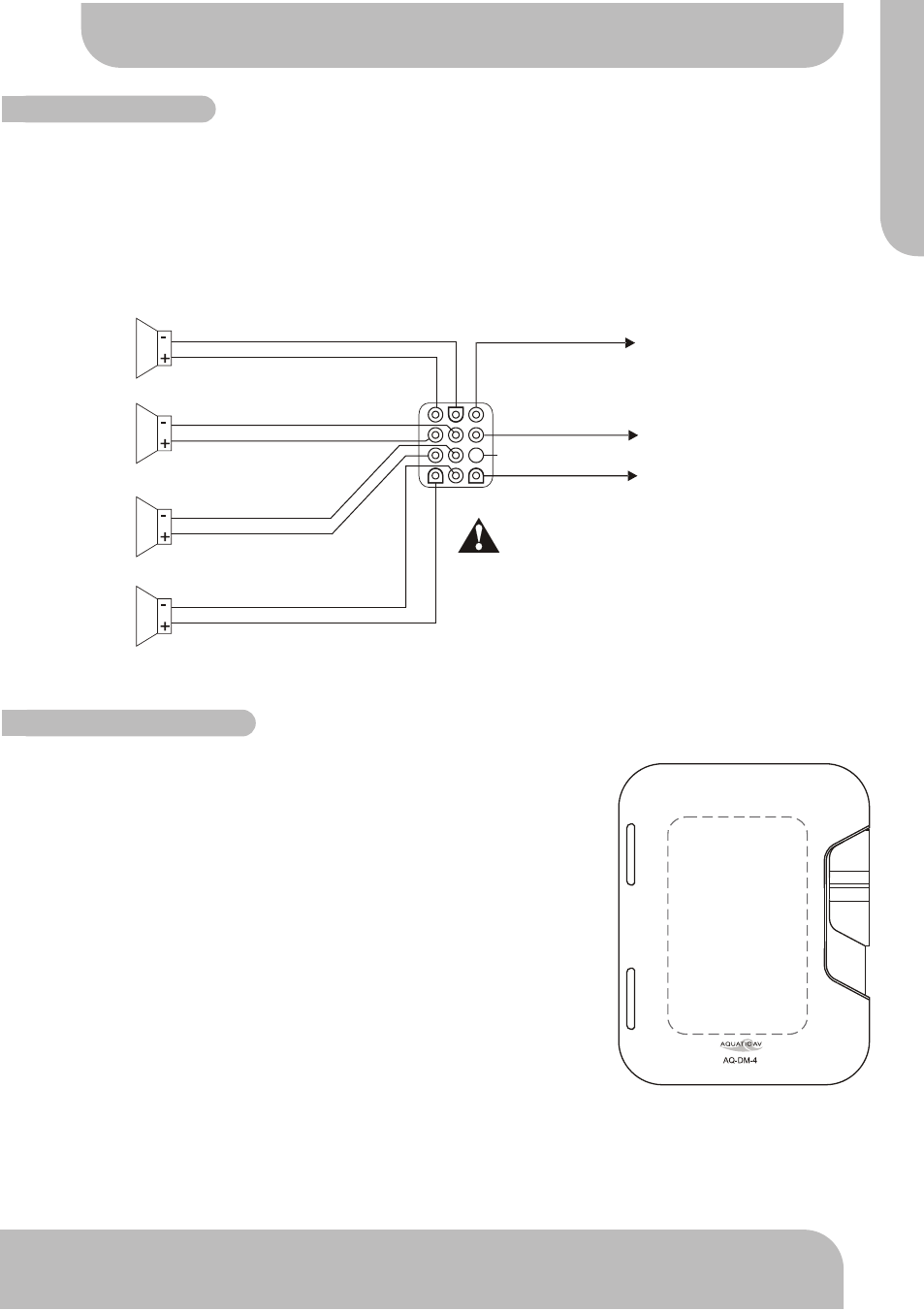

12-PIN HARNESS
The AQ-DM-4 will require a universal harness (AQ-UNH-2) in order to connect the dock to
power and speakers.
All open wire connections should be soldered and protected against water and dust for best
long term performance.
MOUNTING THE UNIT
1. Mounting templates are included. Aquatic AV recommends
1. using the ‘measure twice, cut once’ method.
2. Once the mounting hole is complete, make sure the outside
2. surface is clean and clear of debris. The Digital Media
2. Locker™ has an external water/dust proof gasket, but this
2. requires a clean surface for best performance.
3. The Digital Media Locker™ has six(6) front screws. Drive
2. the 6 screws using a screw driver. During final mounting,
3. apply equal pressure to all points for the best water/dust
3.. outer seal performance.
4. Review all outside surfaces of the Digital Media Locker™ to
4. ensure proper water/dust seal. This is important for long
4. term environmental protection performance for iPod or MP3
4. devices.
(Purple/Black Stripe)
(Purple)
(Gray/Black Stripe)
(Gray)
(White/Black Stripe)
(White)
(Green/Black Stripe)
(Green)
Speaker
Right
Front
Left
Rear
Left
Front
RR (Pin 11)
RR (Pin 12)
RF (Pin 8)
RF (Pin 9)
LR (Pin 3)
LR (Pin 2)
LF (Pin 5)
LF (Pin 5)
Not Used (Pin 6)
+12VDC, Triggered (Pin 6) (Blue)
DC Ground (Pin 10) (Black)
+12VDC (Pin 1) (Red)
F
Right
Rear
No lower than a 2 Ohm load should be used or
damage may occur to the Digital Media Locker ™.
Make sure the polarity of speakers are connected
correctly.
+12VDC, Trigger for Amp (pin 6) (Blue)
AQ-DM-4B
