10
www.aquaticav.com
FCC STATEMENT
A
Q
-D
M
-4
FCC ID:
MADE IN CHINA
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
NOTE:
The equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation.
If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged
to try and correct the interference by one or more of the following measures:
- Reorientate or relocate the receiving antenna.
- Increase the separation between the equipment and the receiver.
- Consult the dealer or an experienced radio/TV technician for help.
The manufacturer is not responsible for any radio or TV interference caused by
unauthorized modifications to this equipment. Such modifications could void the user
authority to operate the equipment.
Product design and specification subject to change without notice. E&OE.
Digital Media Locker™ is a Trademark of Aquatic AV.
iPod is a Trademark of Apple Inc, registered in the US and other countries.
Doc V4 Feb12
• AQ-DM-4 Digital Media Locker™
• 2-way RF wireless remote control
• 2.35m audio cable (3.5mm plug to 3.5mm plug)
• One (1) CR2430 battery
• AQ-DM-4 mounting template
• Six (6) Stainless Steel mounting screws
• Owners manual
CONTENTS
INSTALLATION
GETTING STARTED
1
www.aquaticav.com

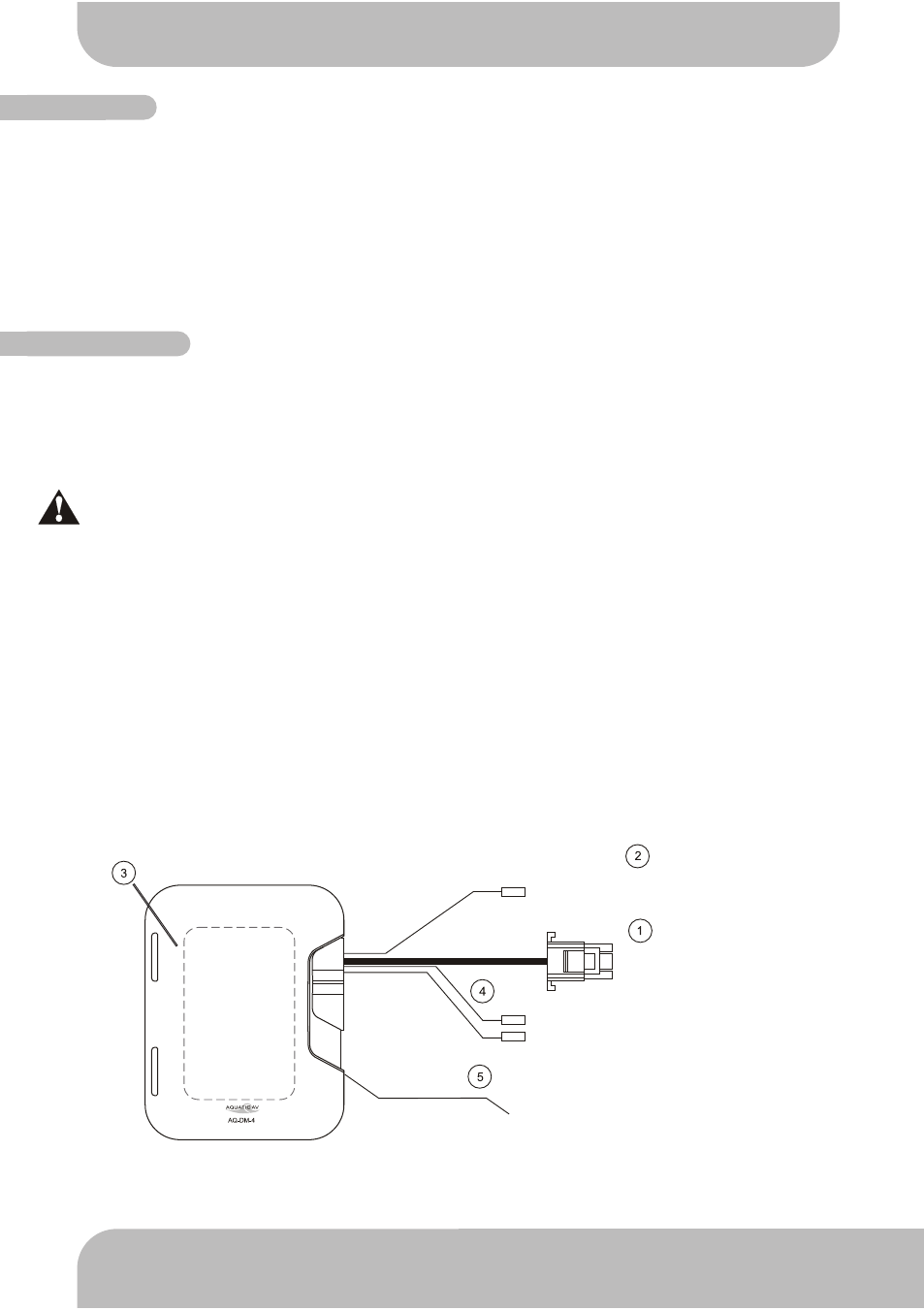

FM Radio
Antenna Jack
12 pin
Harness Cable
External 12V Trigger (Brown)
Left Audio - RCA Output Jack
Right Audio - RCA Output Jack
Aux’ Input
Jack Socket
1. 12-pin Watertight Harness
This harness supplies power and ground connections to the Digital Media Locker™ and four (4)
speaker channel output connections from the Digital Media Locker™. The AQ-UNH-2 (supplied
separately) or a custom manufacture harness will be required.
Do not cut or modify the 12-pin harness or warranty will be void
2. FM Radio Antenna Jack
Connect antenna to female antenna receptacle. For best FM performance make sure the FM
Antenna is extended to the highest achievable position.
3. Auxiliary Input
The AQ-DM-4 has a 3.5mm stereo jack socket for connecting other audio devices.
4. Auxiliary Outputs
Allows external amplifier to be connected to power additional speakers.
5. 12V DC External Trigger
Allows for an external light or relay to be triggered (350mA max load).
