Chapter 7 Maintenance
7.1 Adjustment
Introduction
DX-SR8 has been strictly tested and completely adjusted at the factory prior to shipment. When
adjusting, therefore, be careful not to touch the non-user-servisable components such as the
preset resistors/pots, and trimmers inside. Off-alignments caused by an user voids warranty.
Adjustment Item List
Remove the covers to perform the following:
• Adjusting microphone gain.
• Adjusting beep volume.
• Adjusting sidetone volume.
• Adjusting the output power of S-LOW for QRP operation.
• Selecting 100 W or 50 W output.
• Fuse replacement
IMPORTANT:
Be sure to turn the POWER switch off and unplug the DC cable before removing the
covers.
Removing the FRONT unit
Removing the Covers

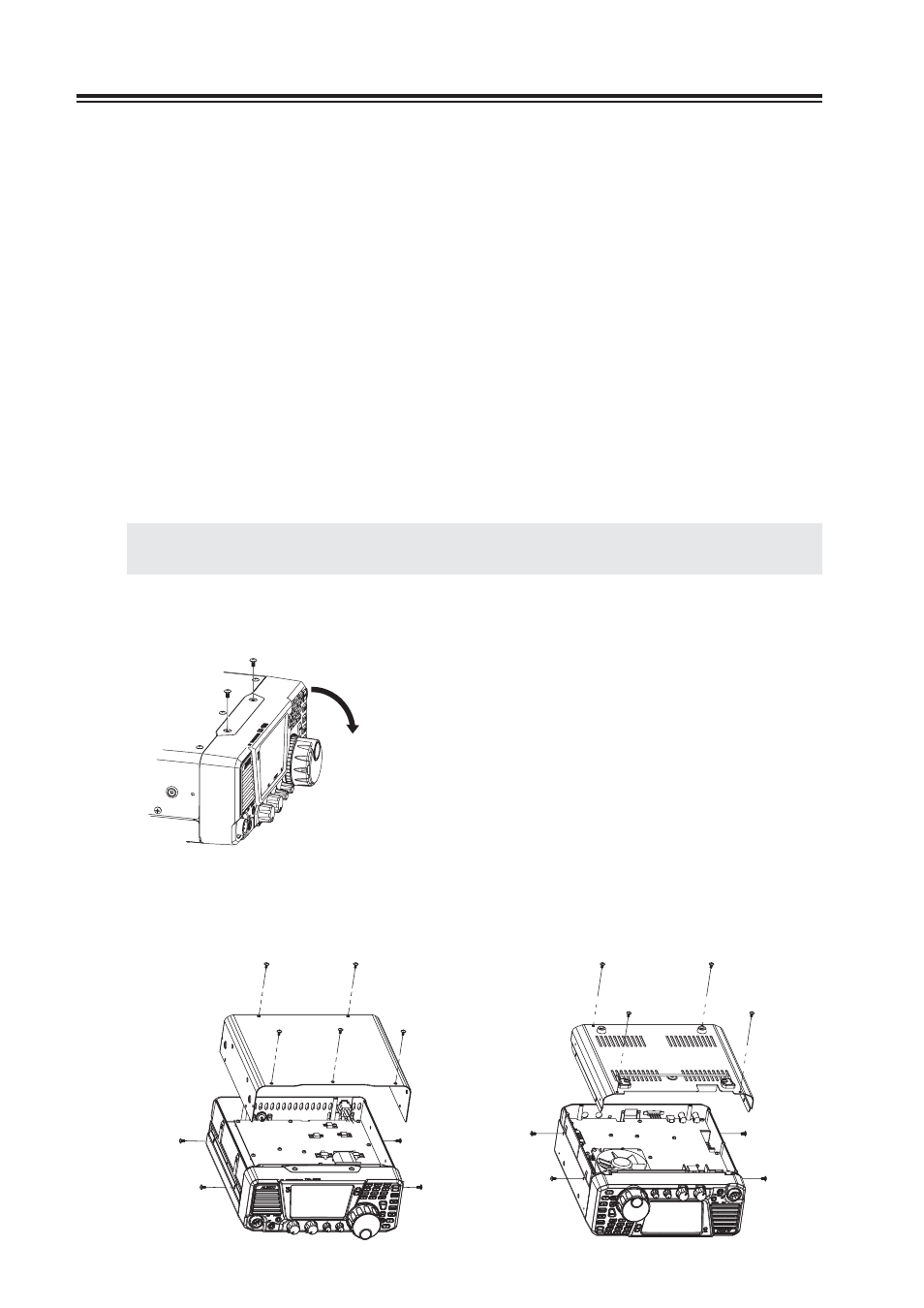

Remove the covers as shown below.
• Top cover
• Bottom cover
