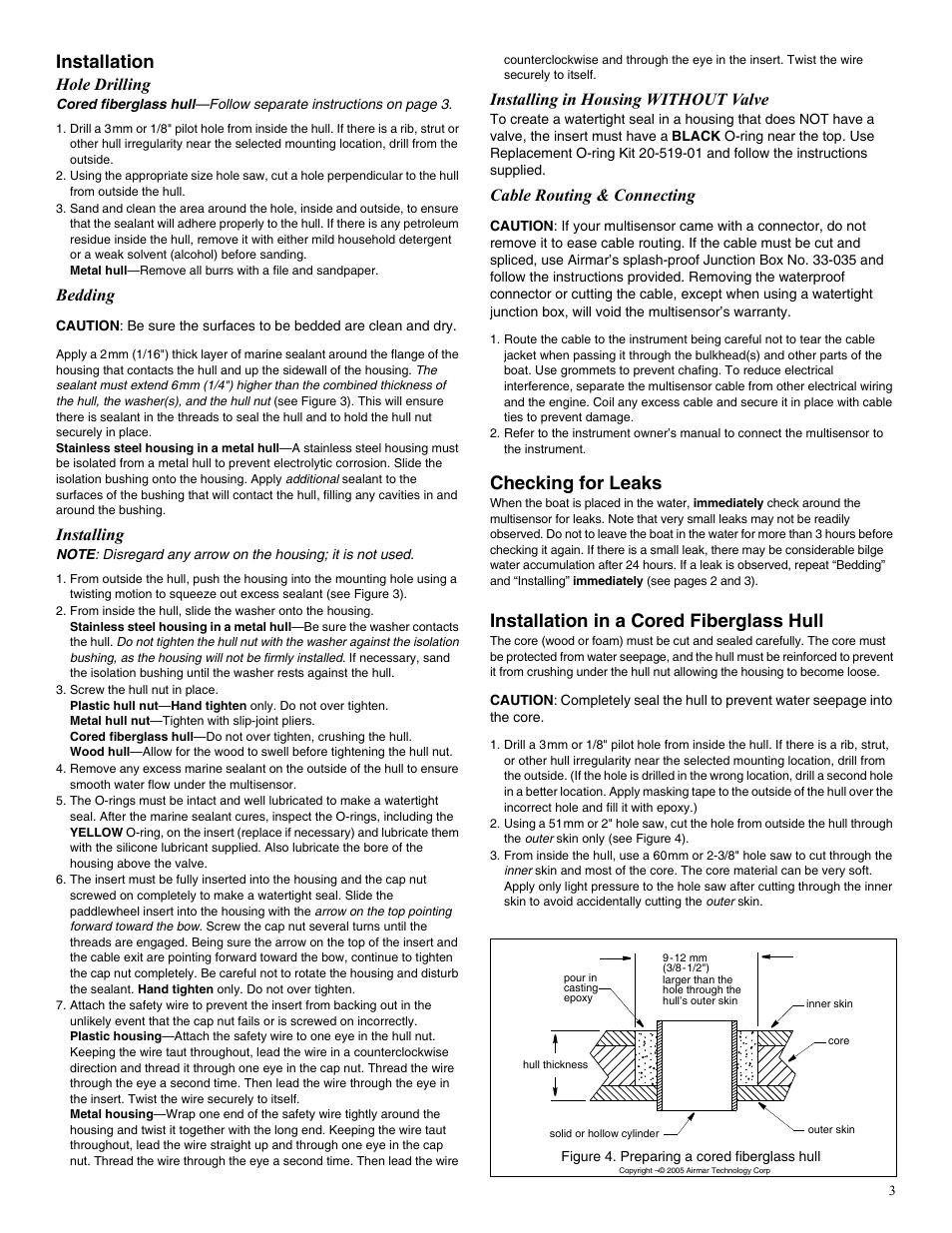

Installation, Checking for leaks, Installation in a cored fiberglass hull – Airmar DST800 Retractable with Valve—TRIDUCER® Multisensor User Manual
Page 3: Hole drilling, Bedding, Installing, Installing in housing without valve, Cable routing & connecting
