Connecting, Guidelines, Locating the data converter & routing the cables – Airmar T42 Temperature Sensor User Manual

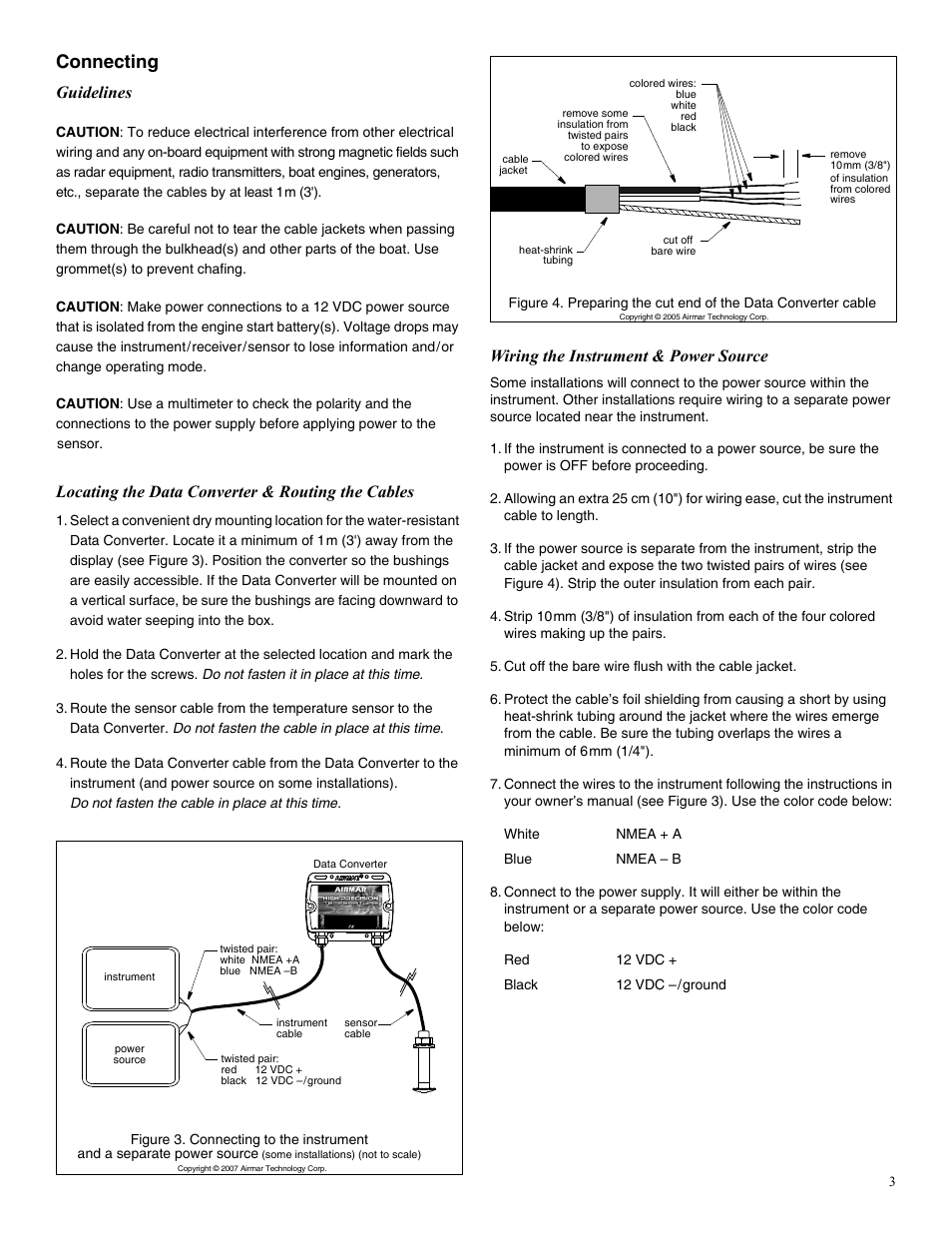

Page 3: Wiring the instrument & power source
