EverFocus EHD525EX User Manual
Page 8
7
5. Wire Connection
Connect the power supply cable (24VAC/12VDC), video output and alarm
output to the proper connectors shown as Figure 7.
The V. Phase adjustment screw is located on the termination board. The
vertical phase may require adjustment to synchronize the vertical phase of the
camera with other camera in the system when it is to be used in the line-lock

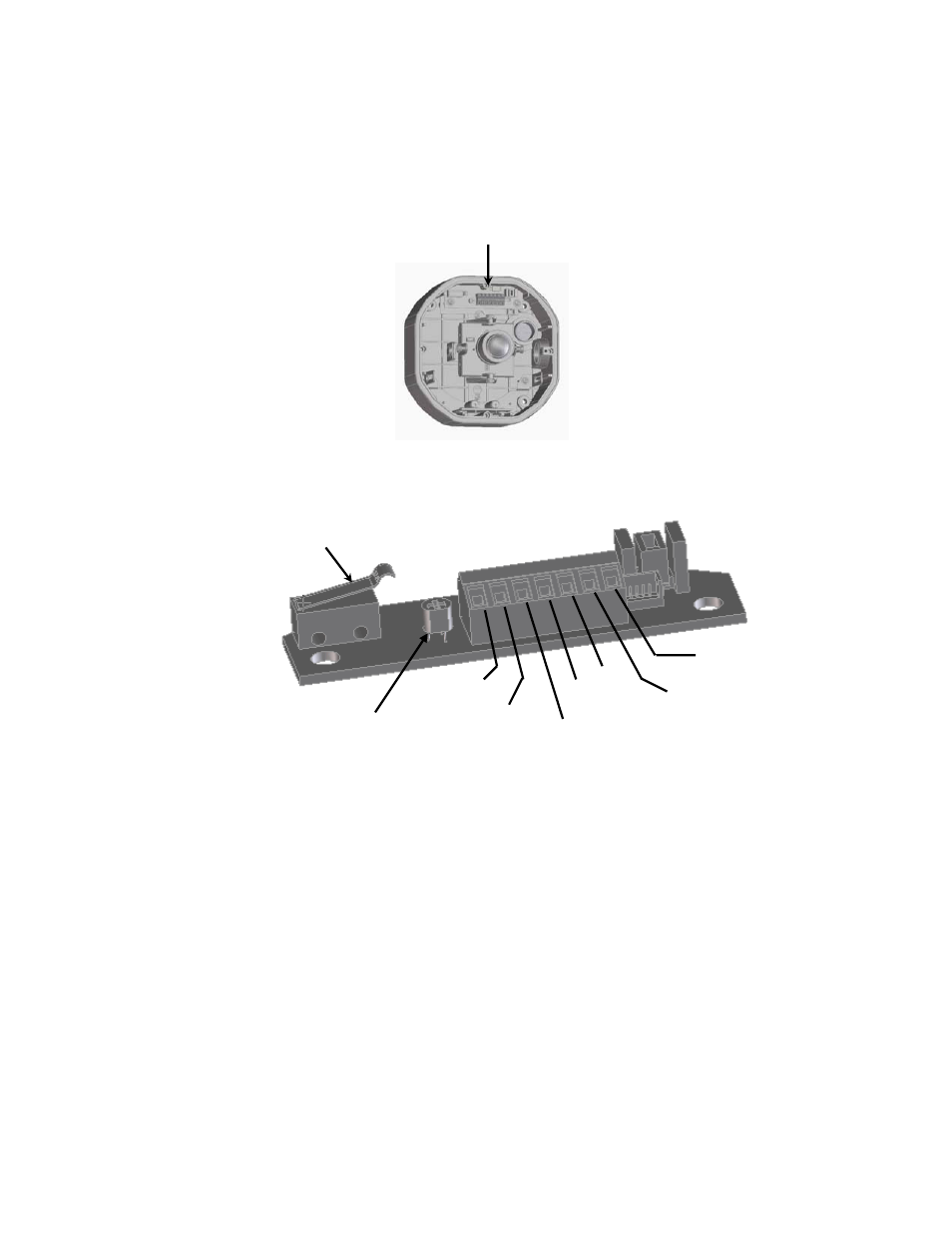

Termination Board
Video
Alarm COM
Micro Switch for Alarm trigger
GND
Alarm NO
Alarm NC
Power In
(+)
V. Phase Adjustment VR
Figure 7
