9

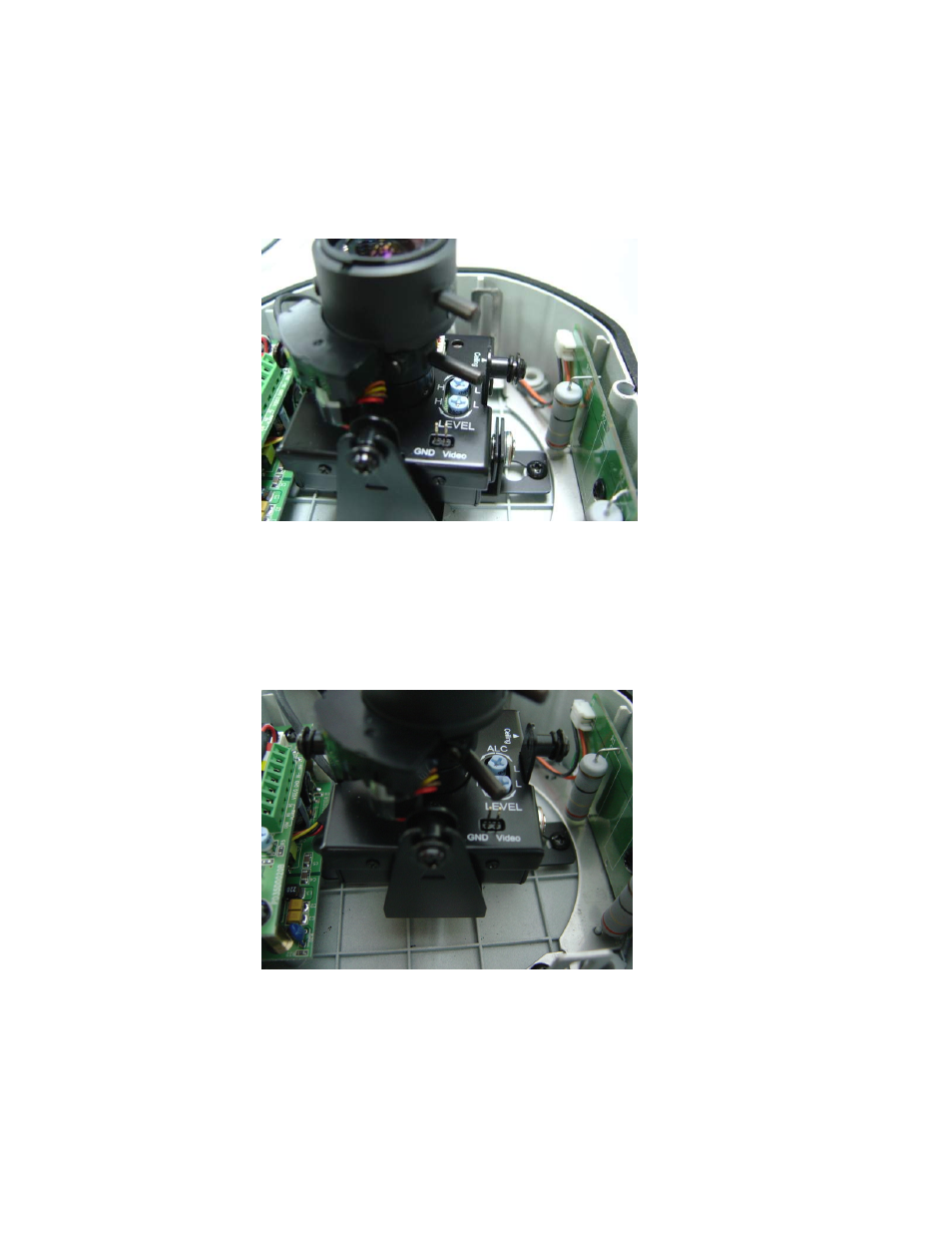

7. Repositioning the adjustment stick (only for 3.6-9mm Vari-focal lens)

a) The default position of adjustment stick is shown as below:

b) While zooming In/Out with the adjustment stick, it may obstruct other adjustments

of Iris Level and Video Output.

c) In this case, you can gently take off the adjustment stick and place it to the other

hole at its right-hand side. This will allow you to adjust zooming function smoothly.
