6

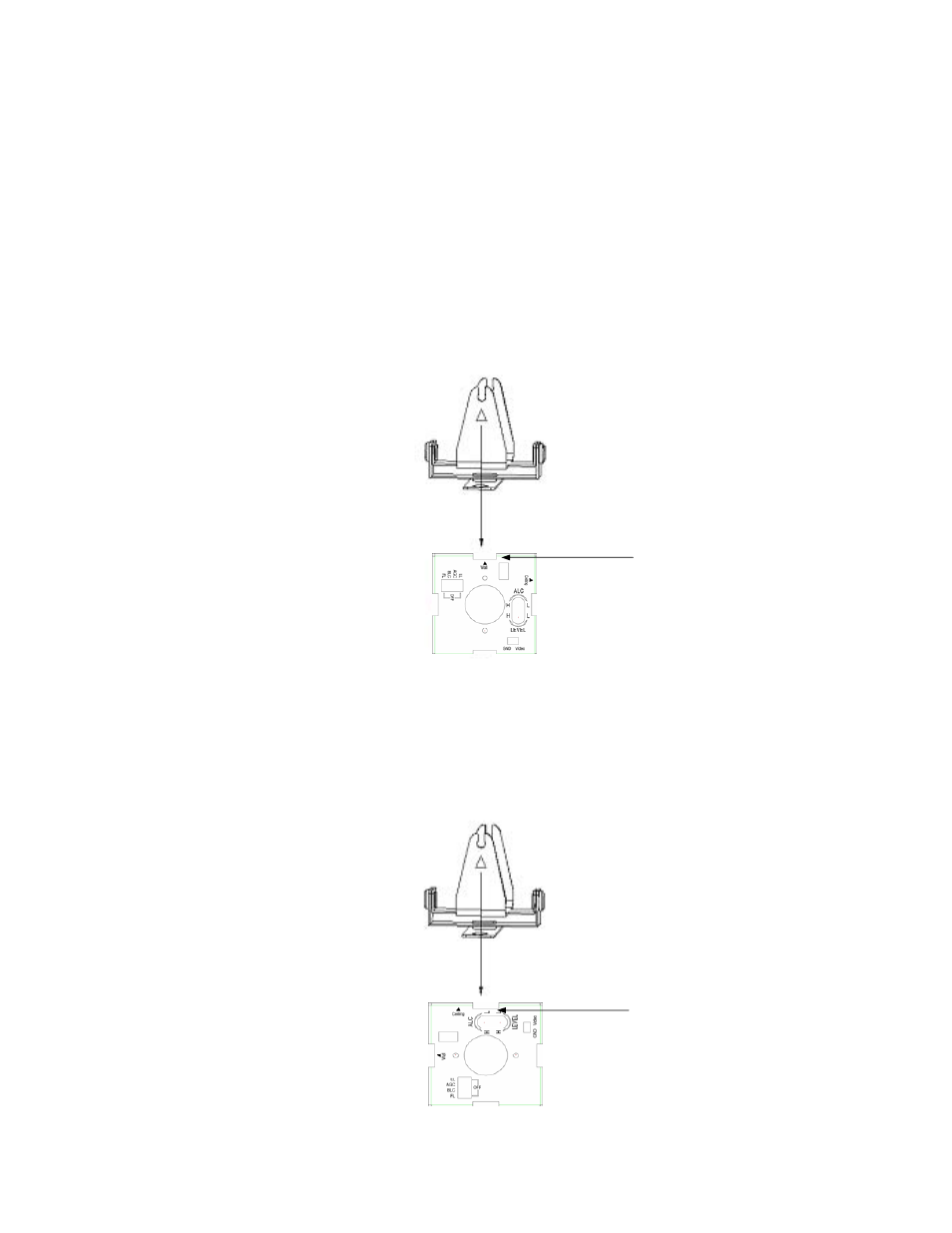

4. Re-assemble Camera

1.

When mounting COLOR RUGGED DOME CAMERA on the wall,

please aim the “Wall” in line with the triangle “S” marked on the

lead frame. (Factory default)

2.

When mounting COLOR RUGGED DOME CAMERA on the ceiling,

please aim the “Ceiling” in line with the triangle “S” marked on the

lead frame.

6

Figure 6-1

“Wall”

“Ceiling”

Figure 6-2
