EverFocus EHD525EX User Manual

Page 4

Power Source

12VDC/24VAC

Power Consumption

24VAC: 6VA max. (Heater OFF)

24VAC: 20.5VA max. (Heater ON)

12VDC: 4W max. (Heater OFF)

12VDC: 11.5W max. (Heater ON)

Dimensions

130mm(W) x 98.8mm(H) x 130mm(D);

5.1"(W) x 3.9"(H) x 5.1"(D)

Weight

1.7kg ; 3.7lbs

Operating Temperature

-40°C~50°C ;- 40°F~122°F (20%~80% Humidity)

Certifications FCC/CE

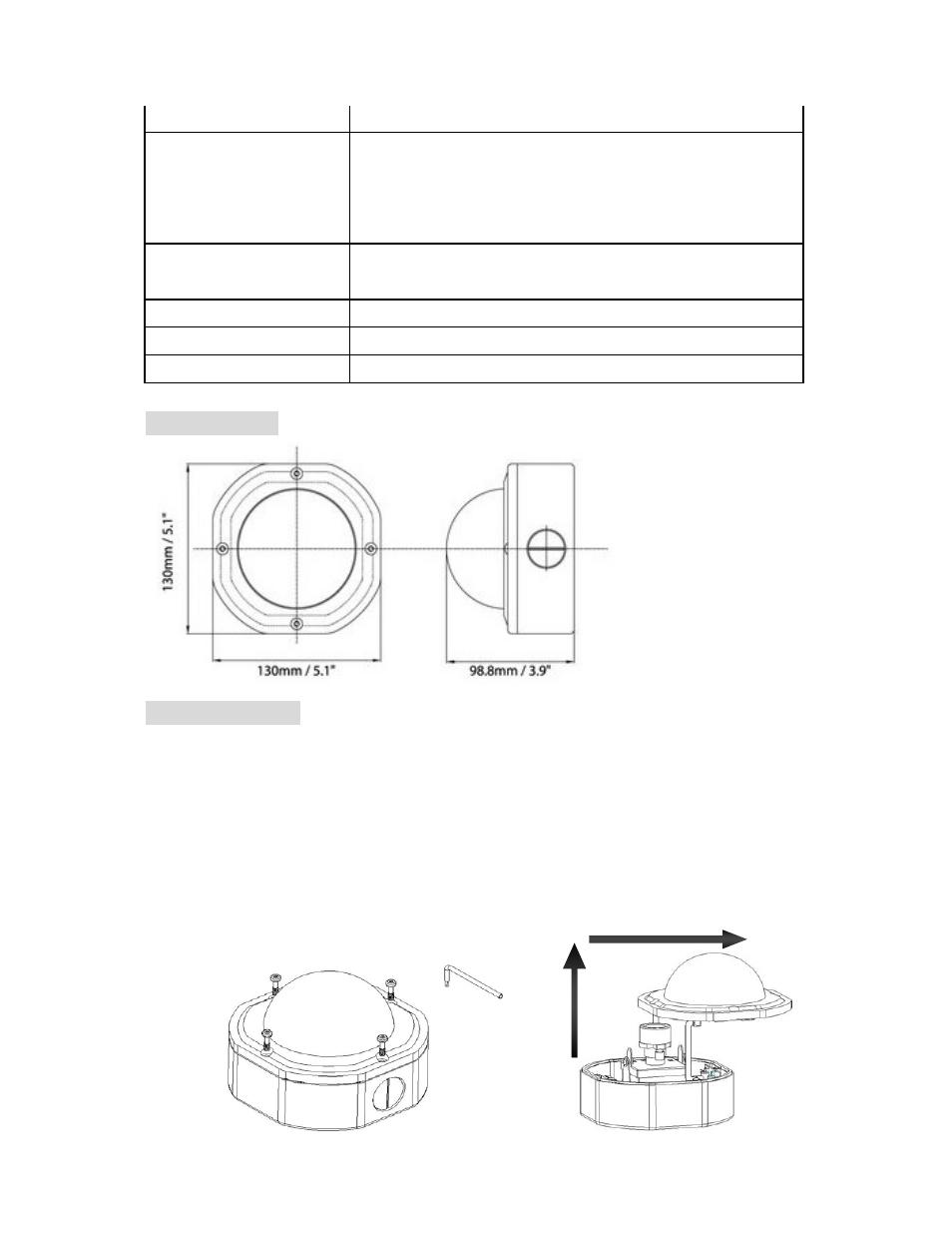

DIMENSIONS

INSTALLATION

1. Loosen the 4 fix screws on the housing cover by using the attached wrench (Figure 1).

Carefully uncap the housing cover as the direction shown below (Figure 2), please pay

attention not to damage the lens. To remove the housing cover, push the hinges to the

bottom of the bracket, the hinges can be easily removed from the bracket.

Figure 2
