Battery knob
DC IN connector
Battery indicator LED
Player ter minals
Alignment pin
DC O UT (N on-standard jack)
Twist it to tighten/detach the battery pack.
Connect the power adapter to recharge.
Supply power to the player.
Do not short-circuit the terminals.
CAU TION:
When the battery is discharging, LED is off.
When recharging the battery, LED is red.
When the LED turns from red to off, it means finishing recharge.
1
PARTS AND FUNCTIONS
2
3
4
5
6
Align the battery to the player when installing it.
Output DC 7.4/7.2V, especially for supplying power to TV Tuner
Box (Optional accessory).

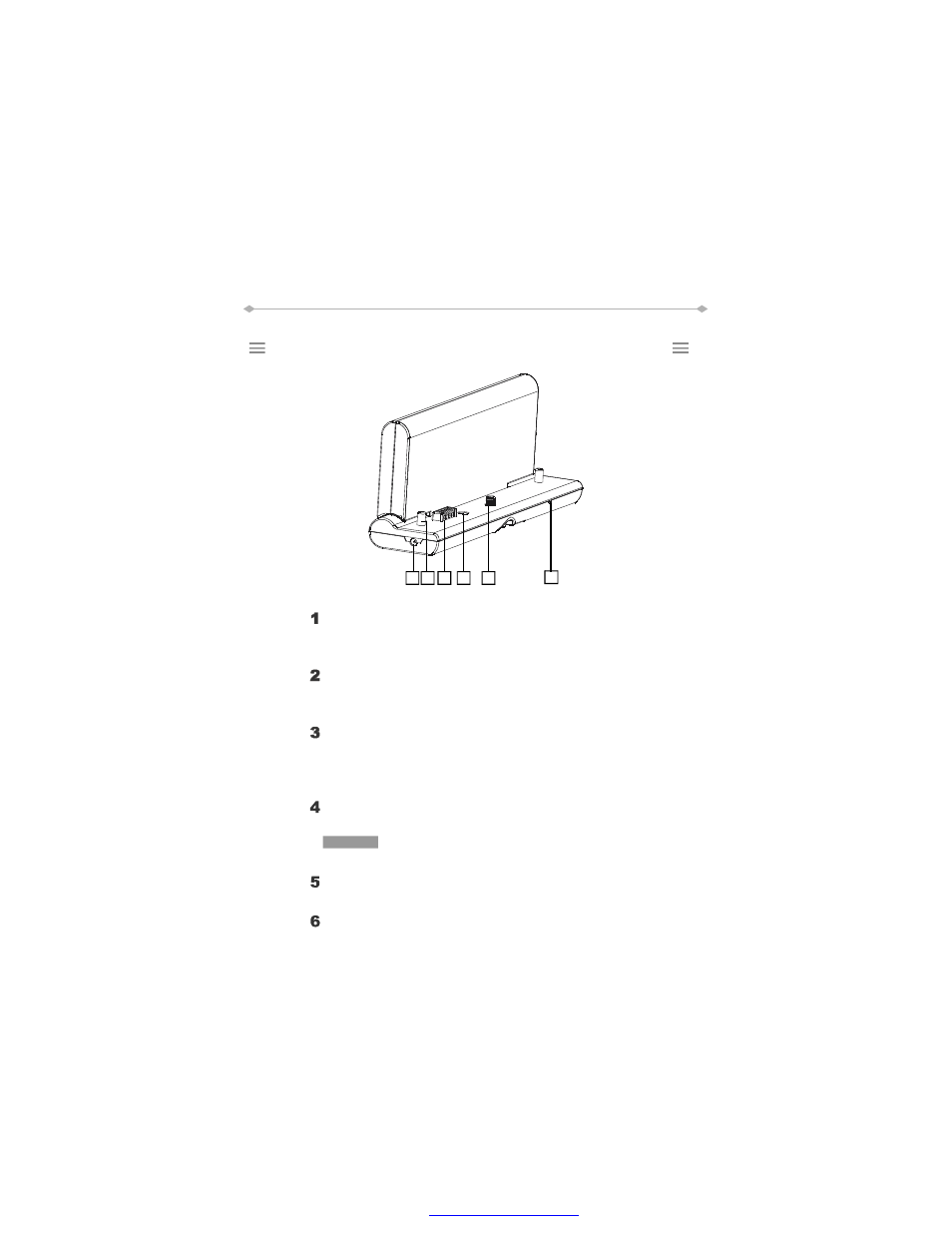

NAMES OF BATTERY PARTS AND THEIR FUNCTIONS
