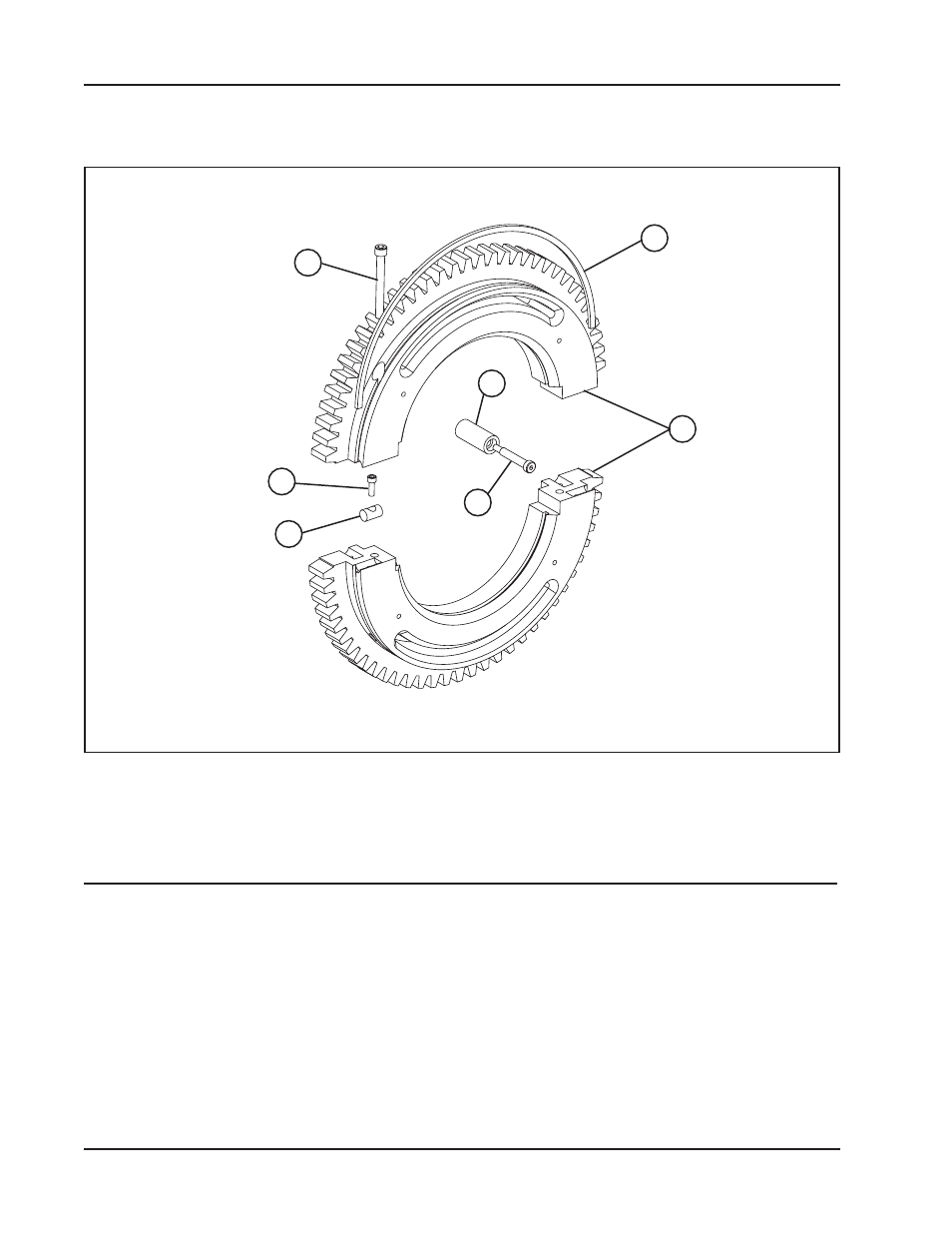

SINGLE POINT SPLIT GEAR ASSEMBLY (P/N 39-0854)
Parts List, Split Gear Assembly, Single Point (P/N 39-0854)
Item Part
No. No. Description Qty
1. 28-0057 SEAL, FELT, .125" X .188" 32"
2. 32-0236 DOWEL PIN, ALIGNMENT 4
3. 33-0020 SCREW, CAP, #8-32 UNC X 1/2" 4
4. 33-0047 SCREW, CAP, 1/4-20 UNC X 2 1/4" 2
5. 39-0851 GEAR, SPLIT 1
6. 44-0643 SPACER 4
7. 33-1059 SCREW, SHOULDER, 1/4 X 1 1/4 4
1
2
3
4
5
7
6
