4

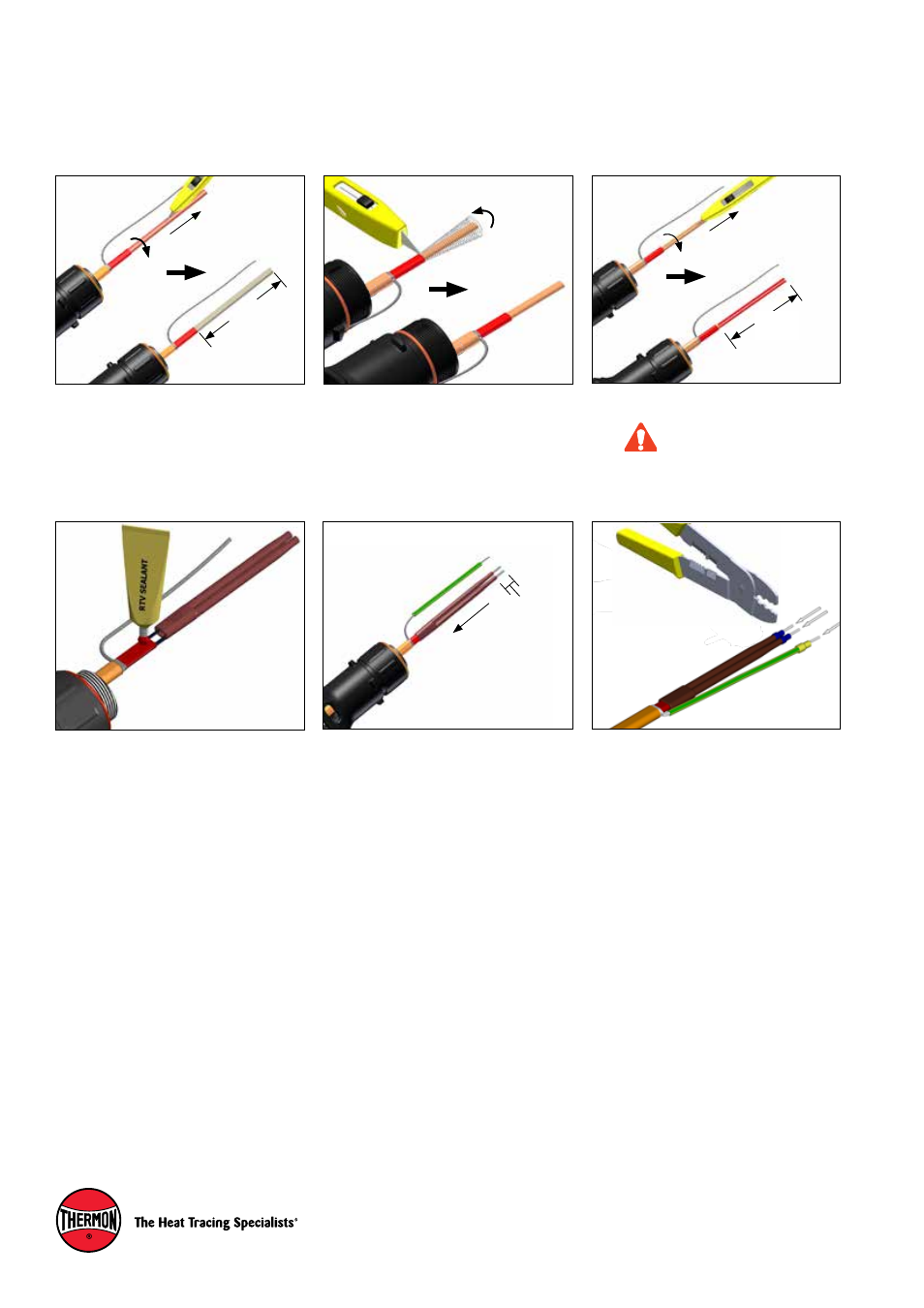

Step 2: Heating Element Removal for HPT and FP Cables
2b.
Cut and remove fiberglass overlay and
heating element. Push any remaining
heating element wire under the primary
insulation jacket.
3a.
Apply RTV sealant to cable to cover dis-
tance of at least 3mm and slide boot onto
the end of the cable.
3b.
Slide boot onto the end of the cable and
green/yellow ground sleeve over twisted
braid. Expose 13mm (0.5”) of bus wire.
2a.
Cut and remove primary insulation jacket.
NOTE: Bus connection must be no more than
50 mm (2”) from pipe as addressed in
connection kit instructions.
2c.
Cut and remove pairing jacket.
Do not cut bus wire insulation.
Step 3: Install Power Boot on Heating Cables
120 mm
(4.75”)
117 mm
(4.62”)
13 mm
(.5”)
3c.
Crimp conductor wire pins on each con-
ductor and on twisted braid if required
as per client/project specification (order
separately).
PETK
INSTALLATION PROCEDURES
