CONNECTION
3
Ed.: 06/01 15

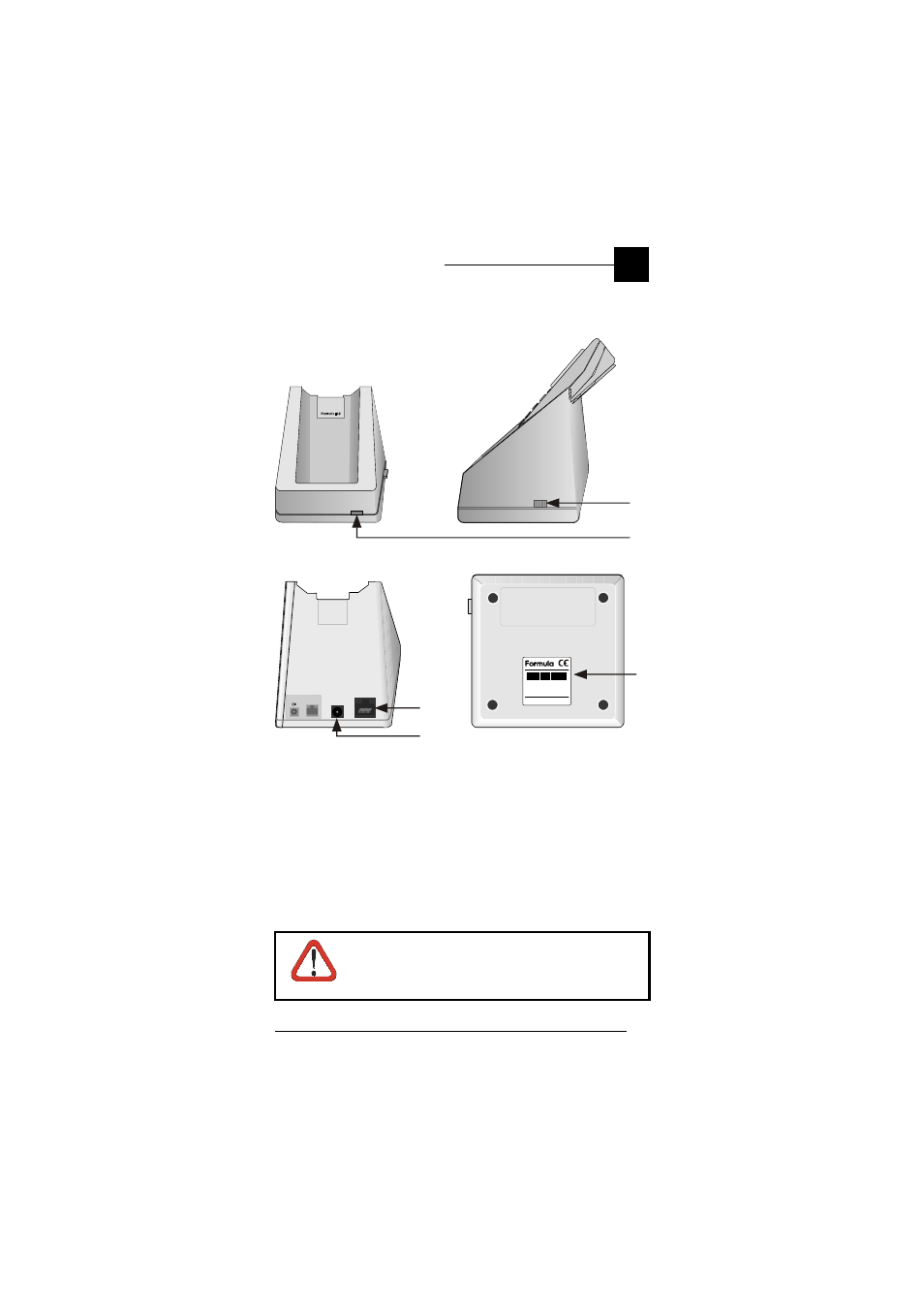

The following figure describes the F952 cradle:
A
B
POWER +9V RS-232 PORT
S/N 2019500252
Mod. F952
Code n. 140901450
Datalogic SpA 99/10
C
D
E
Key:
A)
Cradle on/off switch
B) Two color LED:
Continuous green = F732 terminal not inserted or
charge level being maintained
Continuous red = recharging taking place
C) RJ connector for connection to the host computer
D) Power jack
E) Cradle F952 identification label
CAUTION
The use of cradles other than those
expressly specified may damage the F732
terminal.
