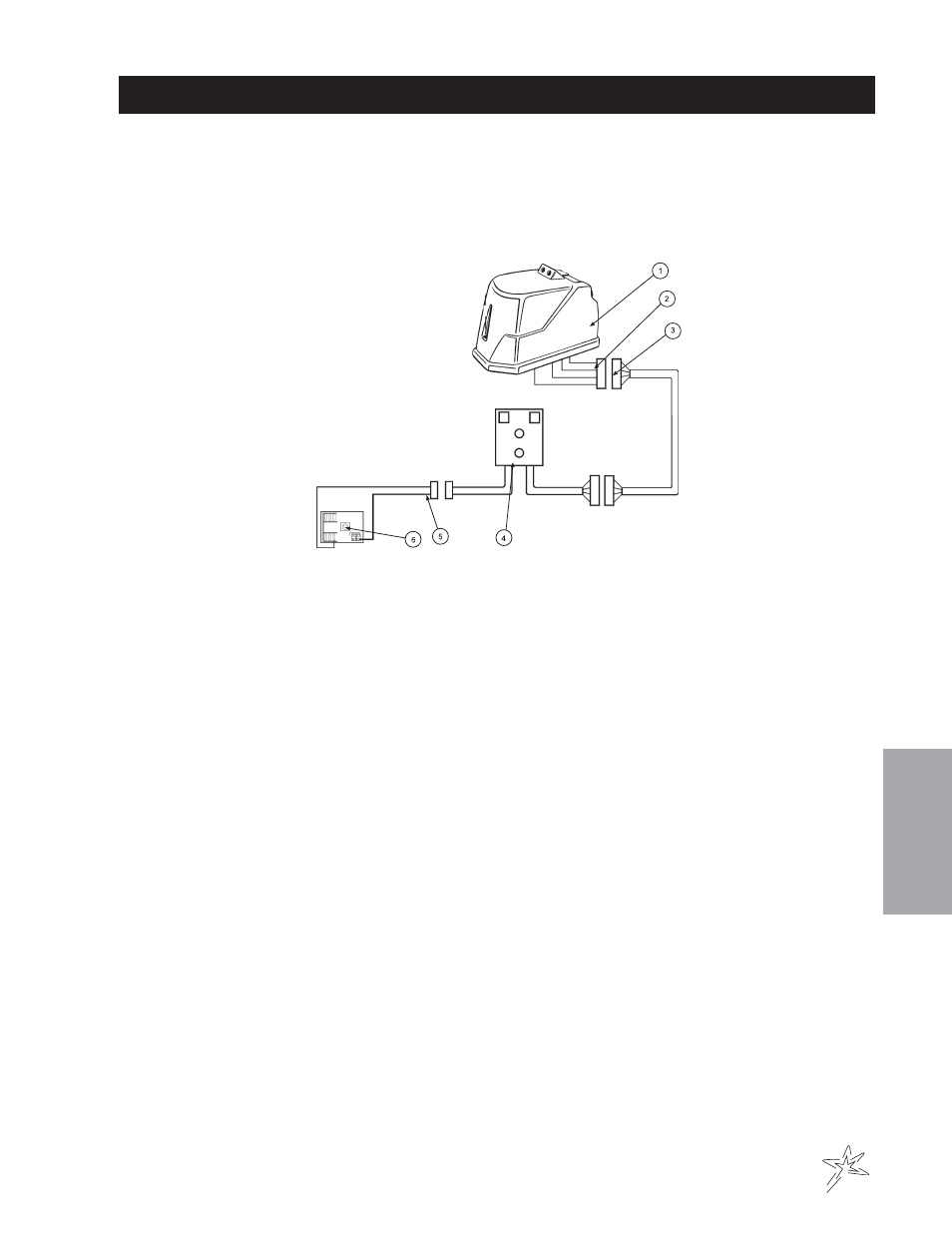

14-283 FOAMER WIRING

REF#

PART#

DESCRIPTION

QUANTITY

1

14-291-03

Compressor

1

2

15-504-04

Wiring Harness

1

3

10-222

Extension Wire

1

4

14-291-05

Switch Box

1

33-508

Fuse

1

15-506-02

Center Switch

1

14-291-14

Outside Switch

1

5

15-509

Power Cable

1

6

33-271

Fuse Block (part

of machine)

1

33-508

Fuse

1
