Accessories

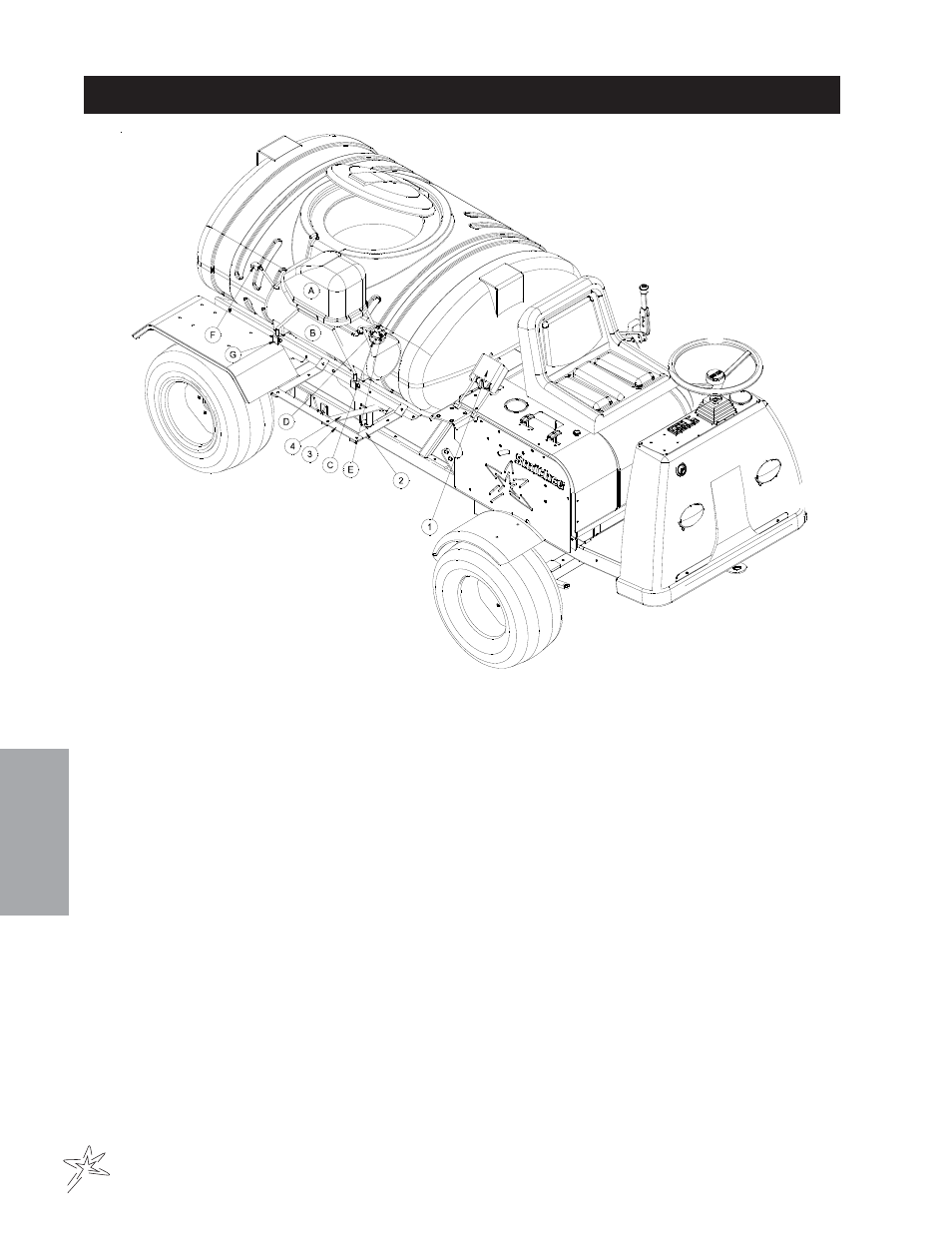

14-283 FOAM MARKER
REF# PART# DESCRIPTION QUANTITY
1* 14-291-05 Double Switch Box 1
33-508 Fuse 1
14-291-14 Outside Switch 1
15-506-02 Center Switch 1
2 HB-516-18-175 Bolt 5 /
16
- 18 x 1 3 /
4 (part of machine) 1
HNTL-516-18 Lock Nut 5 /
16
-18 (part of machine) 1
4 HB-516-18-400 Bolt 5 /
16
- 18 x 4 (part of machine) 1
HNCL-516-18 Center Lock Nut 5 /
16
- 18 (part of machine) 1
5 14-393 Park Brake Bracket (part of machine) 1
6 14-286 Foamer End Bracket 2
7 14-288 Foamer Cross Bar 1
8 14-287 Foamer Center Bracket 1
9 HB-516-18-100 Bolt 5 /
16
- 18 x 1 8
HNFL-516-18 Flange Whiz Lock Nut 5 /
16
- 18 8
A* 14-291-03 Compressor Only 1
14-291-01 Black Cover 1
B* 14-291-02 Foamer Tank 1
C* 14-284-02 Cap Assembly 1
D* Blue Tube 1
E* Clear Tube 1
F* 10-222 Extension Wire 1
G* 14-291-04 Tank Bracket 2
* 14-291 Foamer 1
