Accessories

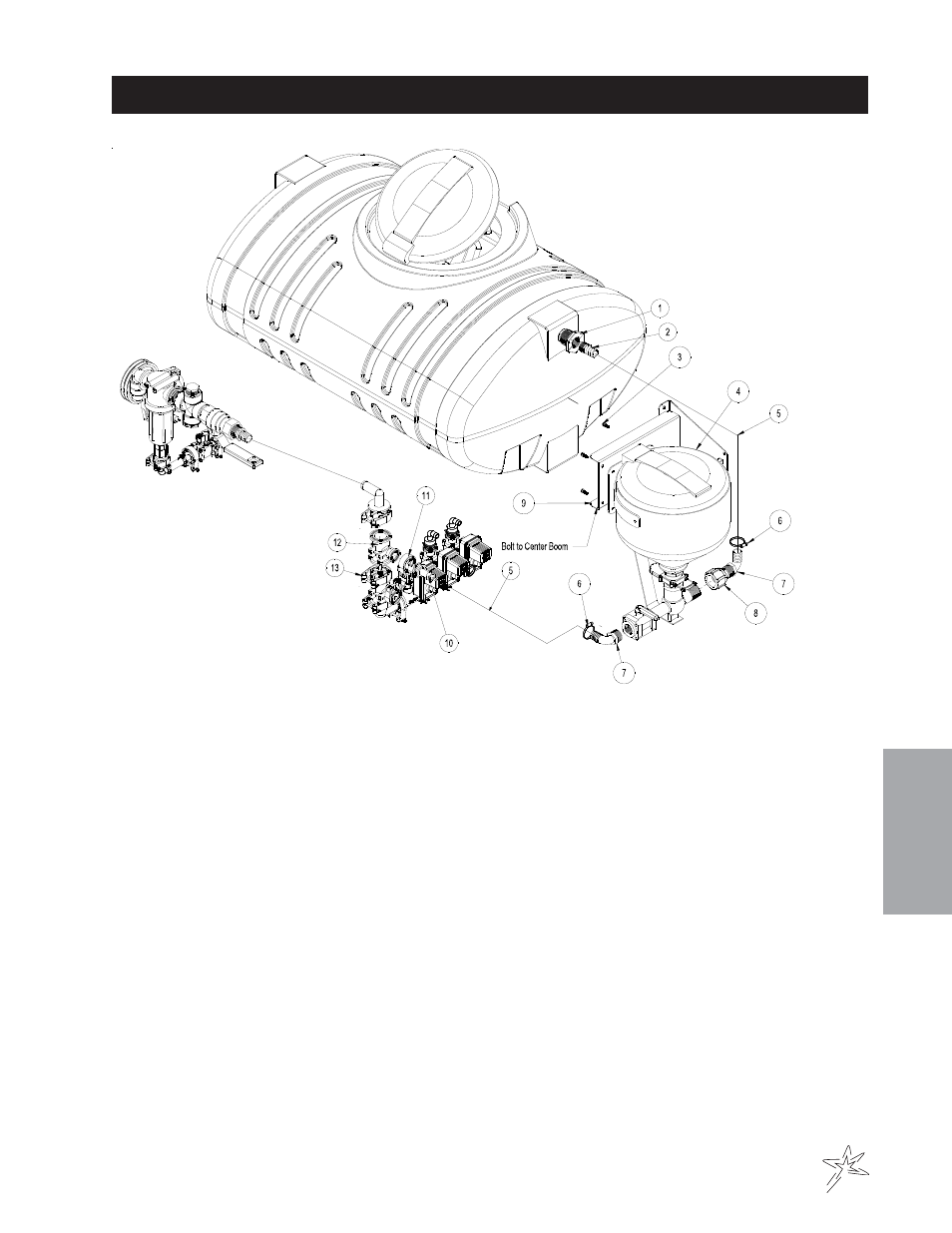

14-602 CHEMICAL CLEANLOAD FOR 1764 SPRAY TRUCK

REF#

PART #

DESCRIPTION

QUANTITY

1

16-945

Bulk Head Fitting

1

2

16-159

Hose Barb

2

3

HBFL-516-18-075

Flange Bolt

5

/

16

-18 x

3

/

4

4

HNFL-516-18

Flange Lock Nut

5

/

16

-18

4

4

15-620

Cleanload Eductor

1

5

8897-36

1

1

/

4

Discharge Hose x 36"

2

6

18-116

Hose Clamps

4

7

16-156

90° Hose Barb

3

8

18-391

Reducer Coupling

1

9

17-535

Cleanload Mount

(part of boom)

1

10

15-870

Hose Barb

1

11

15-740

#50 Clamp

1

12

15-775

Reducer Tee

1

13

51-741

#75 Clamp

1
