82
Accessories

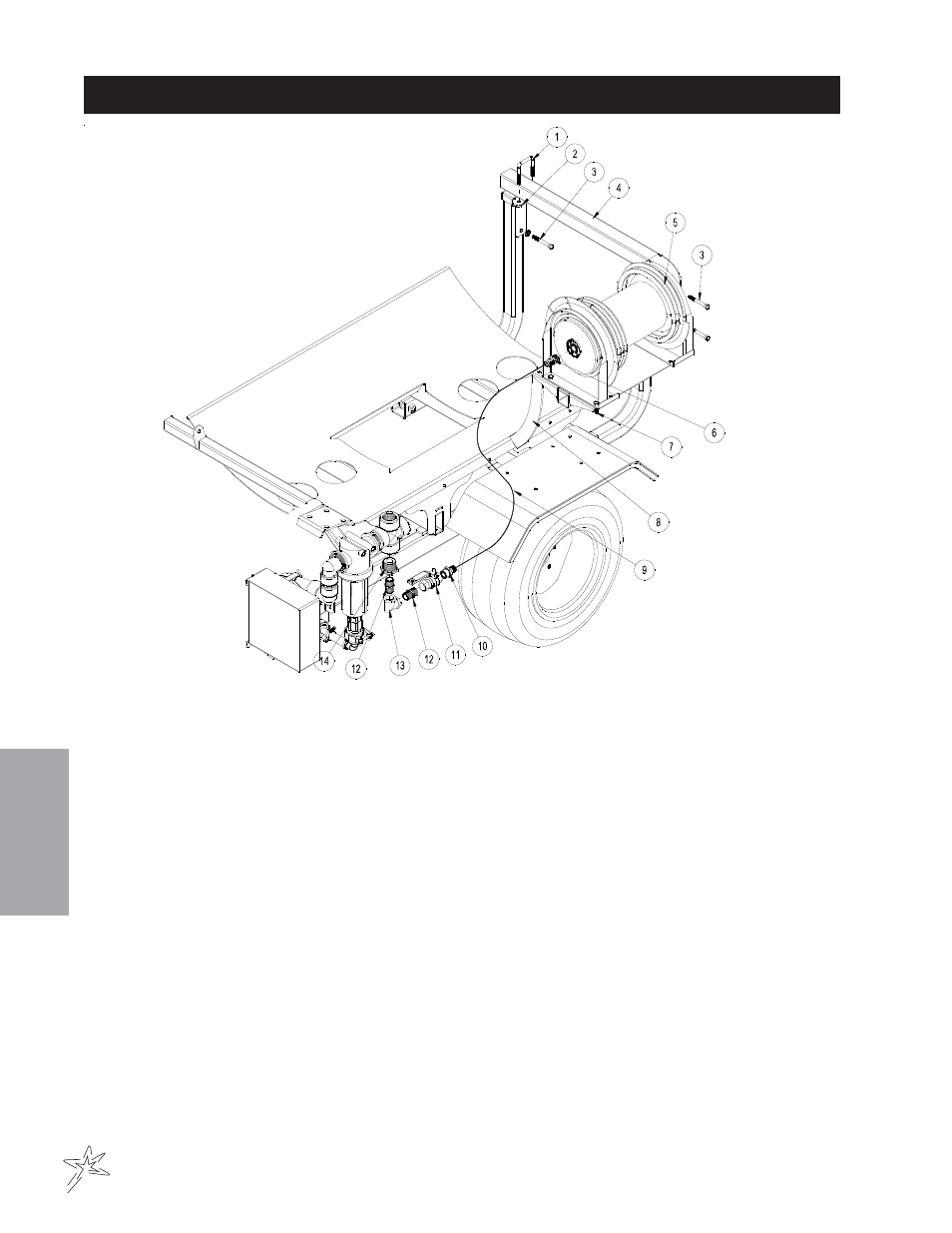

14-603 HOSE REEL MOUNT
REF# PART# DESCRIPTION QUANTITY
1 17-537 Square U-bolts 2
2 15-840 Mount Brackets 2
3 HB-38-16-300 Bolt 3 /
8
- 16 x 3 4
HNTL-38-16 Lock Nut 3 /
8
- 16 4
HW-38 Washer 3 /
8
4
4 15-841 Reel Platform 1
5 16-906 Electric Hose Reel 1
16-129 Manual Hose Reel 1
6 18-249 Brass Fitting 3 /
4
MPT x 3 /
4
HB 1
7 HB-516-18-100 Bolt 5 /
16
- 18 x 1 4
HNTL-516-18 Lock Nut 5 /
16
- 18 4
8 14-542 Support Bracket 1
HB-14-20-100 Bolt 1 /
4
-20 x 1 1
9 8887-24 Orange PVC Hose 3 /
4
1
18-040 Hose Clamp 2
10 16-154 Fitting 3 /
4
MPT x 3 /
4
HB 1
11 16-859 Ball Valve 3 /
4
Brass 1
12 16-158 Close Nipple 3 /
4
2
13 16-151 Elbow F.P.T. 3 /
4
x 3 /
4
1
14 18-388 Reducer 1
