Smart Avi Net-IP-Pro - Manual (Page 10)

10 © 2013 SmartAVI, Inc.

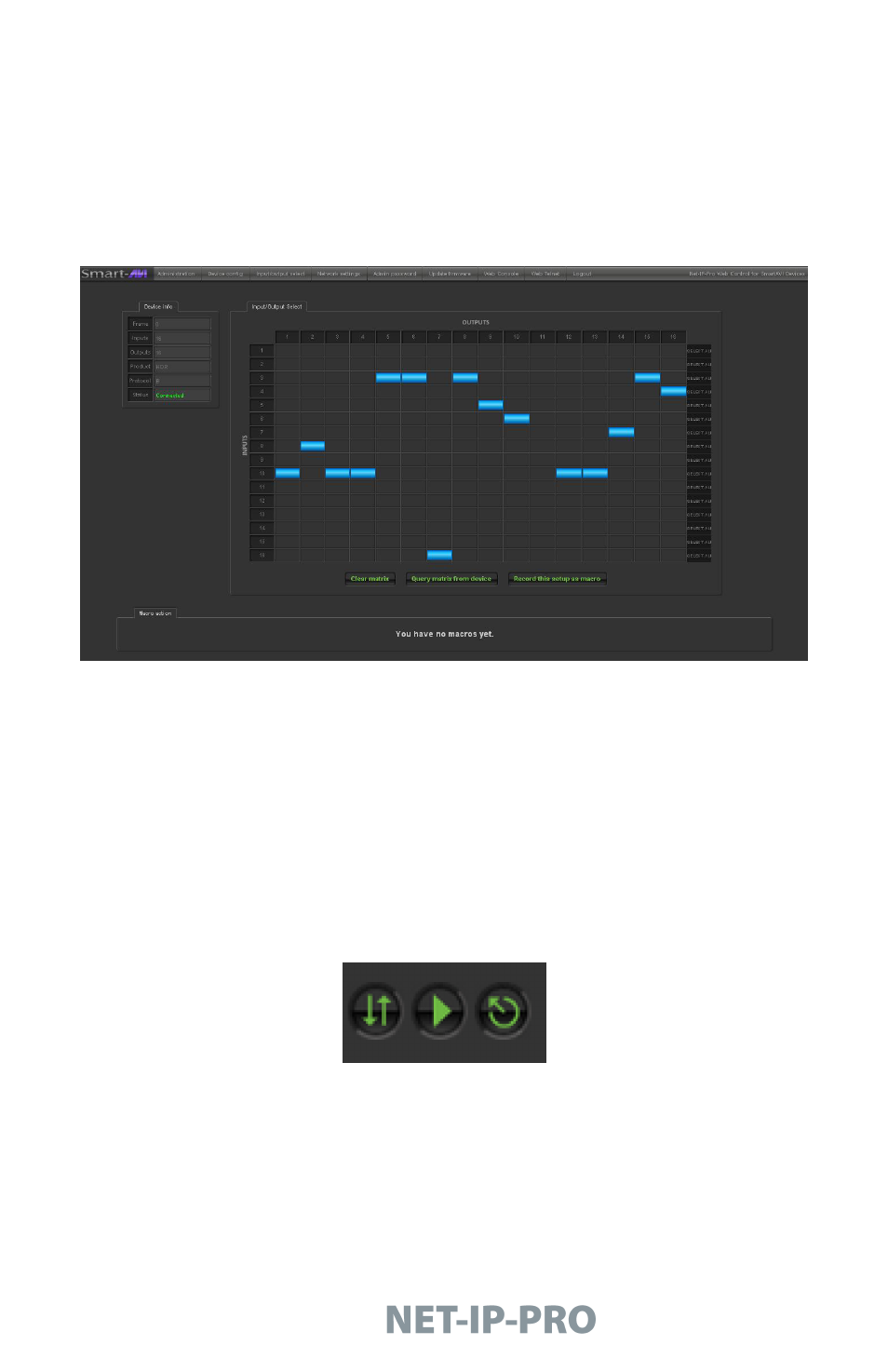

1. Click on the matrix window to set a crosspoint; set as
many crosspoints as needed. This will instantly set the
input to the corresponding output as indicated in the matrix.
2. Click on “record this setup as macro”
3. A new item will appear below the matrix under the
“macro action” tab with a default name.
4. To set all this newly saved crosspoint configuration
again in the future with the click of a button, click the cen-
ter button.
5. To rename the configuration to something more famil-
iar, simply type the new name in the text field and click
the up/down arrows to save the name. To delete the item
click the delete button.
CONTROLLING THE NET-IP-PRO VIA HTTP
